MichalP

USB Expansion card from Opencockpits - what capacitors?

Recommended Posts

Hello,

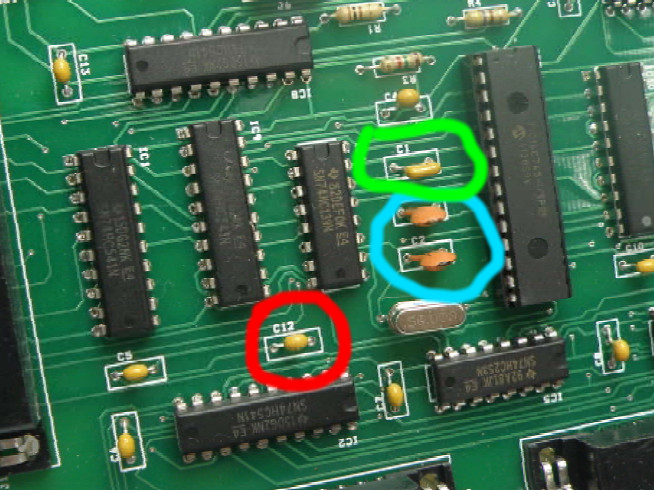

I am trying to make by myself USB Expansion card from Opencockpits. Can somebody tell me what capacitos are there.






Blue is ceramic 22pF.



Green is 220nF - it is ceramic, but a liitle bigger then blue, so what kind of ceramic capacitor it is?



And most important question: red - 0.1mF = 100uF. Is it tantalum capacitor?



***



Can You send me some pictures of your usb expansion cards, where there will'be those capacitors?



Thanks,



Michal Pierzchala
