Hi,

I have bought this plugin for training purposes. My wife is getting the HEMS crew course soon and the helicopters here are using the GTN750 for navigation.

I want her to get in touch with it ahead of the official training and so I bought this plugin. It is amazing of course, we love it.

Thing is, I'm trying to integrate it on a modified version I have made of the EC145 (real deal). I have both screens showing on the 3D Cockpit, but the touchscreens are not working. I cannot click on the screen while on 3D view with mouse. Popouts are working perfectly.

What I'm doing wrong?

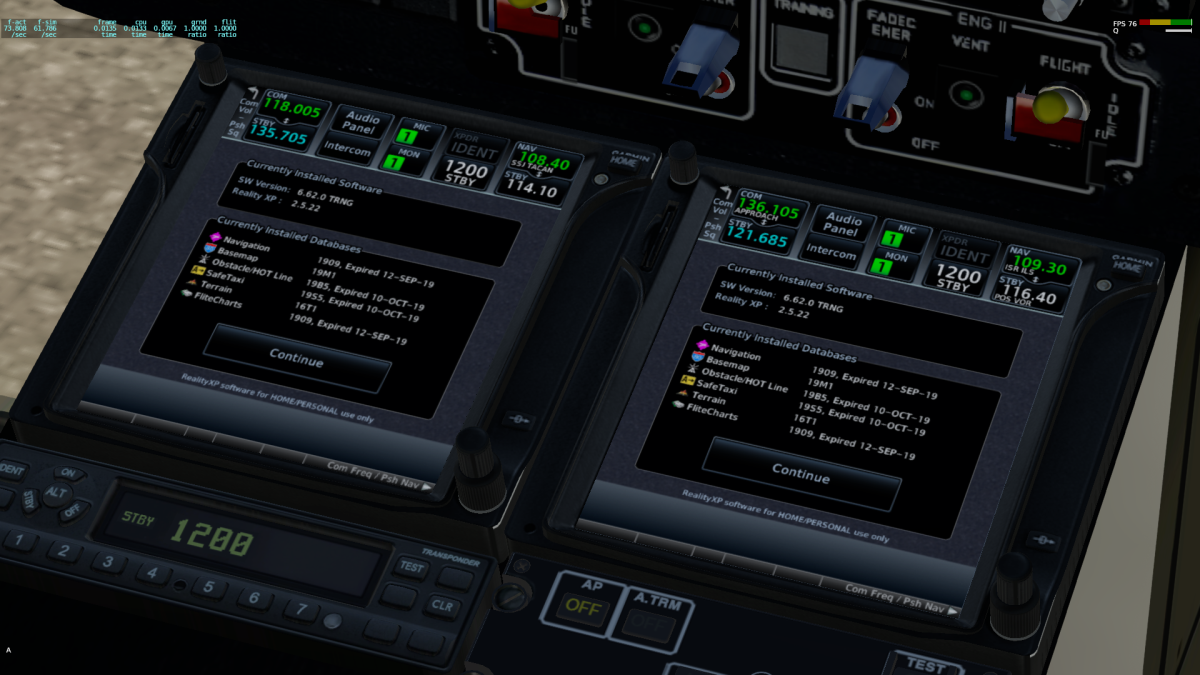

Picture of the integration:

This is the config file RealityXP.GTN.ini:

Spoiler

[GTN]
; comma separated list of gauges
gauges = GTN_750_1, GTN_750_2

[GTN_750_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2
NavDbType = 1
; connects to: 'PFC_GTN' or any '#PID' (#D067 for PFC_GTN)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GTN_750_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1090,1060,830,790
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,790,830,790
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false
; auto hide in external view if true.
autohide = false

[GTN_750_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 835,1858,408,473
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = TOUCHSCREEN
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GTN_750_2]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = false
; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2
NavDbType = 1
; connects to: 'PFC_GTN' or any '#PID' (#D067 for PFC_GTN)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GTN_750_2.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1090,1060,830,790
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,790,830,790
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false
; auto hide in external view if true.
autohide = false

[GTN_750_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 457,1807,364,422
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = TOUCHSCREEN
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

I have tried:

Changing PANELS to PANEL3D and changing usemouse = true for TOUCHSCREEN as I have seen on some configs. None of them is working. FYI, this helicopter is not using any custom plugin.

May I get some help please?

Thanks in advance.

Regards

Edited February 11, 20206 yr by Tisor

As I cannot delete the topic I'll give the answer myself, in case it could be of help for someone:

I was missing the Manipulator Type: Panel on the 3D Model screens in AC3D, so now they are working perfectly.

Sorry for the post.
