Cant click over the GTN on the panel in VR .

Featured Replies

Hi.

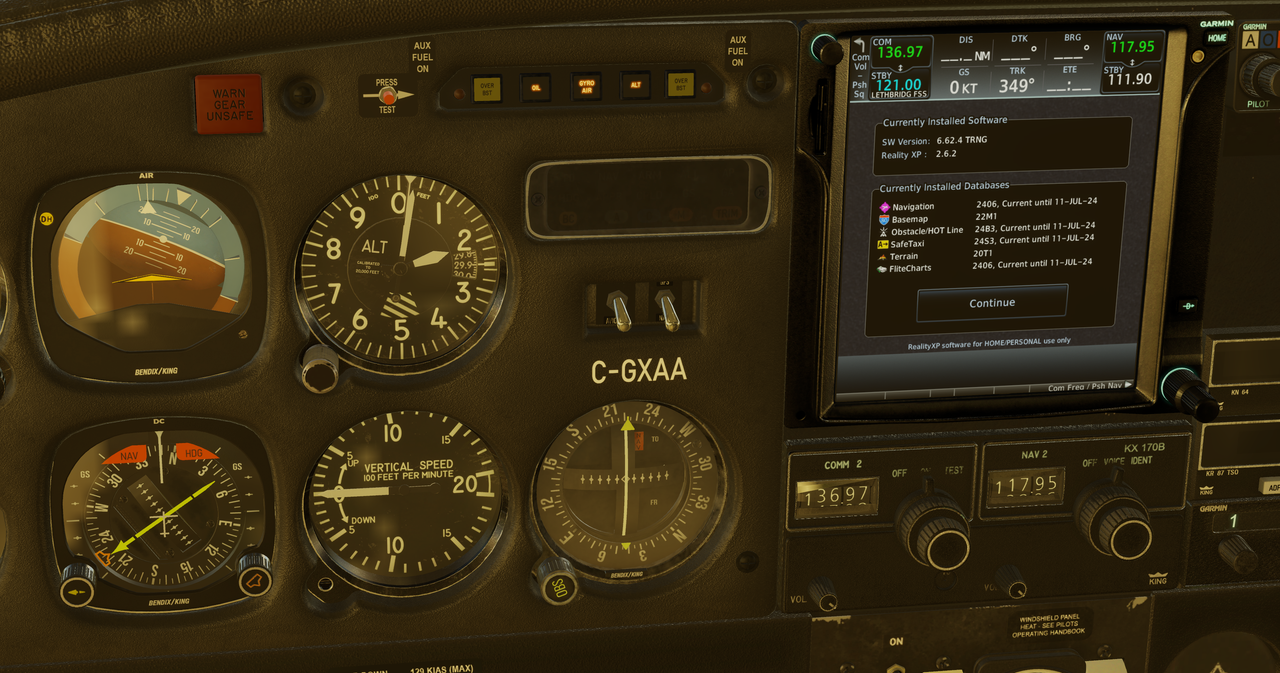

The GTN 750 screen is showed without a problem in the 3D panel and in VR, but when I tried to click over the GTN screen on the panel in VR is not working, only show an arrow and not the hand.

If I make the pop-up windows appears, I can click over that pop-up and work perfectly and the changes is showed on the panel too, but I cant click over the screen in the panel.

My GTN.ini

[GTN]
; comma separated list of gauges
gauges = GTN_750_1

[GTN_750_1]
; comma separated list of read only settings.
locked = MasterDevice, NavDbType, HardwareDevice, HardwareIdx, LinkCrs, LinkObs, AutoNavGps, UseAudioPanel, UseTransponder, AutoGpsSource, AutoNavSource, AutoSavePln, LinkSimGps, LinkOto, LinkHsi, LinkVor, CopilotSide, AutoCdiSrc, RadiosPair, ComputerTime, CdiScale, GsiScale, UseAirData, UseFuelData, UseRyanTcad, RyanTcadVolume, UseTcadAiCount, UseFailures, VFRmode, VFRcode, PowerSource, OwnshipIcon, FuelType, TawsMode, TawsSurface, TawsMinLength, TawsApprSpeed, TawsFlapSpeed, TawsGearSpeed, ReduceRate, Rheostat.Display, Rheostat.Buttons, VoicePref, MasterVolume, NoAudioFocus, CpuAffinity, AFMS.cdi_key, AFMS.sel_crs_gps, AFMS.sel_crs_vloc, AFMS.v_flag_declutter, AFMS.gps_selected, AFMS.auto_nav_appr, AFMS.airspace_labels, AFMS.mark_on_target, AFMS.rf_procedure_legs, AFMS.vnav_enabled, AFMS.vnav_trans_to_appr, AFMS.vnav_vdi_scale_factor, AFMS.vnav_trans_altitude
; comma separated list of render targets.
drawto = WINDOW, PANEL3D
; is the master device if true.
MasterDevice = true
; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2
NavDbType = 1
; connects to: 'PFC_GTN' or any '#PID' (#D067 for PFC_GTN)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1
LinkCrs = true
LinkObs = true
AutoNavGps = false
UseAudioPanel = false
UseTransponder = false
AutoGpsSource = 1
AutoNavSource = 1
AutoSavePln = true
LinkSimGps = true
UseTcadAiCount = false
UseFailures = true
VoicePref = MALE

[GTN_750_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 0,354,300,354
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; display as popout window if true (requires XP11.1).
undocked = false
; auto hide in external view if true.
autohide = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,354,300,354

[GTN_750_1.PANEL3D]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1220,2047,827,1023
;frame.rect = 1220,2047,827,1023
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
