X-plane route generation glitch?

[gamergotgames 0]

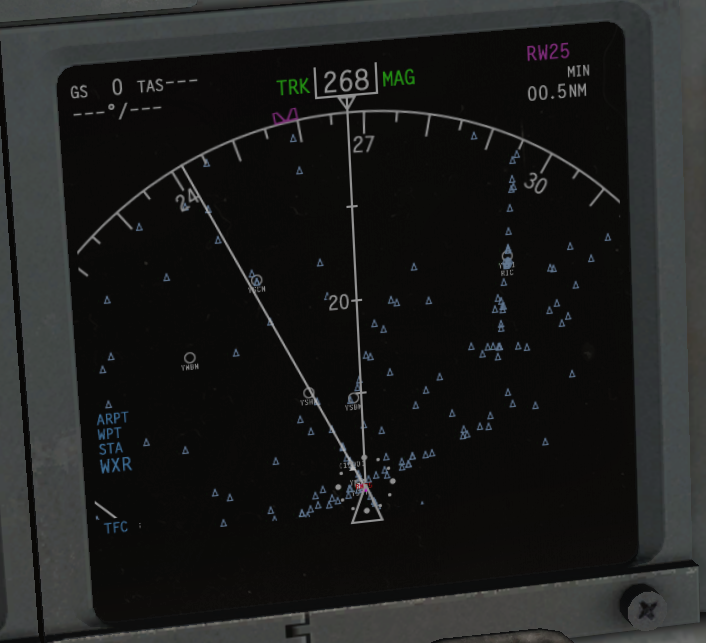

I made a route (YSSY-YMML) on the latest version of Littlenavmap, using SID 25 for departure and STAR 16 for arrival at Melbourne. When I import it to X-plane, the second waypoint is a vector a long distance away from the route, and is not connected with the rest of the flight plan. I'm not sure what's wrong and I'ts anying me that I need to make a manual departure.

[albar965 1,040]

Can you post the whole LNMPLN? I'd like to have a look at this. Maybe a bug in LNM or X-Plane.

Alex

[gamergotgames 0]

How do I do that?

[albar965 1,040]

2 hours ago, gamergotgames said:

How do I do that?

Alex

[gamergotgames 0]

<?xml version="1.0" encoding="UTF-8"?>
<LittleNavmap xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="https://www.littlenavmap.org/schema/lnmpln.xsd">
  <Flightplan>
    <Header>
      <FlightplanType>IFR</FlightplanType>
      <CruisingAlt>35000</CruisingAlt>
      <CreationDate>2021-10-31T17:47:15-04:00</CreationDate>
      <FileVersion>1.1</FileVersion>
      <ProgramName>Little Navmap</ProgramName>
      <ProgramVersion>2.6.17</ProgramVersion>
      <Documentation>https://www.littlenavmap.org/lnmpln.html</Documentation>
    </Header>
    <SimData Cycle="1802">XP11</SimData>
    <NavData Cycle="1801">NAVIGRAPH</NavData>
    <Departure>
      <Pos Lon="151.171585" Lat="-33.929348" Alt="20.00"/>
      <Start>16R</Start>
      <Type>Runway</Type>
      <Heading>167.851</Heading>
    </Departure>
    <Procedures>
      <SID>
        <Name>SY1</Name>
        <Runway>25</Runway>
      </SID>
      <Approach>
        <Name>FF16</Name>
        <ARINC>I16-Z</ARINC>
        <Runway>16</Runway>
        <Type>ILS</Type>
        <Suffix>Z</Suffix>
      </Approach>
    </Procedures>
    <Waypoints>
      <Waypoint>
        <Name>Sydney Kingsford Smith Intl</Name>
        <Ident>YSSY</Ident>
        <Type>AIRPORT</Type>
        <Pos Lon="151.177216" Lat="-33.946110" Alt="20.00"/>
      </Waypoint>
      <Waypoint>
        <Ident>HOOKS</Ident>
        <Region>YM</Region>
        <Type>WAYPOINT</Type>
        <Pos Lon="151.132782" Lat="-34.350327" Alt="11778.40"/>
      </Waypoint>
      <Waypoint>
        <Name>Wollongong</Name>
        <Ident>WOL</Ident>
        <Region>YM</Region>
        <Airway>Q15</Airway>
        <Type>NDB</Type>
        <Pos Lon="150.790985" Lat="-34.557930" Alt="19914.70"/>
      </Waypoint>
      <Waypoint>
        <Ident>RAZZI</Ident>
        <Region>YM</Region>
        <Airway>H65</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="149.960358" Lat="-35.054192" Alt="35000.00"/>
      </Waypoint>
      <Waypoint>
        <Name>Canberra</Name>
        <Ident>CB</Ident>
        <Region>YM</Region>
        <Airway>H65</Airway>
        <Type>VOR</Type>
        <Pos Lon="149.195724" Lat="-35.281445" Alt="35000.00"/>
      </Waypoint>
      <Waypoint>
        <Ident>TANTA</Ident>
        <Region>YM</Region>
        <Airway>UQ215</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="148.531738" Lat="-35.880676" Alt="35000.00"/>
      </Waypoint>
      <Waypoint>
        <Ident>RUMIE</Ident>
        <Region>YM</Region>
        <Airway>Q29</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="147.728485" Lat="-36.329815" Alt="35000.00"/>
      </Waypoint>
      <Waypoint>
        <Ident>NABBA</Ident>
        <Region>YM</Region>
        <Airway>Q29</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="147.042053" Lat="-36.705334" Alt="35000.00"/>
      </Waypoint>
      <Waypoint>
        <Ident>BULLA</Ident>
        <Region>YM</Region>
        <Airway>Q29</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="146.347122" Lat="-37.077805" Alt="33615.96"/>
      </Waypoint>
      <Waypoint>
        <Ident>TAREX</Ident>
        <Region>YM</Region>
        <Airway>Q29</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="145.914200" Lat="-37.305962" Alt="24635.18"/>
      </Waypoint>
      <Waypoint>
        <Ident>LIZZI</Ident>
        <Region>YM</Region>
        <Airway>Q29</Airway>
        <Type>WAYPOINT</Type>
        <Pos Lon="145.638062" Lat="-37.450554" Alt="18927.89"/>
      </Waypoint>
      <Waypoint>
        <Ident>KOUTA</Ident>
        <Region>YM</Region>
        <Type>WAYPOINT</Type>
        <Pos Lon="145.181671" Lat="-37.465000" Alt="11053.46"/>
      </Waypoint>
      <Waypoint>
        <Name>Melbourne Intl</Name>
        <Ident>YMML</Ident>
        <Type>AIRPORT</Type>
        <Pos Lon="144.843338" Lat="-37.673332" Alt="433.00"/>
      </Waypoint>
    </Waypoints>
  </Flightplan>
</LittleNavmap>

[albar965 1,040]

Thank you! Perfect.

I just checked the plan and see no issue. The manual legs are also shown as a long line in the G1000. This looks strange but is normal. You have to adhere to ATC instructions from there until they get you back on route. In the sim I usually do a direct to the next waypoint (flying without ATC).

Edit: The peculiarities of some procedure legs are explained in this chapter: https://www.littlenavmap.org/manuals/littlenavmap/release/2.6/en/APPROACHES.html

Hope this helps.

Alex

Edited November 7, 2021 by albar965
Link

[gamergotgames 0]

Thank you very much!
