In this attachment the W45 airway was identified by opus but it's not a waypoint, in addition the X and H airways across China can not been distinguished by Opus



Hope you guys can solve this issue soon



thanks





Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

At the moment all airways must have an entry and exit point specified in the flight plan so you must edit the plan and declare the points.

Stephen

Your plan needs an intersect point to declare the exit point for one airway and the entry point for the next airway. I will be seeing if I can auto select the intersect point in future.

Stephen

Share this post


Link to post
Share on other sites

At the moment all airways must have an entry and exit point specified in the flight plan so you must edit the plan and declare the points.

Stephen

Your plan needs an intersect point to declare the exit point for one airway and the entry point for the next airway. I will be seeing if I can auto select the intersect point in future.

Stephen

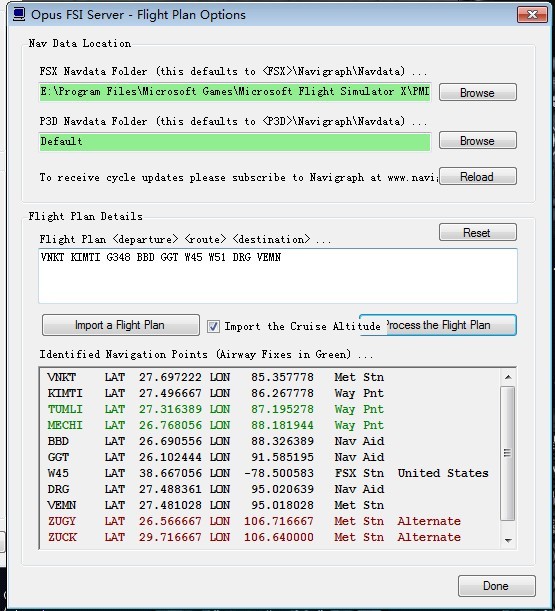

the above picture is the test to see

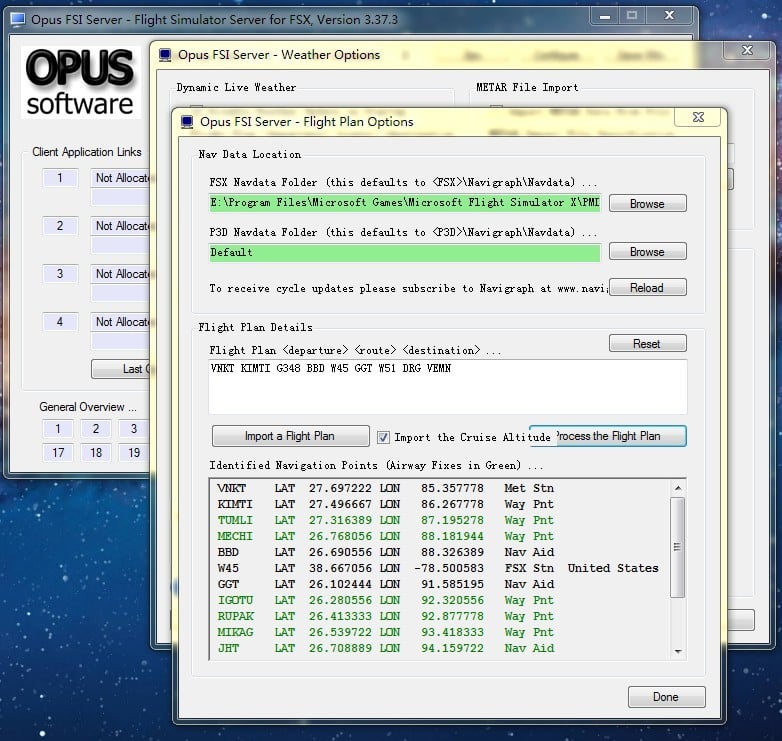

here is an actual FP






Share this post


Link to post
Share on other sites

I will check to see if W45 is included in my default Nav data. Have you checked your Navigraph data to see if is included in the airways list and whether BBD and GGT are listed as navigation points within the airway.



Stephen

Share this post


Link to post
Share on other sites

In my Navigraph data I only have the following Airways for that part of the globe listed ...



A,W45,2
S,LLK,26.762195,80.880472,BODOG,26.026944,83.581945,0,106,151.74
S,BODOG,26.026944,83.581945,PPT,25.590417,85.089917,108,108,85.56



A,W45,2
S,PPT,25.590417,85.089917,BODOG,26.026944,83.581945,108,0,85.56
S,BODOG,26.026944,83.581945,LLK,26.762195,80.880472,108,108,151.74



Hence the Airway A45 has three defined navigation points ...



LLK - BODOG - PPT



The full listing of all A45 Airways in my navdata is as follows ...



A,W45,3
S,KWJ,35.119444,126.814167,VENUS,35.125000,127.582222,0,96,37.69
S,VENUS,35.125000,127.582222,AMICK,35.125278,128.497778,98,96,44.93
S,AMICK,35.125278,128.497778,PSN,35.122500,128.999445,96,96,24.62



A,W45,6
S,SGR,-16.441647,-39.082472,GAXAM,-16.815333,-39.658500,0,259,39.99
S,GAXAM,-16.815333,-39.658500,DADNA,-17.542333,-40.793833,259,259,78.34
S,DADNA,-17.542333,-40.793833,OPLUT,-18.860667,-42.903500,259,260,143.92
S,OPLUT,-18.860667,-42.903500,ANLES,-19.189333,-43.440000,260,260,36.26
S,ANLES,-19.189333,-43.440000,CNF,-19.558214,-44.048514,260,260,40.94
S,CNF,-19.558214,-44.048514,BHZ,-19.835770,-44.003564,260,193,16.85



A,W45,5
S,RDE,-23.891000,-46.528167,NEROK,-24.324667,-46.745833,215,224,28.62
S,NEROK,-24.324667,-46.745833,PETRI,-24.802500,-46.987834,224,224,31.56
S,PETRI,-24.802500,-46.987834,VUKUS,-25.913356,-47.558725,224,224,73.48
S,VUKUS,-25.913356,-47.558725,TUVAM,-27.163833,-48.215833,224,224,82.90
S,TUVAM,-27.163833,-48.215833,FLN,-27.669917,-48.540453,224,228,34.94



A,W45,2
S,LRS,11.944667,-66.671250,VARGA,11.245556,-66.595278,0,186,42.18
S,VARGA,11.245556,-66.595278,JUREL,10.969750,-66.567028,185,186,16.63



A,W45,2
S,VVC,4.066944,-73.382222,VIDAL,4.316667,-73.355556,0,13,15.07
S,VIDAL,4.316667,-73.355556,MIGAN,4.723056,-73.311945,13,13,24.52



A,W45,1
S,DENER,15.456667,-25.692222,SVT,16.829156,-25.064625,0,35,89.94



A,W45,3
S,DOSON,73.517500,80.380000,PESIK,75.650833,91.498889,0,19,218.15
S,PESIK,75.650833,91.498889,USATO,76.200833,99.049722,33,43,114.91
S,USATO,76.200833,99.049722,MELUS,77.717778,104.233333,43,16,114.84



A,W45,5
S,SPL,43.496581,16.304722,SAL,43.937861,15.168108,0,296,55.95
S,SAL,43.937861,15.168108,MINTU,44.340000,14.695556,295,317,31.56
S,MINTU,44.340000,14.695556,LOS,44.527097,14.472847,317,317,14.73
S,LOS,44.527097,14.472847,CRE,44.902881,14.416547,317,351,22.67
S,CRE,44.902881,14.416547,KULEN,45.165278,15.133611,351,59,34.24



A,W45,2
S,LLK,26.762195,80.880472,BODOG,26.026944,83.581945,0,106,151.74
S,BODOG,26.026944,83.581945,PPT,25.590417,85.089917,108,108,85.56



A,W45,2
S,PPT,25.590417,85.089917,BODOG,26.026944,83.581945,108,0,85.56
S,BODOG,26.026944,83.581945,LLK,26.762195,80.880472,108,108,151.74



A,W45,5
S,KULEN,45.165278,15.133611,CRE,44.902881,14.416547,60,0,34.24
S,CRE,44.902881,14.416547,LOS,44.527097,14.472847,351,59,22.67
S,LOS,44.527097,14.472847,MINTU,44.340000,14.695556,316,351,14.73
S,MINTU,44.340000,14.695556,SAL,43.937861,15.168108,317,316,31.56
S,SAL,43.937861,15.168108,SPL,43.496581,16.304722,295,317,55.95



A,W45,3
S,MELUS,77.717778,104.233333,USATO,76.200833,99.049722,24,0,114.84
S,USATO,76.200833,99.049722,PESIK,75.650833,91.498889,58,16,114.91
S,PESIK,75.650833,91.498889,DOSON,73.517500,80.380000,33,58,218.15



A,W45,8
S,HLM,-6.271944,106.886975,KASAL,-6.543992,107.940584,285,0,64.91
S,KASAL,-6.543992,107.940584,CA,-6.697981,108.559758,283,285,38.04
S,CA,-6.697981,108.559758,PIALA,-6.790358,109.136817,278,283,34.83
S,PIALA,-6.790358,109.136817,ANY,-6.974522,110.379983,278,278,74.87
S,ANY,-6.974522,110.379983,BA,-6.966667,111.416667,268,278,61.74
S,BA,-6.966667,111.416667,SBR,-7.373939,112.771220,285,268,84.26
S,SBR,-7.373939,112.771220,ENTAS,-7.712956,114.370292,281,285,97.26
S,ENTAS,-7.712956,114.370292,BLI,-8.750570,115.163306,321,281,78.06



A,W45,2
S,MIGAN,4.723056,-73.311945,VIDAL,4.316667,-73.355556,13,0,24.52
S,VIDAL,4.316667,-73.355556,VVC,4.066944,-73.382222,13,13,15.07



A,W45,21
S,FLN,-27.669917,-48.540453,TUVAM,-27.163833,-48.215833,228,0,34.94
S,TUVAM,-27.163833,-48.215833,VUKUS,-25.913356,-47.558725,224,228,82.90
S,VUKUS,-25.913356,-47.558725,PETRI,-24.802500,-46.987834,223,224,73.48
S,PETRI,-24.802500,-46.987834,NEROK,-24.324667,-46.745833,223,223,31.56
S,NEROK,-24.324667,-46.745833,RDE,-23.891000,-46.528167,224,223,28.62
S,RDE,-23.891000,-46.528167,BCO,-23.406406,-46.385514,215,224,30.11
S,BCO,-23.406406,-46.385514,TEXAS,-23.093500,-46.171833,233,215,22.16
S,TEXAS,-23.093500,-46.171833,SIDUS,-22.767500,-45.947000,233,233,23.17
S,SIDUS,-22.767500,-45.947000,MUKSA,-22.116333,-45.507667,233,233,46.04
S,MUKSA,-22.116333,-45.507667,GIKTU,-22.046167,-45.462000,233,233,4.92
S,GIKTU,-22.046167,-45.462000,NIGMA,-21.167000,-44.872834,233,233,62.15
S,NIGMA,-21.167000,-44.872834,ARENA,-21.026667,-44.782500,233,233,9.82
S,ARENA,-21.026667,-44.782500,TENIM,-20.755500,-44.600000,234,233,19.22
S,TENIM,-20.755500,-44.600000,AKSUG,-20.365667,-44.348333,233,234,27.33
S,AKSUG,-20.365667,-44.348333,BHZ,-19.835770,-44.003564,234,233,37.26
S,BHZ,-19.835770,-44.003564,CNF,-19.558214,-44.048514,193,234,16.85
S,CNF,-19.558214,-44.048514,ANLES,-19.189333,-43.440000,260,193,40.94
S,ANLES,-19.189333,-43.440000,OPLUT,-18.860667,-42.903500,260,260,36.26
S,OPLUT,-18.860667,-42.903500,DADNA,-17.542333,-40.793833,260,260,143.92
S,DADNA,-17.542333,-40.793833,GAXAM,-16.815333,-39.658500,259,260,78.34
S,GAXAM,-16.815333,-39.658500,SGR,-16.441647,-39.082472,259,259,39.99



A,W45,3
S,PSN,35.122500,128.999445,AMICK,35.125278,128.497778,98,0,24.62
S,AMICK,35.125278,128.497778,VENUS,35.125000,127.582222,98,96,44.93
S,VENUS,35.125000,127.582222,KWJ,35.119444,126.814167,98,98,37.69



OpusFSX will find and recognise airways but they must be listed within the navdata.
