Hi

When we choose to use only navigraph data, the markers disappear from the map, is that normal?

Edited by niksan29

Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

Depends where. The Navigraph database contains markers too. For example: Cycle 1909, ETSI, ILS IIGW has markers in all databases.

Alex

  • Like 1

Share this post


Link to post
Share on other sites
52 minutes ago, albar965 said:

 For example: Cycle 1909, ETSI, ILS IIGW has markers in all databases.

As I understand it, I have the same cycle, but there are no markers😔

No everywhere, it's just one example:

Spoiler


Any ideas?

Edited by niksan29

Share this post


Link to post
Share on other sites

I cannot find markers at this airport. Neither in P3D nor X-Plane and not in Navigraph scenery.

You probably use an add-on scenery which introduced these.

BTW: Update the LNM Navigraph data to r2. I looks like you have the IATA instead of ICAO airport code issue.

Alex

  • Like 1

Share this post


Link to post
Share on other sites
13 minutes ago, albar965 said:

I cannot find markers at this airport.

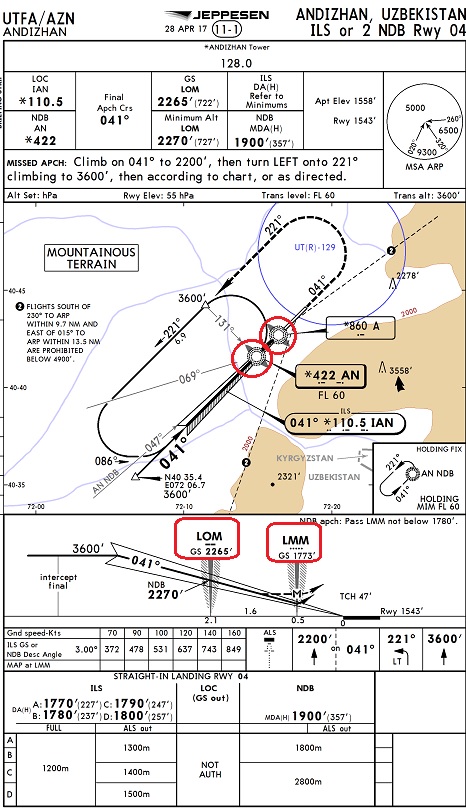

It is unlikely that you have newer charts than these:

Spoiler




13 minutes ago, albar965 said:

BTW: Update the LNM Navigraph data to r2. I looks like you have the IATA instead of ICAO airport code issue.

you're right, I'll try update, maybe the markers will become visible...

Edited by niksan29

Share this post


Link to post
Share on other sites

I'm not talking about charts but about the source data LNM is based on.

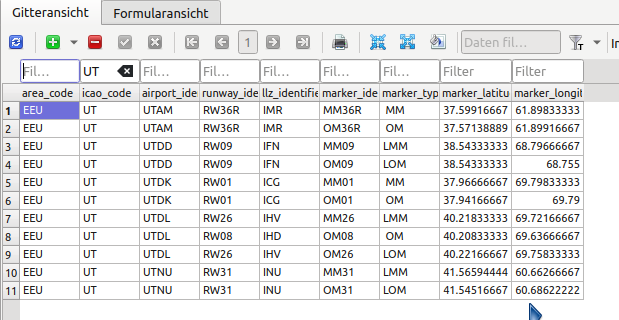

See below all markers in region UT. No markers for UTFA, sorry.


The update will not bring the markers back but will fix a bunch of other problems.

Alex

Share this post


Link to post
Share on other sites

I don’t quite understand, that is, in the monthly navigrafph cycles the marker information is not encoded?  Or is it there, but your program does not work with this data?

Edited by niksan29

Share this post


Link to post
Share on other sites

The markers are not in the source data which is used to compile all the databases for various add-on aircraft, X-Plane, fsAerodata, LNM and whatnot.

They're only in the charts.

Alex

  • Like 1

Share this post


Link to post
Share on other sites
3 hours ago, albar965 said:

The markers are not in the source data which is used to compile all the database

Now understand!

3 hours ago, albar965 said:

They're only in the charts.

Or in the sim scenery)))

It’s sad, how do we find out their coordinates(coordinates not indicated on charts)?  In order to verify the correct location of these markers...

Or marker coordinates always match NDB?

Edited by niksan29

Share this post


Link to post
Share on other sites
20 hours ago, niksan29 said:

Or in the sim scenery)))

LNM will show the markers if you have an add-on airport that includes them.

20 hours ago, niksan29 said:

It’s sad, how do we find out their coordinates(coordinates not indicated on charts)?  In order to verify the correct location of these markers...

Or marker coordinates always match NDB?

In your case, yes. But I would not rely on it.

Alex

Share this post


Link to post
Share on other sites

But what do I rely on?

Where can I see the exact location of the marker?

Edited by niksan29

Share this post


Link to post
Share on other sites
2 hours ago, niksan29 said:

Where can I see the exact location of the marker?

I don't know.

You should approach Navigraph or Jeppesen if you like to complain about missing data.:wink: I'm just the messenger.

Alex
