Custom Tail Numbers for your Liveries

[fppilot 4,371]

The Tail Number can be edited in the aircraft.cfg file for the aircraft/livery in the Community folder.  Click on "Reveal Hidden Content" tab below to open up the window to see the specific lines (in blue) in the .cfg file to edit.  As always, make a backup of your .cfg file first.  And if anyone can figure out what color codes to use in that line (in purple) please advise.  Photoshop is the tool I use to match colors and the hex codes in Photoshop are six digits, not eight as seen in the example embedded in that line.  Changing the font may also be possible.



Spoiler

[FLTSIM.4]
title = "DA62 Red" ; Variation name
model = "RED" ; model folder
panel = "" ; panel folder
sound = "" ; sound folder
texture = "RED" ; texture folder
kb_checklists = "" ; Procedures/Checklist sibling file name
kb_reference = "" ; Reference information sibling file name
description = "TT:AIRCRAFT.DESCRIPTION" ; Variation description.
wip_indicator = 0 ; know if the variation is good to go or still WIP : -1=Disabled, 0=Rough, 1=1st Pass, 2=Finished
ui_manufacturer = "Diamond Aircraft" ; e.g. Boeing, Cessna
ui_type = "Red" ; e.g. 747-400, 172
ui_variation = "Red" ; e.g. World Air, IFR Panel
ui_typerole = "Twin Engine Prop" ; e.g. Single Engine Prop, Twin Engine Prop, Rotorcraft, etc
ui_createdby = "Wings Creates" ; e.g. Asobo Studio, Microsoft, FSAddonCompany, etc
ui_thumbnailfile = "" ; app relative path to ThumbNail image file
ui_certified_ceiling = 20000 ; service ceiling / max certified operating altitude (ft)
ui_max_range = 1283 ; max distance the aircraft can fly between take-off and landing in (NM)
ui_autonomy = 7 ; max duration the aircraft can fly between take-off and landing in (Hrs)
ui_fuel_burn_rate = 79 ; average fuel consumption per hour (lbs/hr) - reminder: fuel density is ~6.7lbs per US gallon

//atc_id = "ASXGS" ; tail number

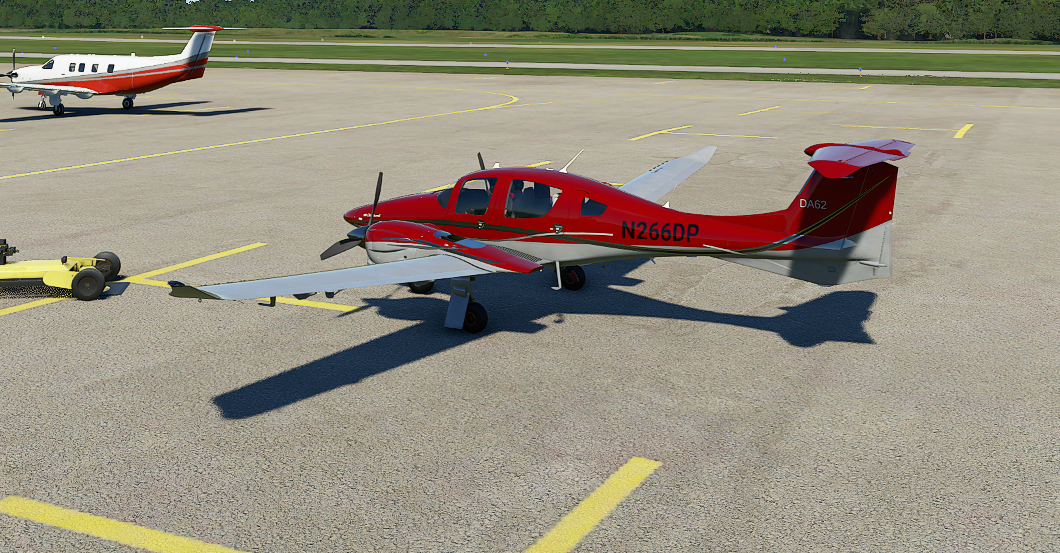

atc_id = "N266DP" ; tail number

//atc_id_enable = 0 ; enable tail number
atc_id_enable = 1 ; enable tail number

atc_id_enable = 1 ; enable tail number
atc_airline = "xxx" ; airline name
icao_airline = "xxx" ; airline icao code

Spoiler



atc_flight_number = "" ; flight number
atc_heavy = 0 ; heavy?
atc_parking_types = "RAMP" ; "ANY" / "RAMP" / "CARGO" / "MIL_CARGO" / "MIL_COMBAT" / "GATE" / "DOCK"
atc_parking_codes = "" ; Comma separated and may be as small as one character each

//atc_id_color = "" ; color for the tail number : i.e. "#ffff00ff"
atc_id_color = "#00000000" ; color for the tail number : i.e. "#ffff00ff"

atc_id_font = "" ; font for the tail number

Still trying to find control of the tail number color.  Have not figured it out yet.







Edited September 15, 2020 by fppilot
