As the topic title says: can I use LNM to figure out 1. transition altitudes and 2. runway elevations?

Edited January 26, 20242 yr by tup61

Transition altitude is shown in airport overview tab when Navigraph or X-Plane data is used. Runway elevations noted but not yet implemented.

Alex

Odd, can't find it... I only use Navigraph for procedures and navaids: maybe that's why I don't see it? I will have a closer look.

And nice to hear elevation is noted. ;)

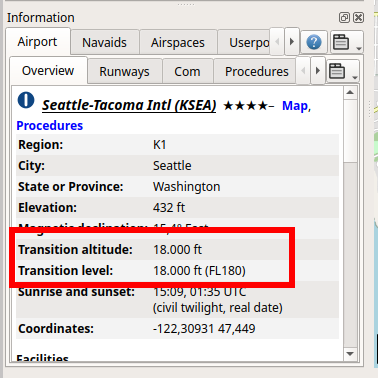

Not all airports have this. This is from MSFS with setting "Use Navigraph for Navaids and Procedures" and cycle updated to 2213.

Alex

Thanks for the example! Good to know not all airports have this.

7 hours ago, albar965 said:

 Runway elevations noted but not yet implemented.

I use a kind of trick which uses the Navigraph data.
When you choose any approach from Navigraph,  which ends at the given runway it should display  the runway's threshold altitude on the map  🙂
But this trick  works only for airports/runways that have stored procedures in Navigraph database.

Regards,
Piotr

ps. BTW when X-Plane data procedures are used, it also displays threshold altitudes, but I don't know how about other simulators, and it seems the Navigraph data are more reliable than from simulator.
