I have a custom airspace loaded in as a MOA (.txt contents are below) and when clicking on the airspace, the name shows correctly in the Information window, but along the boundary lines it simply says "MOA" and not the name of it. Checking other base game (navigraph) made MOAs the name shows, and in the information box there's another section labeled "Designation" which has that name also displayed. Is there a way to add this with the openair format?

Airspace I'm trying to give a name on the boundary line:



Example of a base nav one that does it (and with "Designation" section in the window)

Forgot the .txt contents:

AC M
AN W-386B
AY WARNING
AF 308.800
AL GND
AH UNL
DP 38:45.000N 074:37.000W
DP 38:45.000N 074:30.000W
DP 38:15.000N 074:30.000W
DP 38:15.000N 075:03.500W
DP 38:25.500N 074:59.000W

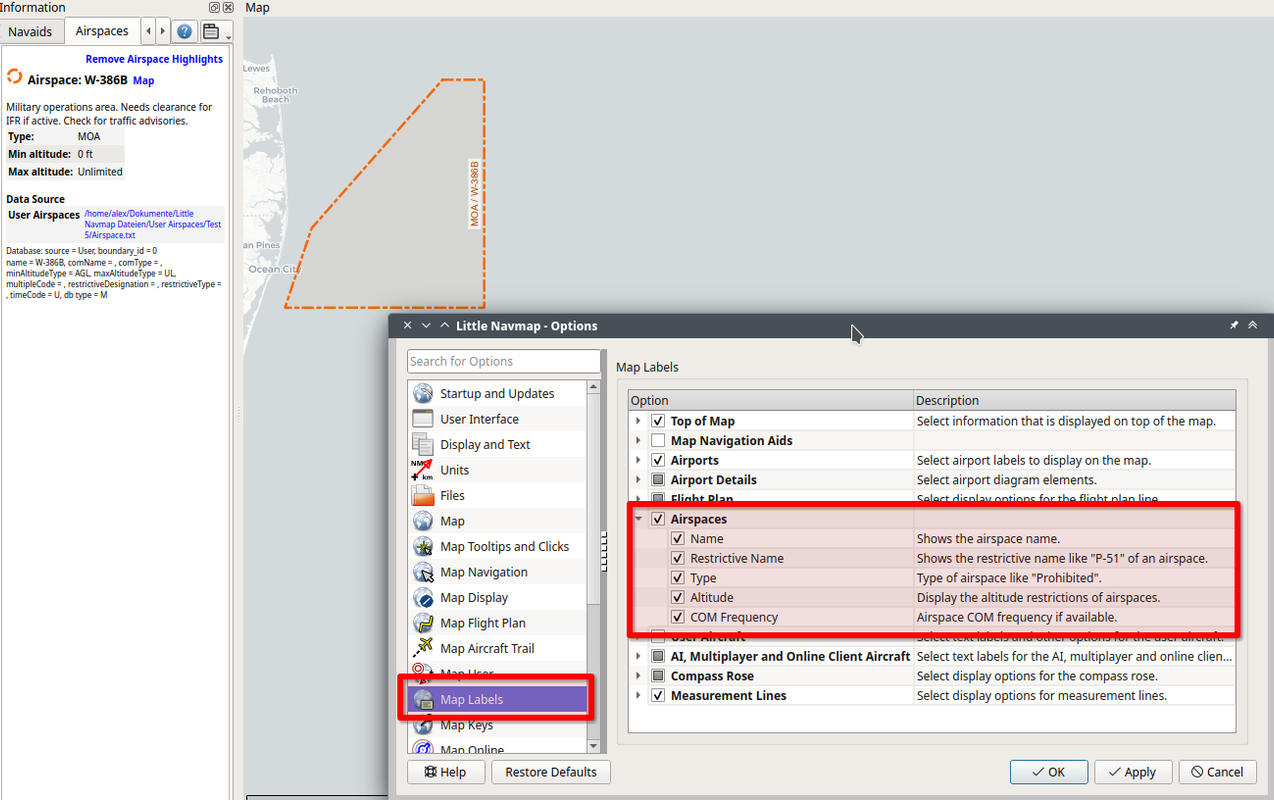

Thanks for the screenshots and the example.

It loads and shows fine here, provided that all the label options are enabled.



You probably have a few of these off.

Alex

I'll jump in 🙂



Alex, I can't see any COM Frequency on the airspaces themselves. although its on.

1 hour ago, Dbarnea said:

Alex, I can't see any COM Frequency on the airspaces themselves. although its on.

User airspaces or other?

Not all have a frequency and the OpenAir .txt format has no record for frequencies.

Alex

On 6/25/2025 at 5:50 AM, albar965 said:

Thanks for the screenshots and the example.

It loads and shows fine here, provided that all the label options are enabled.



You probably have a few of these off.

Alex

That was it, the Name section wasn't selected. Appreciate, this program is awesome!

I meant the official airspaces.

6 hours ago, Dbarnea said:

I meant the official airspaces.

What simulator?

Frequencies are only available for FIR and UIR airspaces in the Navigraph data. This is already a limitation in the source data.

Alex
