November 19, 20223 yr Hello, Something strange happens to me with one file User Airspaces. It includes 41 areas entered according to the same code but only one is visible... That file was working properly in the past but for sometime now, it doesn't... Could anyone tell me what's wrong in the following sample of the code: AC F AN CBA1C SP 0,2,0,176,80 SB -1,-1,-1 AH UNLTD AL FL115 V Z=200 DP 51:00:56 N 002:34:22 E DP 51:00:45 N 002:37:40 E DP 50:51:52 N 003:25:52 E DP 50:50:47 N 003:26:49 E DP 50:40:59 N 003:20:02 E DP 50:50:35 N 002:36:54 E ... AC F AN CBAC25FC SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL115 V Z=200 DP 47:39:36 N 006:00:13 E DP 47:36:40 N 006:14:49 E DP 47:35:00 N 006:20:41 E DP 47:32:00 N 006:20:00 E DP 47:20:00 N 006:36:12 E DP 46:58:02 N 006:10:52 E DP 46:58:24 N 005:47:29 E DP 47:05:00 N 005:36:30 E DP 47:28:10 N 005:36:30 E ... AC F AN CBAC25FW SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL065 V Z=200 DP 47:44:30 N 005:36:30 E DP 47:39:36 N 006:00:13 E DP 47:28:10 N 005:36:30 E DP 47:05:00 N 005:36:30 E DP 47:19:23 N 005:11:46 E DP 47:42:56 N 005:14:59 E ... AC F AN CBAC25FE SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL115 V Z=200 DP 47:20:00 N 006:36:12 E DP 47:17:32 N 006:57:53 E DP 46:57:37 N 006:28:33 E DP 46:58:02 N 006:10:52 E ... Among the above list of areas, only the CBAC25FW is displayed... None of the others shows. Thanks for your help Bruno P3D V4.5 and V5 on SSD1TB - W10.64 All add-ons on HDD 2To Intel Core I9+9900K, RAM32Gb, NVidia RTX2080TI, Surround 3 x 27inc, VR Pimax5K+ Saitex X55, Saitek Yoke Pro + Throttle quadrant, Multi panel, Saitek Rudder pedals, Thrustmaster MFD Cougar x2

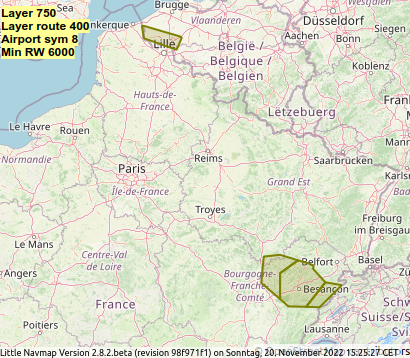

November 20, 20223 yr I see the four airspaces if I remove the "..." in the file: Alex Alex' Projects: Little Navmap

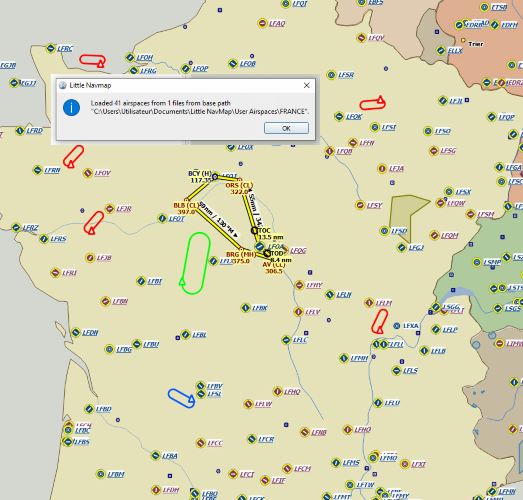

November 21, 20223 yr Author Hi Alex, Thanks for your reply. I have removed the "3 dots" entries and still only one area is shown. May I ask you a mail or a personal address where I could send you the full file, please Edited November 21, 20223 yr by braudoux P3D V4.5 and V5 on SSD1TB - W10.64 All add-ons on HDD 2To Intel Core I9+9900K, RAM32Gb, NVidia RTX2080TI, Surround 3 x 27inc, VR Pimax5K+ Saitex X55, Saitek Yoke Pro + Throttle quadrant, Multi panel, Saitek Rudder pedals, Thrustmaster MFD Cougar x2
November 21, 20223 yr https://albar965.github.io/contact.html But here is the modified file which loads ok for me: AC F AN CBA1C SP 0,2,0,176,80 SB -1,-1,-1 AH UNLTD AL FL115 V Z=200 DP 51:00:56 N 002:34:22 E DP 51:00:45 N 002:37:40 E DP 50:51:52 N 003:25:52 E DP 50:50:47 N 003:26:49 E DP 50:40:59 N 003:20:02 E DP 50:50:35 N 002:36:54 E AC F AN CBAC25FC SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL115 V Z=200 DP 47:39:36 N 006:00:13 E DP 47:36:40 N 006:14:49 E DP 47:35:00 N 006:20:41 E DP 47:32:00 N 006:20:00 E DP 47:20:00 N 006:36:12 E DP 46:58:02 N 006:10:52 E DP 46:58:24 N 005:47:29 E DP 47:05:00 N 005:36:30 E DP 47:28:10 N 005:36:30 E AC F AN CBAC25FW SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL065 V Z=200 DP 47:44:30 N 005:36:30 E DP 47:39:36 N 006:00:13 E DP 47:28:10 N 005:36:30 E DP 47:05:00 N 005:36:30 E DP 47:19:23 N 005:11:46 E DP 47:42:56 N 005:14:59 E AC F AN CBAC25FE SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL115 V Z=200 DP 47:20:00 N 006:36:12 E DP 47:17:32 N 006:57:53 E DP 46:57:37 N 006:28:33 E DP 46:58:02 N 006:10:52 E Alex' Projects: Little Navmap
November 22, 20223 yr Author 20 hours ago, albar965 said: https://albar965.github.io/contact.html But here is the modified file which loads ok for me: AC F AN CBA1C SP 0,2,0,176,80 SB -1,-1,-1 AH UNLTD AL FL115 V Z=200 DP 51:00:56 N 002:34:22 E DP 51:00:45 N 002:37:40 E DP 50:51:52 N 003:25:52 E DP 50:50:47 N 003:26:49 E DP 50:40:59 N 003:20:02 E DP 50:50:35 N 002:36:54 E AC F AN CBAC25FC SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL115 V Z=200 DP 47:39:36 N 006:00:13 E DP 47:36:40 N 006:14:49 E DP 47:35:00 N 006:20:41 E DP 47:32:00 N 006:20:00 E DP 47:20:00 N 006:36:12 E DP 46:58:02 N 006:10:52 E DP 46:58:24 N 005:47:29 E DP 47:05:00 N 005:36:30 E DP 47:28:10 N 005:36:30 E AC F AN CBAC25FW SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL065 V Z=200 DP 47:44:30 N 005:36:30 E DP 47:39:36 N 006:00:13 E DP 47:28:10 N 005:36:30 E DP 47:05:00 N 005:36:30 E DP 47:19:23 N 005:11:46 E DP 47:42:56 N 005:14:59 E AC F AN CBAC25FE SP 0,2,0,176,80 SB -1,-1,-1 AH FL195 AL FL115 V Z=200 DP 47:20:00 N 006:36:12 E DP 47:17:32 N 006:57:53 E DP 46:57:37 N 006:28:33 E DP 46:58:02 N 006:10:52 E Which is exactly the same as mine after your suggested modification 😞 Will send you the full file... Thanks P3D V4.5 and V5 on SSD1TB - W10.64 All add-ons on HDD 2To Intel Core I9+9900K, RAM32Gb, NVidia RTX2080TI, Surround 3 x 27inc, VR Pimax5K+ Saitex X55, Saitek Yoke Pro + Throttle quadrant, Multi panel, Saitek Rudder pedals, Thrustmaster MFD Cougar x2
November 22, 20223 yr 2 minutes ago, braudoux said: Which is exactly the same as mine after your suggested modification 😞 Will send you the full file... Thanks Yes. Please do. Maybe a bug or LNM is too picky about some fields. Alex Alex' Projects: Little Navmap
