World Flight plan - strange corruption

[kutyafal 3]

OK, maybe there is a better way but I tried to create a generic flight plan for the current World Flight (Route Map – WorldFlight) using only airports as waypoints and the last few airports gets drawn out of sequence even though they're correctly ordered in the flightplan. I know it's an outlying case but thought I report it anyways. Flight plan starts and ends at LSGP.

I actually tried a short version starting from LPPD and ending at LIMC and it's still the same issue. The rest of the plan is all fine. Basically, the flight plan displayed fine until DAAG as I entered airports one-by-one, but after that things get messed up.



[albar965 1,046]

1 hour ago, kutyafal said:

OK, maybe there is a better way but I tried to create a generic flight plan for the current World Flight (Route Map – WorldFlight) using only airports as waypoints and the last few airports gets drawn out of sequence even though they're correctly ordered in the flightplan. I know it's an outlying case but thought I report it anyways. Flight plan starts and ends at LSGP.

I actually tried a short version starting from LPPD and ending at LIMC and it's still the same issue. The rest of the plan is all fine. Basically, the flight plan displayed fine until DAAG as I entered airports one-by-one, but after that things get messed up.

I think even outlying cases should work if possible. So thanks for the report.

I suppose you used the "Flight plan route description" window to input the airports.

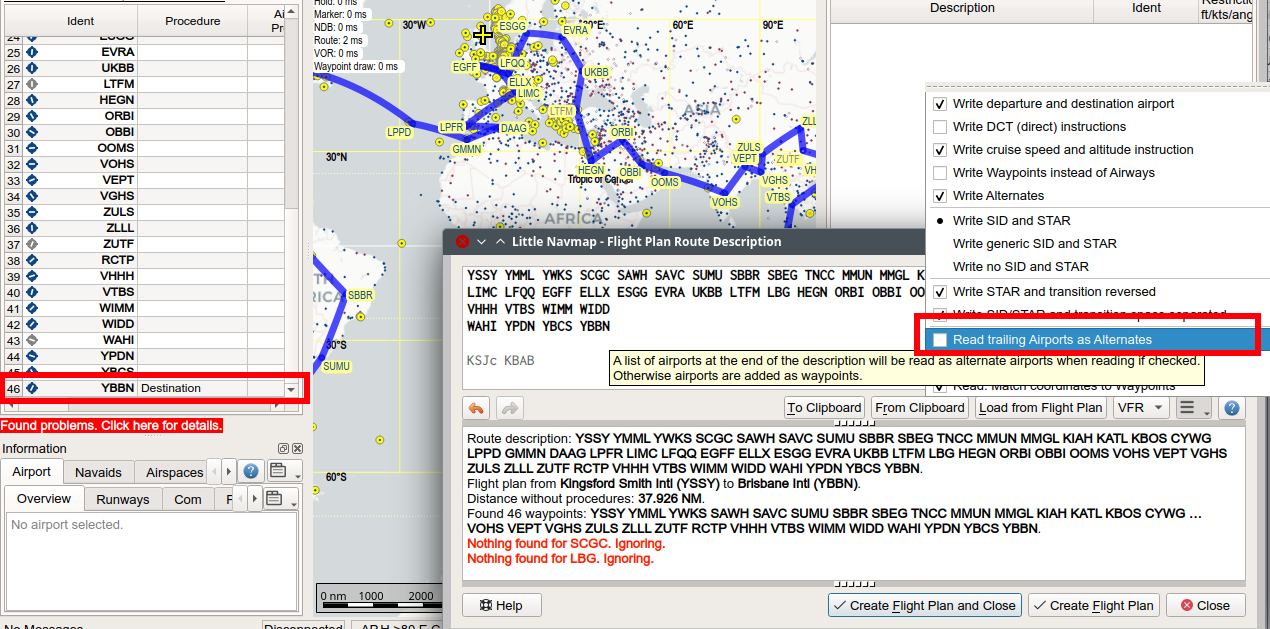

LNM detects the last airport(s) in the list as alternates if you use airports only. Therefore the gray YBBN in the flight plan table in my test:





You can disable this here in the drop-down menu using the three-lines-button to get a correct flight plan:

This should fix it.

Alex

Edited November 7, 2023 by albar965

[kutyafal 3]

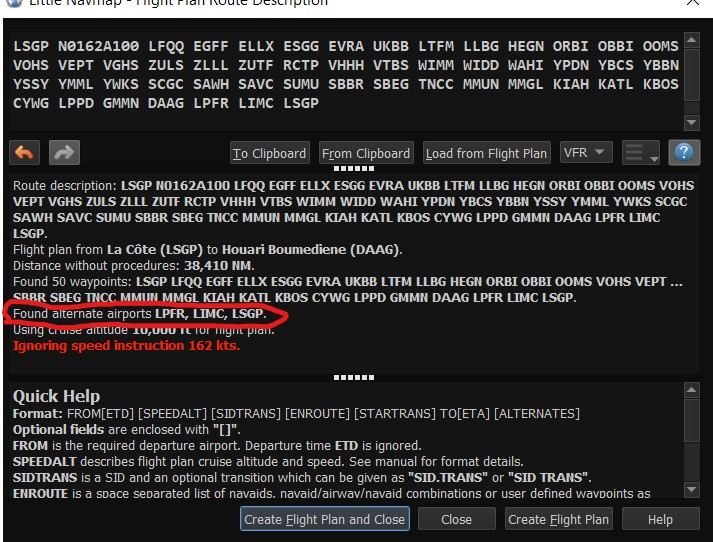

Indeed, in my case it seems to have detected three alternates (LFPR, LIMC and LSGP) but unchecking that option fixed it. Thank you very much for the quick and prompt support. If only MSFS would have this kind of support and that is a paid app...

[albar965 1,046]

You're welcome! 🙂
