Hi,

I was wondering if anyone solved the mapping of the TM TCA Quadrant such as having idle and reverse thrust working as currently I need to pull my reverse thrust lever all the way back to get it into idle

Edited December 25, 20205 yr by Burgess

I use a paied version of FSUIPC and that works well...

how do you do it in FSUIPC could you share some pictures if that works okay with you. I have seen it done before

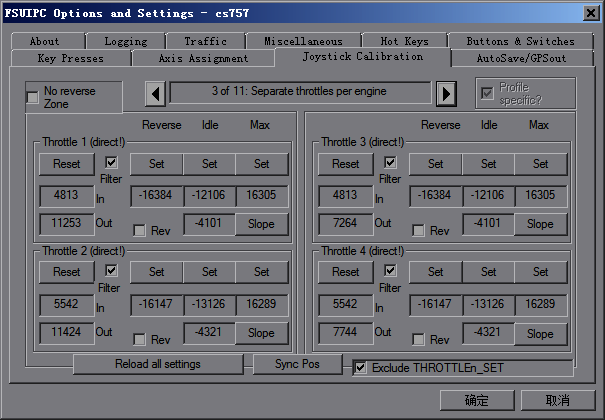

Basicly set the throttle to FSUIPC Calibration in Axis Assigenment tab, then in Joystick Calibration, check off the "No reverse Zone"

Open the "Fliter" for axis you want set (ENG1 ENG2, etc) Set throttle to idle, click the middle "SET" to get the middle pozition to somewhare like -6000~-7000, it's better to left some dead zone. and that's basiclly what needed.

I turns out to set some more zone and set a detrent for idle reverser to prevet asymmetric, my FSUIPC.ini now looks like this:

[Axes]
5=6X,256,D,9,11,0,0	-{ DIRECT: Throttle1, Throttle3 }-
6=6X,BR,-12105,-8707,x0300089A,xFFFFFE00	-{ DIRECT: Throttle1, Throttle3Entering=offset dword set, offset 089A }-
7=6X,B,-8706,-5804,65967,0	-{ Entering=THROTTLE1_CUT }-
8=6X,BR,-12105,-8707,x030009CA,xFFFFFE00	-{ Entering=offset dword set, offset 09CA }-
9=6X,B,-8706,-5804,65977,0	-{ Entering=THROTTLE3_CUT }-
10=6Y,256,D,10,12,0,0	-{ DIRECT: Throttle2, Throttle4 }-
11=6Y,BR,-13125,-9560,x03000932,xFFFFFE00	-{ DIRECT: Throttle2, Throttle4Entering=offset dword set, offset 0932 }-
12=6Y,B,-9559,-6886,65972,0	-{ Entering=THROTTLE2_CUT }-
13=6Y,BR,-13125,-9560,x03000A62,xFFFFFE00	-{ Entering=offset dword set, offset 0A62 }-
14=6Y,B,-9559,-6886,65982,0	-{ Entering=THROTTLE4_CUT }-

[JoystickCalibration]
Throttle1=-16384,-12106,-4101,16305/8
Throttle2=-16147,-13126,-4321,16289/8
Throttle3=-16384,-12106,-4101,16305/8
Throttle4=-16147,-13126,-4321,16289/8
SyncSlopeThrottle2=43/42,53/52,73/69,99/98,119/120
SyncSlopeThrottle3=42/42,52/52,69/69,98/98,120/120
SyncSlopeThrottle4=43/42,53/52,73/69,99/98,119/120



I have it set in fsuipc.

For the fslabs it's set at 'direct to sim'

For all others pmdg, qw etc it's set as 'fsuipc calibration' I needed to set a separate profile for other addon aircraft, not the fslabs.

For anyone on the fence about buying it. I can't recommend it enough. It's brilliant

Edited December 26, 20205 yr by fluffyflops

Is the reverse function going to go away orrrrr can I add that

On 12/28/2020 at 1:21 AM, Burgess said:

Is the reverse function going to go away orrrrr can I add that

It's just there, fully functional
