C195

[Beardyman]

I know that officially she is not for P3D5, but all other planes compatible for P3D4 works fine in v5.

With that hope i have purchased her from Carenado, and installed into my P3D5.

Strange thing is that inside cockpit i do not see plane body, just seats, gauges, propeller.

Outside view shows full plane without issues.

Is there any procedure to install her into v5 and have plane fully working?

[Rogen]

On 1/2/2024 at 11:01 PM, Beardyman said:

I know that officially she is not for P3D5, but all other planes compatible for P3D4 works fine in v5.

With that hope i have purchased her from Carenado, and installed into my P3D5.

Strange thing is that inside cockpit i do not see plane body, just seats, gauges, propeller.

Outside view shows full plane without issues.

Is there any procedure to install her into v5 and have plane fully working?

The C195 is actually an Alabeo plane and does work Ok in P3D v5.

Transparency is typcially what occurs when licensing doesn't marry up, was the install manually moved from where the installer placed it ?

Maybe if you give it another go at installing?

I actually have it installed to a common Add-ons folder location where it is acessable by v4.5 and v5.3 and functions fine in both.

Note: the Sound folder is copied into the P3D Sound folder due to issues with it otherwise finding the sound files.

I also made these following changes to the engine data.

Spoiler

//TBM 05/01/2024 Jacobs R-755A2
//    The R-755A2 is a post-war evolution of the L4 engine, having the same bore and stroke as that earlier engine but with higher compression pistons
//    and a power case that allows better air flow to the cylinders.
//    The A2 is rated at 300 hp. @ 2200 rpm and was originally designed for the Cessna 195.
[piston_engine]
power_scalar                          = 1       //Piston power scalar
cylinder_displacement                 = 108.24  //Cubic inches per cylinder (original was set to 70) Bore=5.25 inches, stroke= 5 inches, total displacement=757.67 inches / 7 equals ~108.24
compression_ratio                     = 6.1     //Compression ratio, except for the R-755E which was 6.5:1. Note this value was originally set to 8.1.
number_of_cylinders                   = 7       //Number of cylinders // TBM this was originally set to 9, however the engine has 7 cylinders in real life.
max_rated_rpm                         = 2200    //Max rated RPM
max_rated_hp                          = 300     //Max rated HP
fuel_metering_type                    = 1       //0=Fuel Injected, 1=Gravity Carburetor, 2=Aerobatic Carburetor
cooling_type                          = 0       //0=Cooling type Air, 1=Cooling type Liquid
normalized_starter_torque             = 1       //Starter torque factor
turbocharged                          = 0       //Is it turbocharged? 0=FALSE, 1=TRUE
max_design_mp                         = 0       //Max design manifold pressure, (inHg) - if boosted
min_design_mp                         = 0       //Min design manifold pressure, (inHg) - if boosted
critical_altitude                     = 0       //Altitude to which the turbocharger will provide max design manifold pressure (feet)
emergency_boost_type                  = 0       //0=None, 1=Water Injection, 2=Methanol/Water injection, 3=War Emergency Power
emergency_boost_mp_offset             = 0       //Additional manifold pressure supplied by emergency boost
emergency_boost_gain_offset           = 0       //Multiplier on manifold pressure due to emergency boost
fuel_air_auto_mixture                 = 0       //Automixture available? 0=FALSE, 1=TRUE
auto_ignition                         = 0       //Auto-Ignition available? 0=FALSE, 1=TRUE
max_rpm_mechanical_efficiency_scalar  = 1       //Scalar on maximum RPM mechanical efficiency
idle_rpm_mechanical_efficiency_scalar = 1       //Scalar on idle RPM mechanical efficiency
max_rpm_friction_scalar               = 1       //Scalar on maximum RPM friction
idle_rpm_friction_scalar              = 1       //Scalar on idle RPM friction
detonation_onset                      = 36

Let me know how you get on.

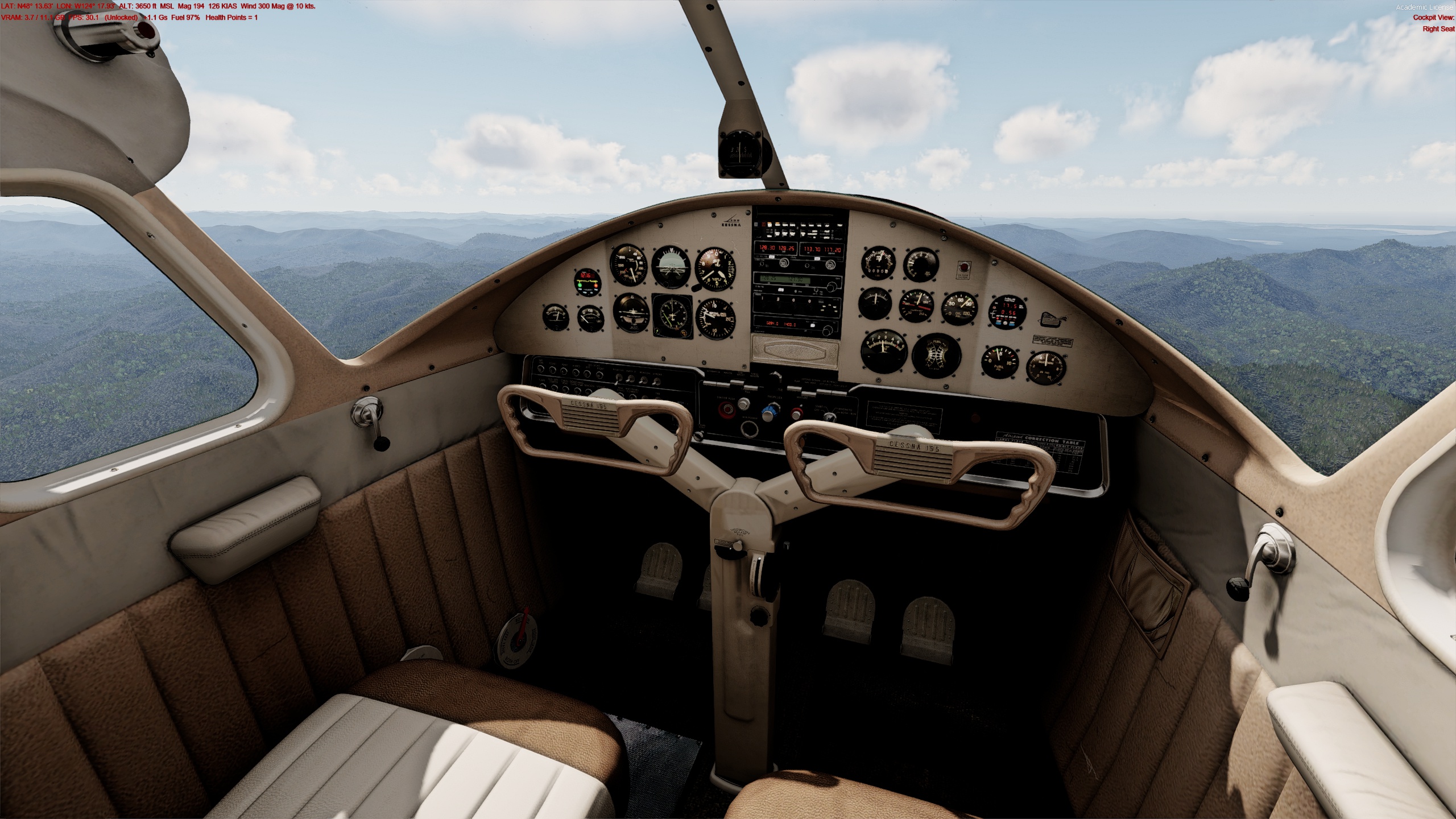

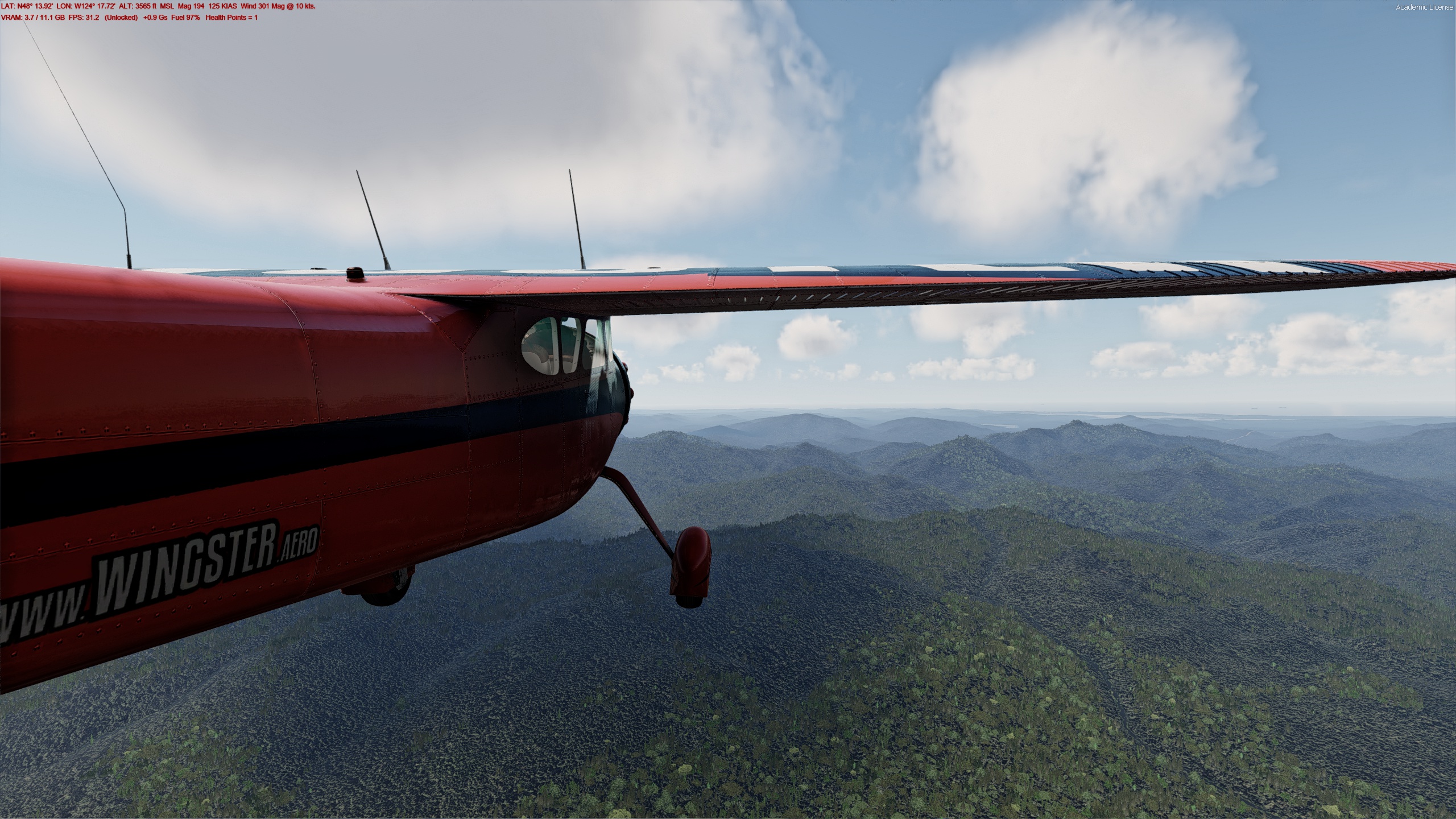

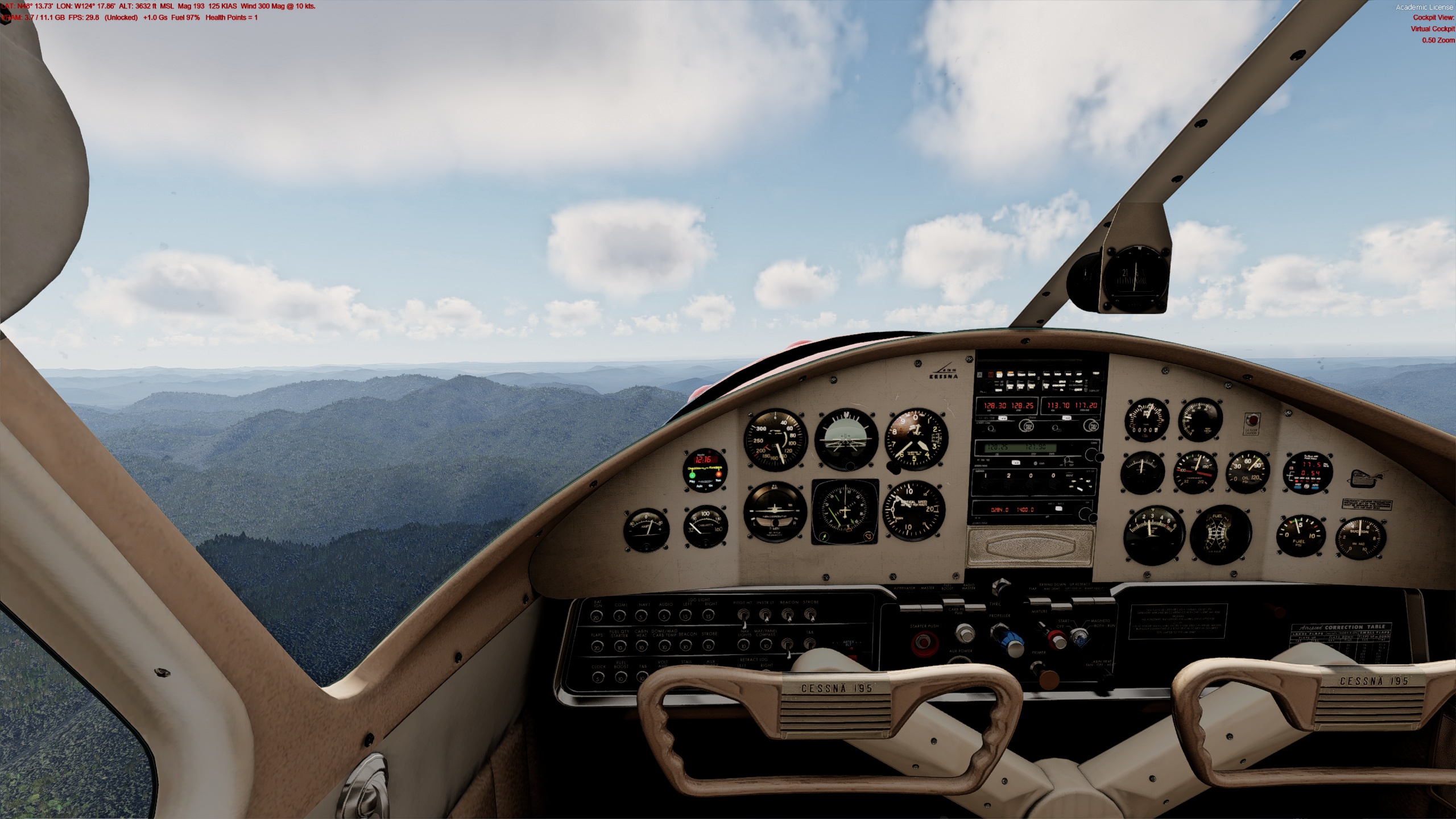

Pics of the plane in v5.3

[Beardyman]

Thx for ur input.

Yes i have reinstalled her and things got fixed.

Unfortunately after first flight she is out - thanks to A2A ...

[Rogen]

5 hours ago, Beardyman said:

Thx for ur input.

Yes i have reinstalled her and things got fixed.

Unfortunately after first flight she is out - thanks to A2A ...

Good to hear things are fixed.

Yes it is certainly no A2A equivelent, which it was never intended to be, but is pretty unique otherwise.

Most Carenado & Alabeo would fall into the bracket of well detailed in looks, although lacking on substance but in geneal fine for the non-sophisticated user.

There are a few Carenado & Alebeo AC where community mods have improved the overall aircraft, my fav are C208B steam gauge with PBR, FM update, gauge and sound mods, the C421 Golden Eagle with FM update, physics update, gauge and sound mods, the Pilatus PC12 with PBR and community update mods and the 690B Turbo Commander with Bill's mods.

Cheers

[Beardyman]

I know, i have purchased her because she is a piece of beauty, but even her sexy look did not compensate lack of any depth 🙂
