Guest jlindbe

FPS Issue with Clouds

Recommended Posts

Hi -



I'm experiencing some significant drops in frames when flying under layers of cloud cover.  I'm thinking my graphics card might be the issue.  I currently run FSX on a laptop, as I travel quite often.  I have a GT640M with 1GB VRAM.  Is this the bottleneck for me?  I use HDEv2 clouds.  If anymore info is needed please let me know and I will be more than willing to provide it.  I would also like to note that when using DX9 I rarely drop below 20fps even with complete overcast/thunderstorms.



Thanks,



John

Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

I get the drops sometimes in very heavy clouded conditions. Mine is a Toshiba Satellite L755 1GB 525M. And even I use HDE v2. try using the 512 textures from HDE V2. Before HDE V2 I was Using Oscar's clouds.



You may need to tweak fsx if you haven't.

Share this post


Link to post
Share on other sites

IronMaiden -



Maybe I should have been more specific.  I start out with a solid 30 fps in heavy clouds.  After a few minutes my GPU goes right to 99% load, and the clock speed drops to 125Mhz from 500 Mhz.  I believe this is what causes my drop in FPS.  Again, its never a problem with DX9.  I'm thinking if you're not experiencing this with a 525M I must have a bad setting somewhere.



I only use the following tweaks.



HighMemFix = 1

Disable Preload =1



Would you be able to share your Inspector settings?  I'm thinking it may have to do with setting 4X SGAA.

Share this post


Link to post
Share on other sites

you need this too :



 [bUFFERPOOLS]

Poolsize=0 or UsePools=0



[JOBSCHEDULER]

AffinityMask=14 (i think this is for the i5 with HT) I either use 14 or 84.



I think the Bufferpools balances the load between the GPU and CPU. NOT SURE THOUGH.



Are you using Nvidia Inspector ? if you are than lower AA and Anistropic.



The reason your GPU clock is throttling is because of the load and probably heat .I get that on my laptop when the CPU temp reaches 99-100 when in FSX and the clock from 3.0 goes down to 0.8 for a few seconds so I leave my clock @2.2 but she flies well.



Try the above tweaks , all fsx guys use it.

Share this post


Link to post
Share on other sites

Thanks.  I've experimented with those tweaks before, and never really noticed much of a difference, but that was when using DX9.  Gave it another shot and still got the throttling with the GPU.  I'll keeping trying different settings.  But, I have attached my Inspector and CFG setting below.  I'm up for trying anything at this point.



  nvidia_20131211_204116.pngfsx.CFG.txt

Share this post


Link to post
Share on other sites

I think i don;t use AA Transparency and transparency supersampling.



HOW THE HELL DO I ATTACH AN IMAGE ?



AA Mode 2x or 4x and override application setting





Anistropic filtering should be Override application setting.

Share this post


Link to post
Share on other sites

Click on more reply options.  I was just able to right click on the image, copy image and paste in though.

Share this post


Link to post
Share on other sites

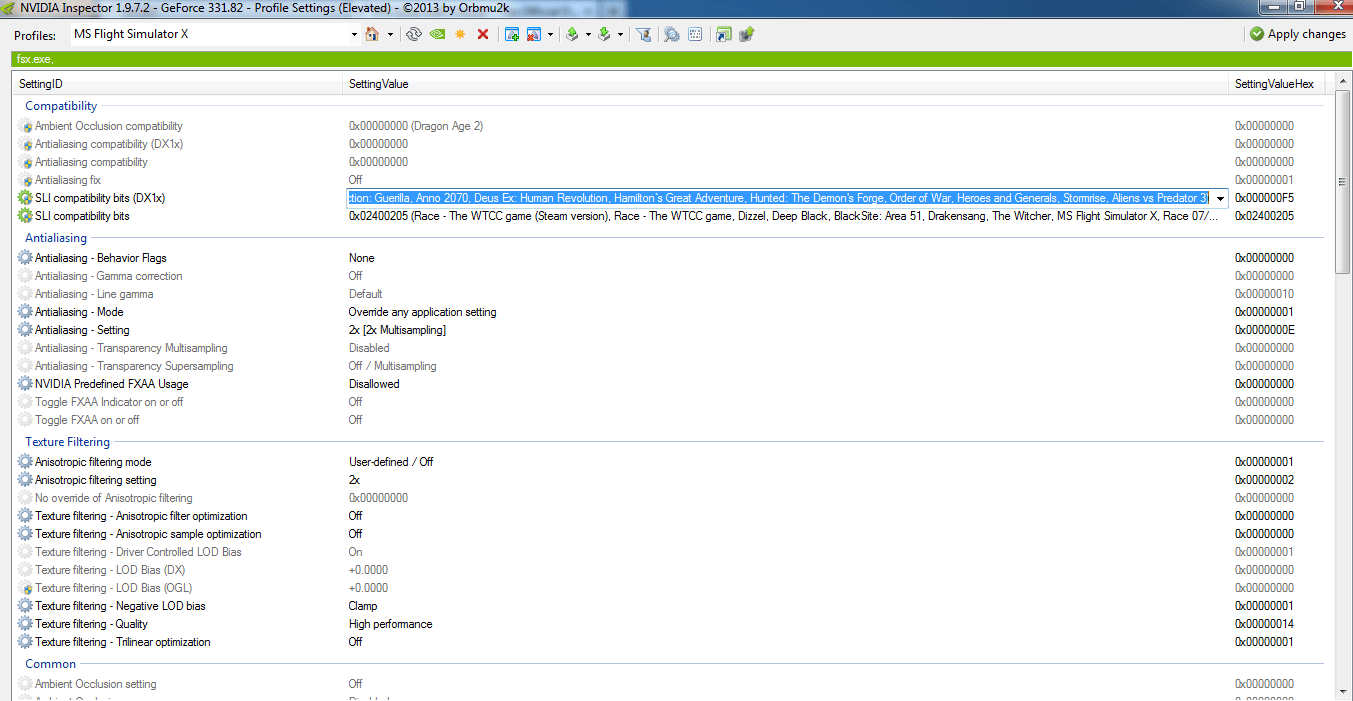

I use this and the AA looks nice and not bad at all.



If you are using DX10 then I think you need to enable AA from FSX. I would suggest also lower your CPU clock a bit and try as if it reaches 100c expect it to throttle down but maybe different in your case just saying . In the air I am getting 29.9 locked at 30. But If I am near Rotterdam (NL2000 Airport) fps drops below 22 and that is ok it is still smooth does not hurt the eyes. Also check if there any non-fsx apps running in the background as on that i5 the load will be terrible.

Share this post


Link to post
Share on other sites

My guess is it might be the '4x Sparse Grid Super Sampling'. This is VERY taxing on the system, even more so in DX10 (I think). I had to go from using 2x in DX9 to switching it off in DX10 because the frames penalty was just too severe. My card is a GTX660Ti. I would dial this setting back to 2x, or switch it off completely to see i the solves the problem.

Share this post


Link to post
Share on other sites

super-sampling and clouds are a big big no-no. I'd say the basis for a smooth running sim, even before applying tweaks of any sort to fsx.cfg, is to steer away from super-sampling and 4096 textures. I think this should be stressed in any serious FSX tweak-guide.

Share this post


Link to post
Share on other sites





I think this should be stressed in any serious FSX tweak-guide.



............ so you're saying the DX10 "How-To" guide is not a "Serious" guide?

Share this post


Link to post
Share on other sites

OK... I've made it more serious....  B)  by adding:-







. This is tied to Transparency SuperSampling (SGSS), and should be the same number as that set in NI, otherwise FSX will take the lower of the two numbers. You can use 2x, 4x or 8x - but beware - this is a heavy load, and will have a large impact on frame rate.



Better?  :lol:



(All tongue in cheek, Lurk. You have a valid point.) Thanks!



All the Best,



pj

Share this post


Link to post
Share on other sites

Hi Jambo -

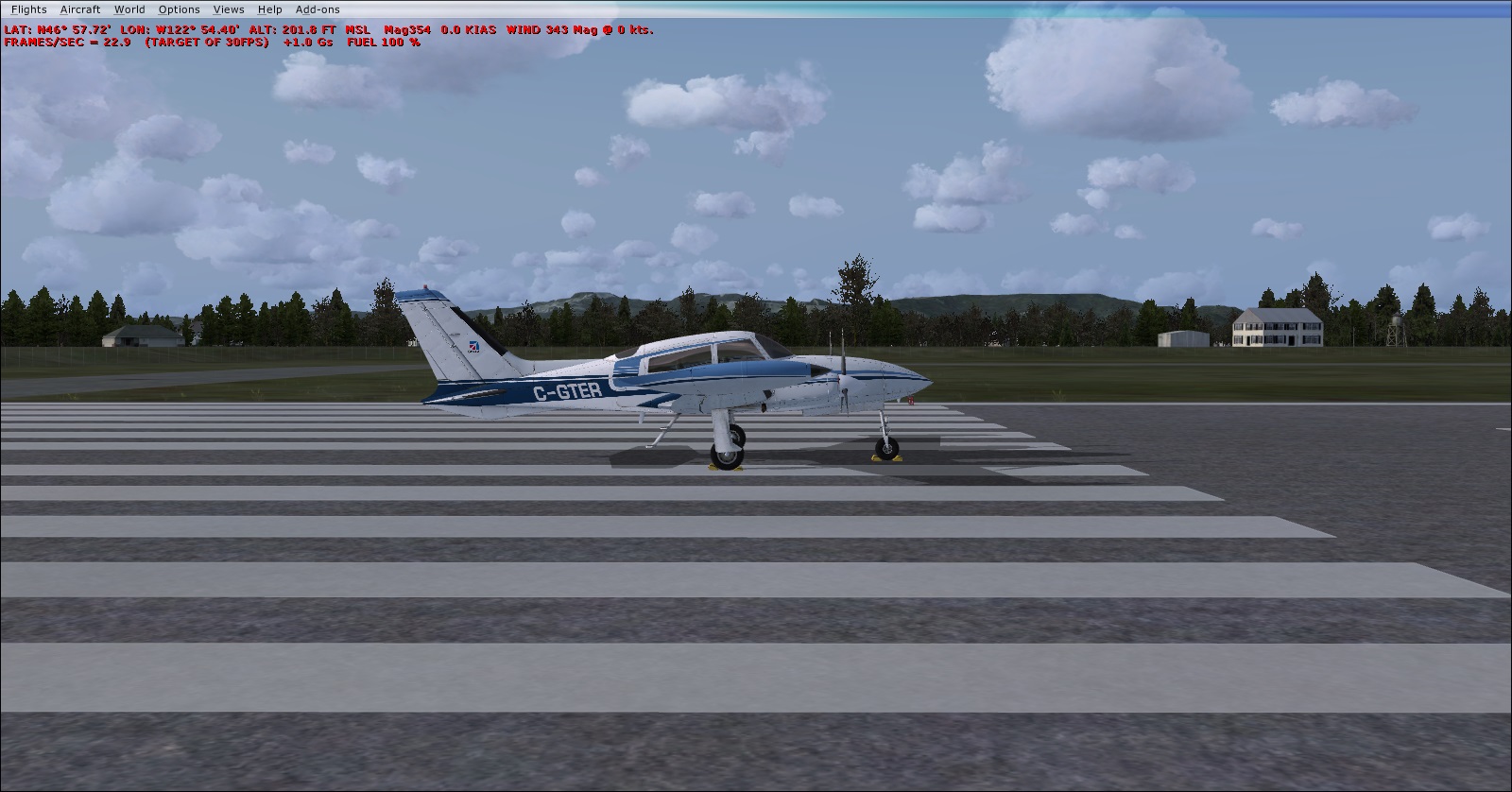

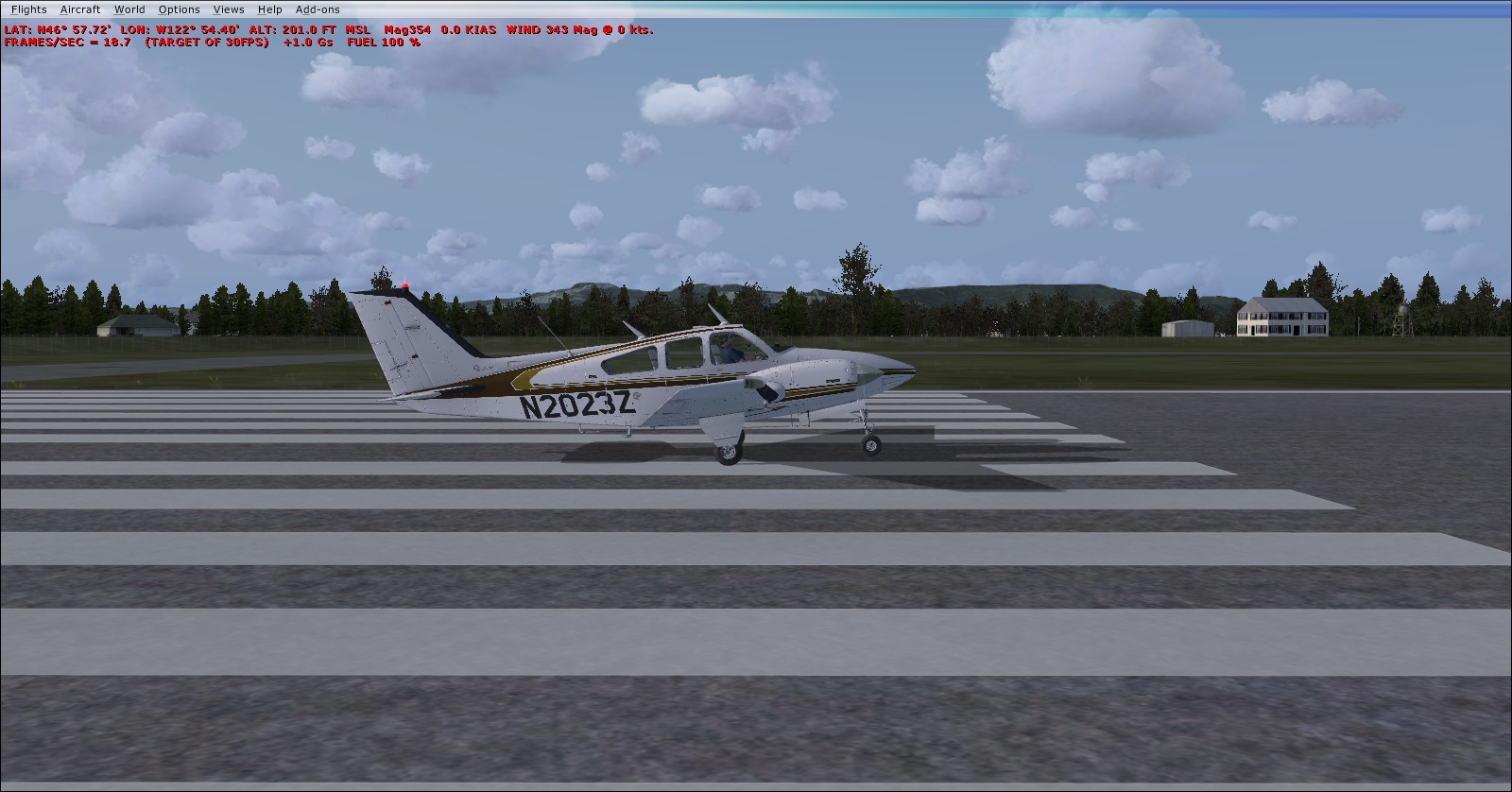

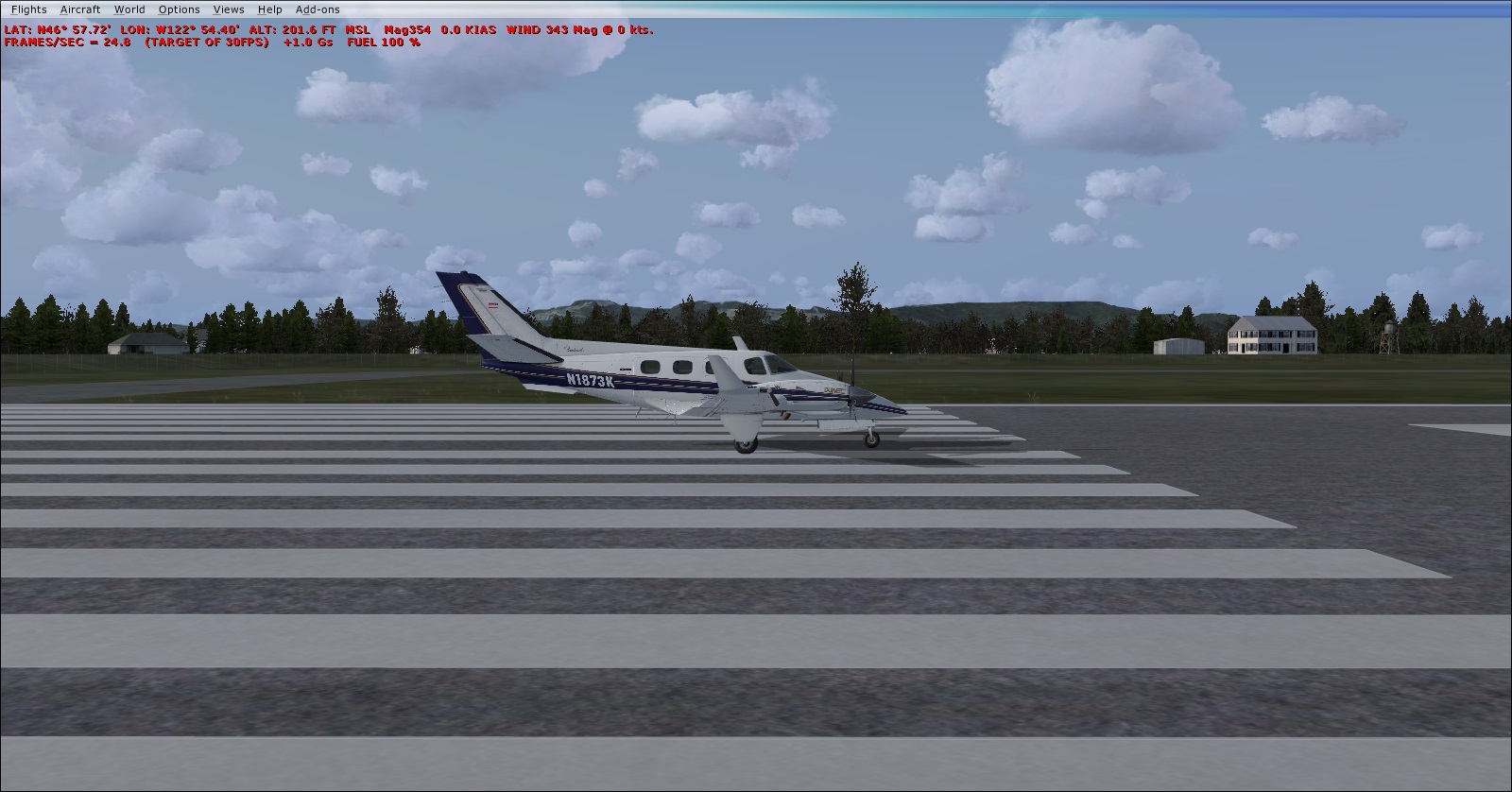

Do you get some jaggies with SGSS turned off?  I seem to get it with my Milviz B55 and C310R (images attached), as well as the Duke v2, while the textures seem very smooth with the default C172 and the Turbine Duke.



I currently have AA checked in FSX, with Anisotropic filtering.  The Inspector settings used in my screenshots are below.









Share this post


Link to post
Share on other sites

With SGSS turned if my sim is still quite smooth looking.

I'll have a look at my Inspector settings a bit later to compare but I can see one thing standing out:



'Antialiasing - Mode' should be set to 'Application Controlled' or something along those lines. Next setting down should be the same. At least thats how I have Inspector set I'm sure and my image quality is fairly good. I'm sure I got these settings from the Avsim Hardware and Software guide.



Just out of curiosity, what setting for AA do you have set in the DX10 fixer?



Also, there is a new build out, Build 29, and on Steve's wordpress site it claims to have better SGSS performance in clouds.

Share this post


Link to post
Share on other sites

Ok, here's my current inspector settings. Note I've turned on SGSS x2, I'm currently testing this out with the latest fixer to test performance, it was off and I was getting good FPS and smoothness in pretty much every situation. My AA setting withing the DX10 fixer is 4x.


Share this post


Link to post
Share on other sites

This is a good Inspector setup for DX10, Jaime, but (just one note!) when you set SGSS the amount of Texture Filtering - LOD Bias (DX) needs to be matched to the amount of SGSS set. This little chart below, will show you that amount, and in your case - just drop it back to -0.5.



2x MSAA + 2x SGSSAA: -0.500

4x MSAA + 4x SGSSAA: -1.000

8x MSAA + 8x SGSSAA: -1.500



All the Best,



pj

Share this post


Link to post
Share on other sites

@Paul J

the DX10 "How-To" guide is the most serious and well thought out FSX guide imo, and you've just proved it once again! :wink:



cheers!



p.s. I'm just noticeing how incredibly better the sim runs w/o 4096 textures and how next to insignificant the IQ loss actually is, at least on my system (but I'm absolutely positive this can be true for many configurations out there). Heck, even a well created 512x512 grass add-on .bmp texture looks and blends in perfectly fine.

Share this post


Link to post
Share on other sites

@ jlindbe



Are those aircraft textures mipmapped? I would guess not. I am sure that if they had mipmaps then they would appear better than that.

Share this post


Link to post
Share on other sites

Thanks Steve didn't think of that. I'll give it a try when I get home.

Share this post


Link to post
Share on other sites

Thanks Steve didn't think of that. I'll give it a try when I get home.

Thanks Steve didn't think of that. I'll give it a try when I get home.

Thanks Steve didn't think of that. I'll give it a try when I get home.

Share this post


Link to post
Share on other sites

Thanks Steve didn't think of that. I'll give it a try when I get home.





Hey dude what are your scenery settings ? Are you using any add ons ? I am asking as I have almost a similar laptop which is an i5 2430 1GB Nvidia 525m, I am using the laptop right now because my mobo has gone for replacement and expecting it back on Monday.



I am using only NL2000 and pull comfortable fps but with mid-sets. Not using DX10 as i do not want to keep spending on FSX anymore as I am going to XPX , but sometimes you feel like firing her up for a spin.  So just want to check if I can use the SGSS and stuff. of course i am on HDE v2 Clouds and there are amazing.

Share this post


Link to post
Share on other sites

It doesnt make much noticeable difference, but every little counts...



Steve asked jlindbe if his textures were mipped.... here are some docs with info on mips, some tools , and what needs mipping, and some more how-to..



These docs are a bit ragged, with pieces taken from various posts and notes from all kinds of sources, so apologies for not crediting any particular author if you recognize your work: Contact me if you wish, and we'll fix it up. I do intend to spend some time to make them "presentable" in the near future.



Regards,



pj

Share this post


Link to post
Share on other sites

@Paul J

the DX10 "How-To" guide is the most serious and well thought out FSX guide imo,



p.s. I'm just noticeing how incredibly better the sim runs w/o 4096 textures and how next to insignificant the IQ loss actually is, at least on my system (but I'm absolutely positive this can be true for many configurations out there). Heck, even a well created 512x512 grass add-on .bmp texture looks and blends in perfectly fine.



Thanks, Lurk - the reward comes when I see folks like yourself being successful using DX10, and then jumping into the forums, helping others - as you have been, and displaying such obvious enthusiasm for this super hobby!



It makes this "job" (sic) so easy!



All the Best,



pj
