November 4, 20214 yr Hi, i always wondered why i never seem to find any information regarding the maximum landing distance at disponibel on the ILS charts ? Runway + What do you real pilots do to confirm that you are within the limits (besides EFB i know) Michael Moe Edited November 4, 20214 yr by Michael Moe Michael Moe
November 4, 20214 yr It's on the airport diagram. Bob Scott | President and CEO, AVSIM Inc ATP Gulfstream II-III-IV-V Sys1 (MSFS20+24/XPlane12+11): AMD 9800X3D, water 2x240mm, MSI MPG X670E Carbon, 64GB GSkill 6000/30, nVidia RTX4090FE Alienware AW3821DW 38" 21:9 GSync, 2x4TB Crucial T705 PCIe5 + 2x2TB Samsung 990 SSD, EVGA 1000P2 PSU, 12.9" iPad Pro Thrustmaster TCA Boeing Yoke, TCA Airbus Sidestick, Twin TCA Airbus Throttle quads, PFC Cirrus Pedals, Coolermaster HAF932 case Sys2 (P3Dv5/v4): i9-13900KS, water 2x360mm, ASUS Z790 Hero, 32GB GSkill 7800MHz CAS36, ASUS RTX4090 Samsung 55" JS8500 4K TV@60Hz, 3x 2TB WD SN850X 1x 4TB Crucial P3 M.2 NVME SSD, EVGA 1600T2 PSU Fiber link to Yamaha RX-V467 Home Theater Receiver, Polk/Klipsch 6" bookshelf speakers, Polk 12" subwoofer, 12.9" iPad Pro PFC yoke/throttle quad/pedals with custom Hall sensor retrofit, Thermaltake View 71 case, Stream Deck XL button box Sys3 (DCS/P3Dv4/ATS/ETS): AMD 7800X3D, MSI MPG X870E Carbon, Noctua NH-D15S, 64GB GSkill 6000/30, EVGA RTX3090 Alienware AW3420DW 34" 21:9 GSync, Corsair HX1000i PSU, 4TB Crucial T705 PCIe5 + 2TB Samsung 970Evo Plus, TM TCA Officer Pack, Saitek combat pedals, TM Warthog, TM RS300 FF wheel/pedals, Coolermaster HAF XB case
November 4, 20214 yr 1 hour ago, Michael Moe said: Hi, i always wondered why i never seem to find any information regarding the maximum landing distance at disponibel on the ILS charts ? Runway + What do you real pilots do to confirm that you are within the limits (besides EFB i know) Michael Moe Hi Michael, You can find the landing distance available on the FAA approach plates (header strip "Rwy Ldg"). It is also indicated below the airport diagram on the Jeppesen charts (Navigraph if you've invested in the service) in the section "Additional Information". The figure mentioned on the airport diagram is the length of the runway surface, not necessarily the landing distance available (e.g. displaced threshold). Edited November 4, 20214 yr by GearUp180 FAA Aviation Handbooks & Manuals Airbus Documentation: A320 SmartCockpit | Flight Operations Support and Training Standards (WIN)
November 5, 20214 yr Author 12 hours ago, GearUp180 said: Hi Michael, You can find the landing distance available on the FAA approach plates (header strip "Rwy Ldg"). It is also indicated below the airport diagram on the Jeppesen charts (Navigraph if you've invested in the service) in the section "Additional Information". The figure mentioned on the airport diagram is the length of the runway surface, not necessarily the landing distance available (e.g. displaced threshold). Hi and Thanks 🙂 I do have Navigraph and cant find the information at ESGG for instance . Takeoff distance is shown . i wonder just why the LDA is not present on the APP charts as it would make it a lot more intuitive Thanks Michael Moe Michael Moe

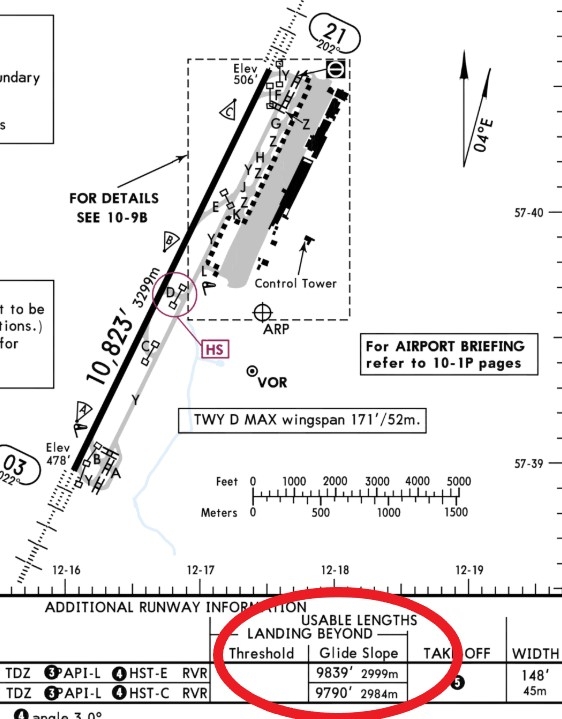

November 6, 20214 yr Well...landing distance available is right there. Bob Scott | President and CEO, AVSIM Inc ATP Gulfstream II-III-IV-V Sys1 (MSFS20+24/XPlane12+11): AMD 9800X3D, water 2x240mm, MSI MPG X670E Carbon, 64GB GSkill 6000/30, nVidia RTX4090FE Alienware AW3821DW 38" 21:9 GSync, 2x4TB Crucial T705 PCIe5 + 2x2TB Samsung 990 SSD, EVGA 1000P2 PSU, 12.9" iPad Pro Thrustmaster TCA Boeing Yoke, TCA Airbus Sidestick, Twin TCA Airbus Throttle quads, PFC Cirrus Pedals, Coolermaster HAF932 case Sys2 (P3Dv5/v4): i9-13900KS, water 2x360mm, ASUS Z790 Hero, 32GB GSkill 7800MHz CAS36, ASUS RTX4090 Samsung 55" JS8500 4K TV@60Hz, 3x 2TB WD SN850X 1x 4TB Crucial P3 M.2 NVME SSD, EVGA 1600T2 PSU Fiber link to Yamaha RX-V467 Home Theater Receiver, Polk/Klipsch 6" bookshelf speakers, Polk 12" subwoofer, 12.9" iPad Pro PFC yoke/throttle quad/pedals with custom Hall sensor retrofit, Thermaltake View 71 case, Stream Deck XL button box Sys3 (DCS/P3Dv4/ATS/ETS): AMD 7800X3D, MSI MPG X870E Carbon, Noctua NH-D15S, 64GB GSkill 6000/30, EVGA RTX3090 Alienware AW3420DW 34" 21:9 GSync, Corsair HX1000i PSU, 4TB Crucial T705 PCIe5 + 2TB Samsung 970Evo Plus, TM TCA Officer Pack, Saitek combat pedals, TM Warthog, TM RS300 FF wheel/pedals, Coolermaster HAF XB case
