Hello all,

I have an issue with the visual representation of the rudder pedal on the kodiak. Visualy it seems like there is a right input on the pedal. I don't feel this right input on the plane however, it flight straight no problem.

Do you have the same issue than I have ? Is it a bug or for whatever reason is it normal that the right pedal seems to be applied.

Here below a pick, my ruder is neutral and there is no trim whatsoever.

Same here.

If you switch to outside view, do you have the same visual displacement on the rudder?

No the rudder is centered. But looking at some shot from the real aircraft it seems that there is also this weird impression in the real aircraft. Not too sure the reason why.

4 hours ago, Bushido5 said:

Hello all,

I have an issue with the visual representation of the rudder pedal on the kodiak. Visualy it seems like there is a right input on the pedal. I don't feel this right input on the plane however, it flight straight no problem.

Do you have the same issue than I have ? Is it a bug or for whatever reason is it normal that the right pedal seems to be applied.

Here below a pick, my ruder is neutral and there is no trim whatsoever.

Kodiak rudders are not symmetrical by design. The right one is placed little bit forward. So it's not a bug it's actual feature

Thanks @sd_flyer, do you know the reason for such design ?



EDIT:

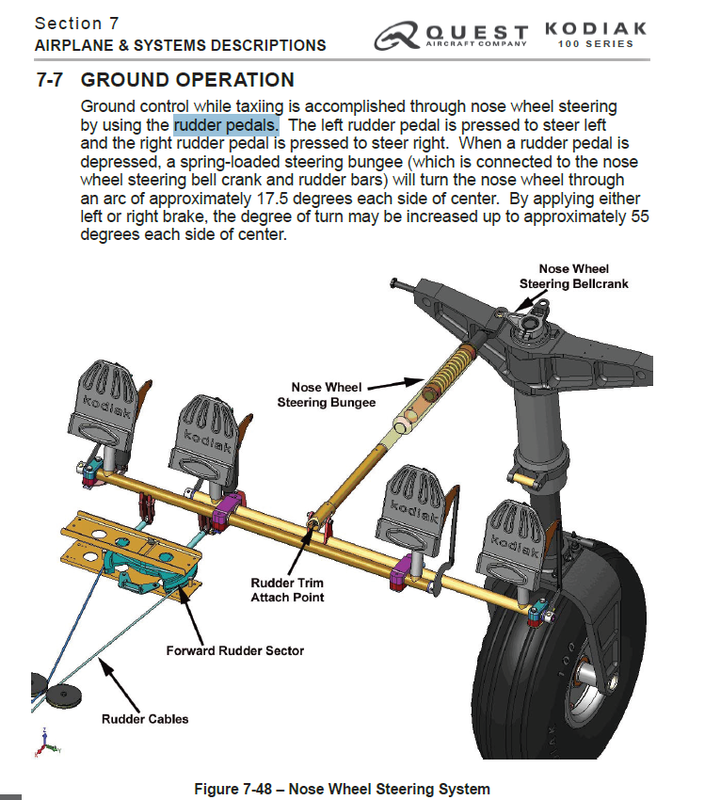

Got an explanation from another forum, just a simplified design to the max so that you can repair easily:

Edited January 20, 20224 yr by Bushido5
answering my own question

1 hour ago, Bushido5 said:

Thanks @sd_flyer, do you know the reason for such design ?



EDIT:

Got an explanation from another forum, just a simplified design to the max so that you can repair easily:

I believe it's due left turning tendencies of PT6
