3 hours ago, mgr said:

Hi,

Sorry to bother again about this topic. Done some flight recently and got the feeling the AOA indicaton is still a bit to high in relation to the airspeed.

Get around 10% too high airspeed on approach. Am wondering can this be tweaked with the code or do i have to modify the air-file so you get a different pitch when extending the gear and flaps (which will result in different angle of attack versus speed).



Regards,

Marcel



Marcel,  Don't know.. either might work - have a look!

What Speed-Values on each Flap-Position do you expect in the middle of the AOA Indicator?

0° / ? kts
15°/ ? kts
30°/ ? kts
40°/ ? kts

12 hours ago, Raller said:

What Speed-Values on each Flap-Position do you expect in the middle of the AOA Indicator?

0° / ? kts
15°/ ? kts
30°/ ? kts
40°/ ? kts

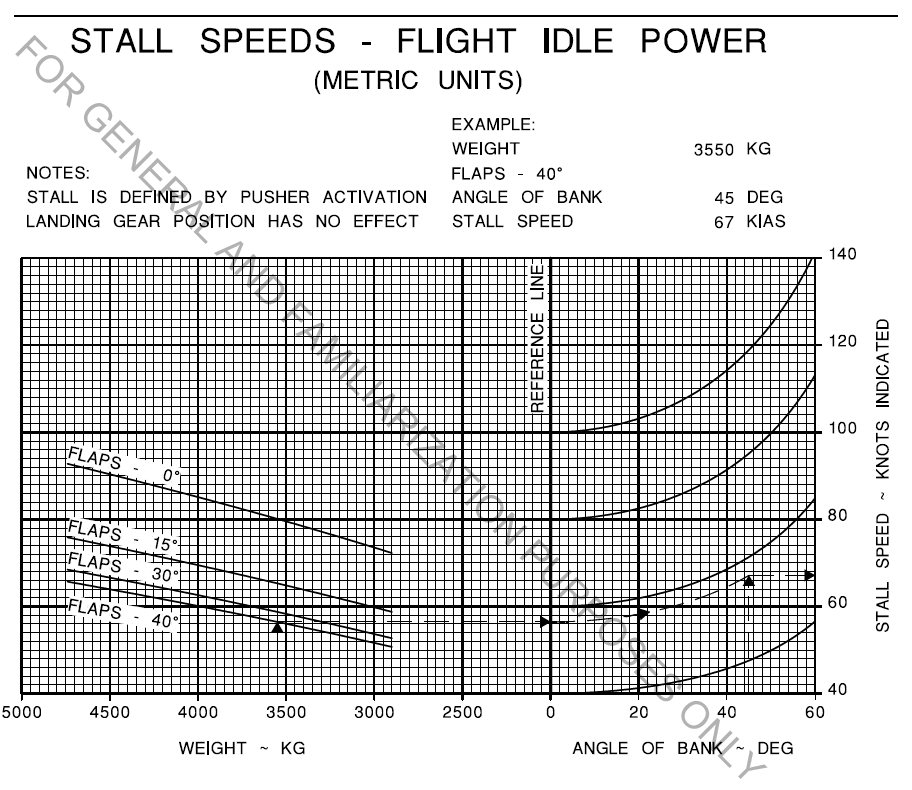

The values quoted earlier. At MLW (4500 kg) 118, 98, 89, 84 kts

Basicly the values of his table, multiplied  1.3

Just thought could it be the "new" flaps values could they mess things up a bit?

Quote

[Flaps.0]
type=1
lift_scalar = 0.7   // new
drag_scalar = 1.9  // new
pitch_scalar = 0.8 // new
span-outboard=    0.7   // Percent span for flap position
extending-time=    25   // Seconds, time to fully extend
system_type=        0   // 0 = electrical
damaging-speed  = 170                                  // KIAS
blowout-speed   = 175                                  // KIAS
flaps-position.0=   0   // degrees
flaps-position.1=  15   // degrees
flaps-position.2=  30   // degrees
flaps-position.3=  40   // degrees

Regards,

Marcel





On 23.11.2017 at 10:17 PM, Raller said:

<Script>(A:SIM ON GROUND,bool)  if{ 0 } els{ (A:Angle of attack indicator, number) 2.25 - (A:TRAILING EDGE FLAPS LEFT ANGLE,radians) - /-/ }</Script>

Now i get these values:
0°  /118kts
15°/96
30°/88
40°/81

Tata... free to try



Try the codeline above.

With the Value "2.25" you can slightly change the results. (i.e. 2.20 or 2.30)

1 hour ago, mgr said:

Just thought could it be the "new" flaps values could they mess things up a bit?

Could be...

...your guess was correct.

These entries
[Flaps.0]
lift_scalar = 0.7   // new
drag_scalar = 1.9  // new
pitch_scalar = 0.8 // new

cause the AOA indicaton to be a bit to high in relation to the airspeed. I don't use these entries...

Hi Raller,

2 hours ago, Raller said:

...your guess was correct.

cause the AOA indicaton to be a bit to high in relation to the airspeed. I don't use these entries...

Thanks for confirming this. Will start to fiddle with the values, hope to get it also right with the new flap entries.

Marcel
