Hello Again,

I have just added LNM to my Navigraph mappings.

I read the user guide and followed the instructions of creating a path to:

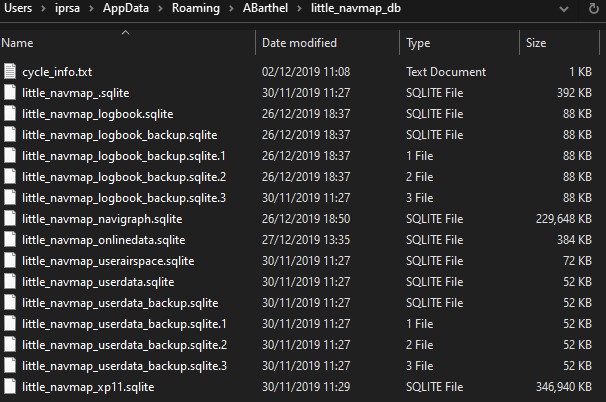

drive:/user/username/appdata/roaming/ABarthel, and pointed Navigraph to that folder, I do not see the proc folder and txt files associated
with Navigraph AIRACS. Strangely in the in the little_navmap_db where the instructions said not to put anything in.. I can see
the cycle txt file from Navigraph.

Is there somewhere in LNM I can check to see if the current AIRAC 1913 rev1 has been installed correctly.
or can someone tell me what I am doing wrong?

Happy Holidays

Kalibra









Clive.

Share this post


Link to post
Share on other sites

Clive,

Not sure what you mean about "creating a path..." I assume you mean you created the path in Navigraph FMS Data Manager Addon Mappings. I don't recall having to do that, as I thought Navigraph automatically recognizes the LNM data path - of course I could be mistaken.

In LNM top menu select "Scenery Library". Item (2) for me shows: "Navigraph - AIRAC Cycle 1913" with dropdown to select database options. What do you see there?

Kind Regards,


Steven_Miller.png?dl=1

i7-6700k Gigabyte GA-Z170X-UD5 32GB DDR4 2666 ASUS ROG-STRIX GTX1070

Share this post


Link to post
Share on other sites

Hi, yes that is what I meant, and when I looked in Scenery library I can see AIRAC 1913.

Thank you for the help

Regards





Clive.

Share this post


Link to post
Share on other sites
46 minutes ago, Kalibra said:

Hi, yes that is what I meant, and when I looked in Scenery library I can see AIRAC 1913.

Then is is successfully installed.

Here is a description how to create a manual add-on mapping in the FMS Data Manager: https://albar965.github.io/littlenavmap_navigraph.html
Just in case.

Happy Holidays to you all too!

Alex

Share this post


Link to post
Share on other sites

Hey guys: I have a similar problem with AIRAC update...

LNM 2.4.5. via FSM data manager seems OK updated to 2005 rev1 but LNM still shows AIRAC Cycle 1708 :(

screen:
https://www.dropbox.com/s/0gtrdpdh5rly895/Screenshot%202020-05-05%2002.21.23.jpg?dl=0

Thank you for help

Share this post


Link to post
Share on other sites
11 hours ago, PickNickCz said:

LNM 2.4.5. via FSM data manager seems OK updated to 2005 rev1 but LNM still shows AIRAC Cycle 1708 😞

Safest way is to download the manual update "Little NavMap - native**" from here and unzip it. Then copy the file "little_navmap_navigraph.sqlite" to the folder "C:\Users\YOURUSERNAME\AppData\Roaming\ABarthel\little_navmap_db" and overwrite the old file "little_navmap_navigraph.sqlite".

Alex

Share this post


Link to post
Share on other sites

Hi Albar.. I too am having the update Airac issue but on a Mac. I have a current Navigraph sub which is  Airac 2006 r1 and I followed all of the update procedures above yet Little Nav Map is still showing either 1708 or 1801.

What have I missed?

Thank you..

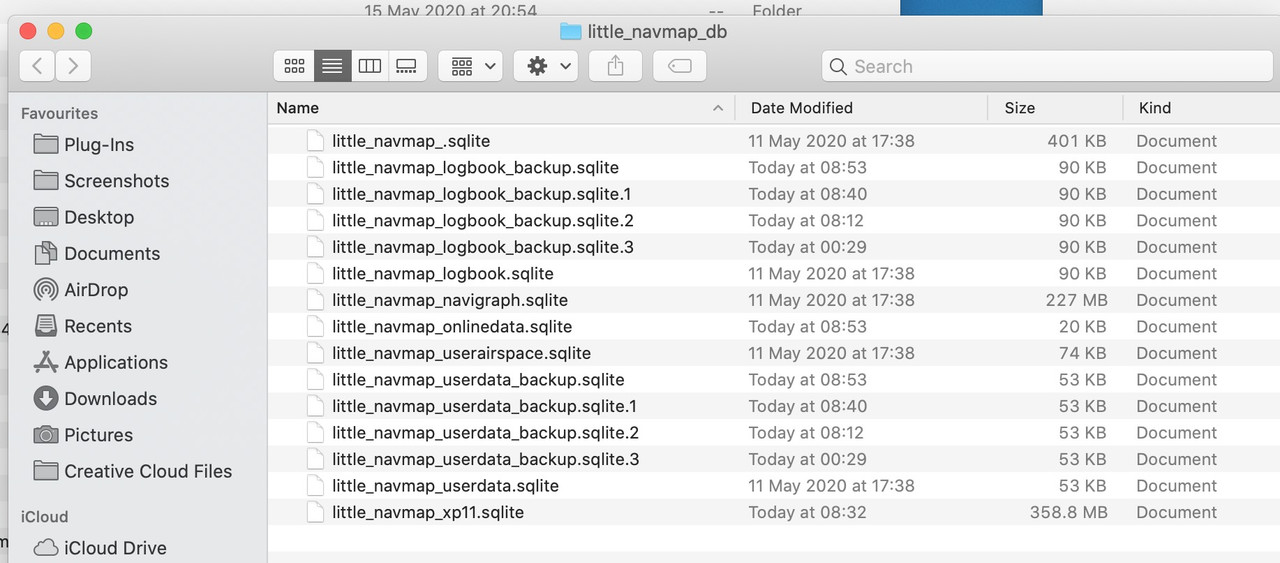

Screenshot-2020-06-09-at-08-25-55.jpg.

Share this post


Link to post
Share on other sites

Went through the whole process again. Same result, still stuck with 1801














Share this post


Link to post
Share on other sites

@Max01 Do not forget to exit LNM before updating.

Also have a look here: https://albar965.github.io/littlenavmap_navigraph.html

Alternatively use the manual install: https://www.navigraph.com/FMSDataManualInstall.aspx
This is the safest way to install. Download the archive Little NavMap - native** and uncompress it.
Exit LNM, put the Sqlite file into the database folder and overwrite the current file. This should fix it.

Alex
