I have the Honeycomb Throttle and I would like to set Button 24 (at bottom of axis) to 'set throttle 1 axis to 0.0' to activate GND FINE mode in the Black Square Starship.

The throttle is programmed by the developer so that:

• 0.0 to 0.15 = GND FINE only
• 0.15 to 1.0 = IDLE - 100 (starts at 15%)
• -0.1 to 0.0 = Reverser

Q1. How can I achieve the following two options?

• Option A: Set Button 24 to Set Throttle Axis to 0.0 to activate GND FINE mode?
• Option B: Set Button 24 to Set Full Reverse Thrust?

Q2. If I adjust 'Input ranges: Center:' to 1%, I activate the full range of throttle axis from full reverse to full forward, why?

Thank you



Throttle Range GND FINE to 100

Throttle Range IDLE -100

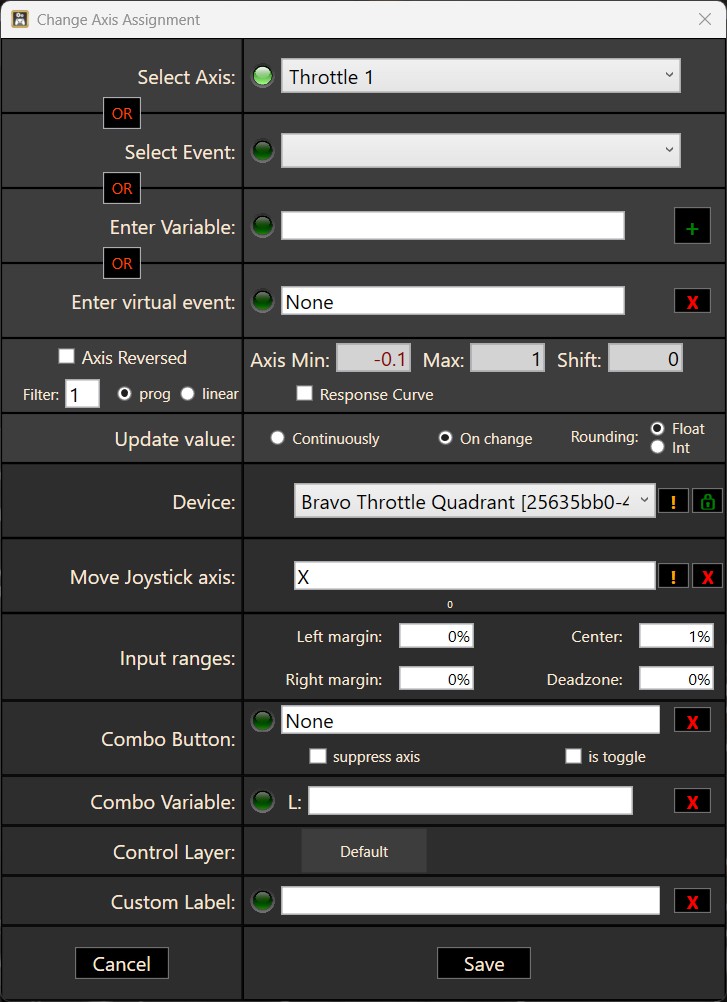

Throttle Range Full Reverse to 100



Edited July 15, 2025Jul 15 by toby23

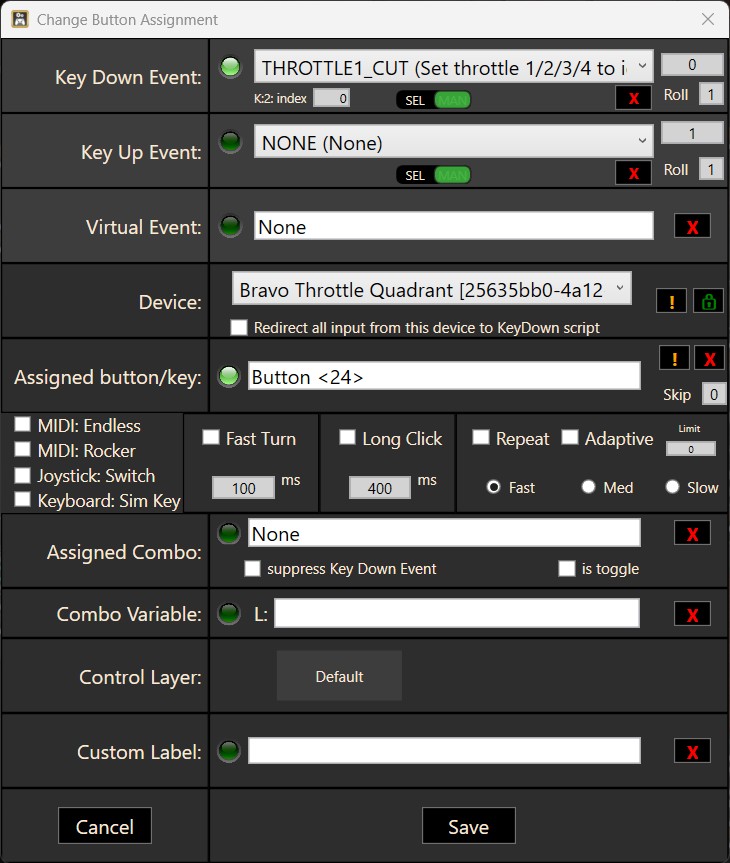

I found out that the Throttle Cut assignment, assigned to Button 24 will set the Throttle to GND FINE (0.0), so that's one thing solved.

54 minutes ago, toby23 said:

Q2. If I adjust 'Input ranges: Center:' to 1%, I activate the full range of throttle axis from full reverse to full forward, why?

Because you are only adjusting the Input side of the assignment. The Output is controlled by Axis Min and Axis Max

59 minutes ago, toby23 said:

Option B: Set Button 24 to Set Full Reverse Thrust?

-0.1 (>A:GENERAL ENG THROTTLE LEVER POSITION:1, Position)

No need to create a script just for that, you can enter the RPN code directly at the button assignment by switching the green button to MAN.
