OK  - I've captured 20 shots of the various stages from pre TOD to turn-off from the video.  I'll attach them over a number of posts with what I'm seeing and doing at each stage if folks are interested?  I can also post the video, maybe at the end, if anyone wants to see the steps in continuity - although the visuals won't be great.

If folks are still interested, I'll post the first few stages in the morning (UK time).  And I won't be at all offended if anyone shouts "STOP!!  NO MORE!!"

As I say, shout if this gets tedious.

The general disclaimer - this are simply the steps I have taken to successfully 'auto land' 6-7 times.  Each time I generally make at least one error (probably many more) and this example is no exception!    I'll point it out when I get to it.  I gather, also, it is NOT the way real-world pilots would normally land the A350 - this is more related to where I found the bits in the IniBuild's modelling to actually get it on the ground (after trying numerous times before and NOT getting it on the ground  )

The flight:

EGKK (London Gatwick) R26L to EBBR (Brussels) R25R

Video/Photos Start at:

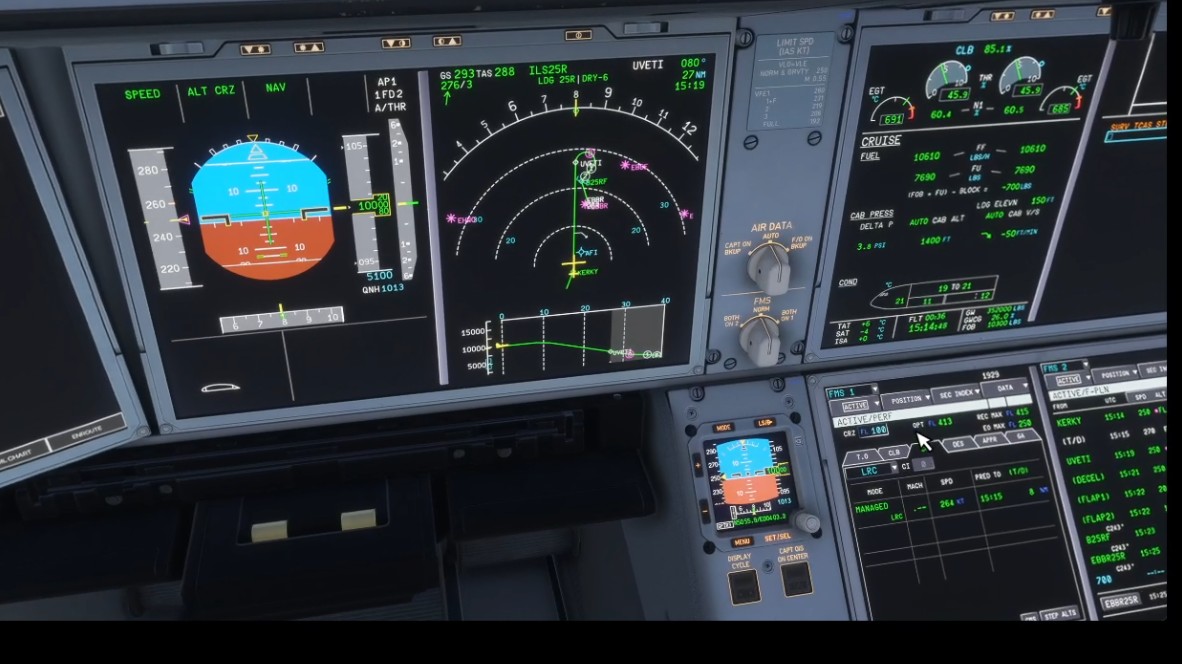

Around 10 miles from TOD from 10000ft.  The route will pass the airport at the right and then do a descending right hand turn, and then left turn before capturing the ILS:





I don't think RW pilots do it quite like this, but shortly before TOD I will trigger the descent by turning the ALT down to 2000', which is the height where the first final approach waypoint of the ILS system is set at.  I will then press the ALT knob to put it into 'Managed' mode.

Now around 2 miles from TOD:

So now press the ALT knob, set at 2000', to trigger 'Managed' mode :

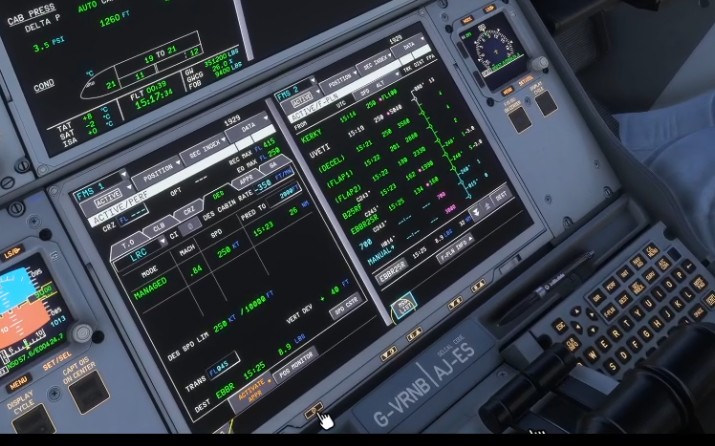

I have my two pedestal displays showing the Flight Plan on the Co-pilot screen and the Perf pages, including the essential orange-lettered 'Activate Appr' button on the Captain's screen:



Next post, I'll press that button (the Orange one - ignore the 'hand' that appears to be just about to send the panel into darkness!) and show you what happened next!

Edited February 26Feb 26 by AJZip2

I'm not quite sure when is the best/correct time to 'Activate Appr' in the flight management system (not the Appr button on the autopilot panel, that is done at the usual stage), but I triggered mine pretty soon after starting the TOD descent.

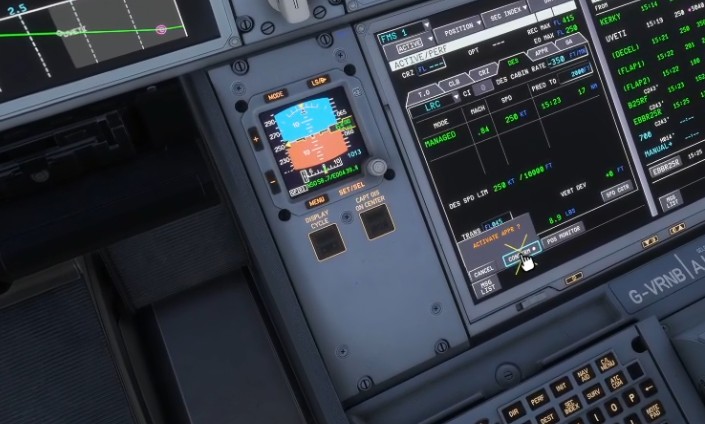

I pressed the 'Activate Appr?' button and the resulting 'Confirm' pop up:

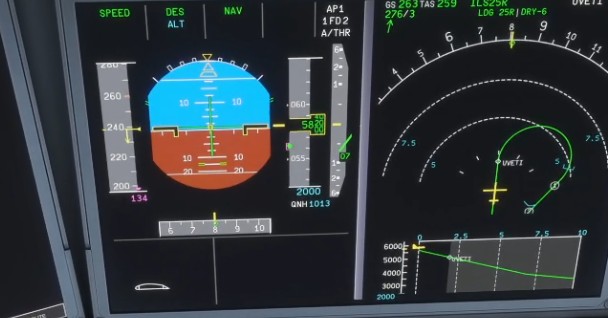

The aircraft was already following the glide path, but now the engine speed management kicked in too with an intended reduction from 240 knots to, eventually, 134 knots landing speed.  A magenta bracket (teeny line on the left of the green ball in this shot) appeared next to the green dot on the Alt gauge, I believe confirming that all was in normal range in terms of glide slope capture.  However, you can see that the green ball is below the centre line on the altitude scale, meaning that the aircraft was now above the flight plan glide slope...and the green ball still dropping meant that this gap was getting bigger.

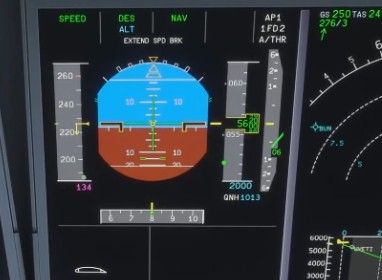

From my understanding, when the magenta bracket disappears from the green ball, it means that the FMS can't correct this itself and now needs pilot intervention.  Basically, I guess, the aircraft is going too fast for this descent to be automatically corrected.  And, sure enough, the next event was the instruction to 'EXTEND SPEED BRK' (see below and note also the magenta bracket has disappeared from the green ball).  I gather that application of speedbrakes is non-preferred practice in the RW as it adds fuel inefficiency - and I'm speculating that this is why RW pilots tend to step down the altitudes progressively rather than do what I did - which was basically saying to the FMS "I've got you to 10000' feet; I've told you to drop to 2000'...oh and I'm going very fast...so over to YOU FMS!!'

Anyway, the FMS wasn't having anything to do with what I'd got it into and told me to do MY job and slow down!



And so, speed brakes were applied, the speed started dropping and the green ball started rising again as my overshoot was corrected.  As I started approaching this stage's planned speed of just under 190 knots, the magenta bracket returned and all was good in the world again.

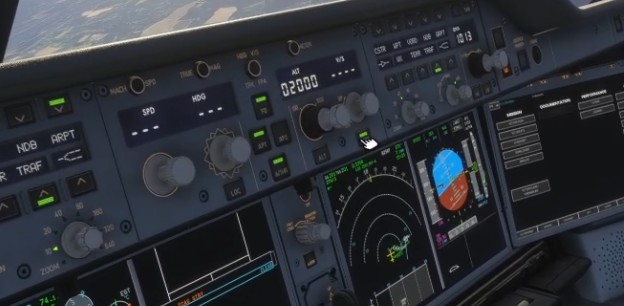

Speed brakes were retracted in preparation for the next step - activating APPR on the autopilot panel (this time, the little cursor hand is in the correct place!).

And here is a confession - by now the "LS" Landing System buttons were supposed to also both be on.  And they were in my previous efforts.  This try was the best capture for the video and I have left it as is.  It didn't seem to make any difference to the landing itself (my previous attempts had always had them switched on) but I now recognise there was a warning beep and light that came on and so, clearly, the aircraft also knew it was supposed to be activated.

Anyway, with APPR now pressed, the ILS info and magenta diamond appeared:





So far, so good.  All being well, the next post should have us preparing for landing, activating ILS and touchdown...

Edited February 26Feb 26 by AJZip2

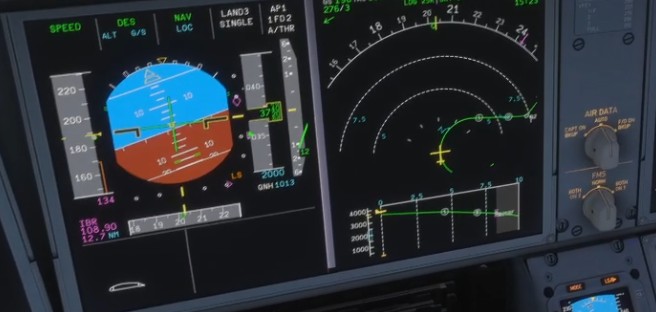

So, the green ball is back in auto-manageable range with it's magenta bracket once again visible and the ILS frequency and range  are showing, with the magenta diamond slowly approaching the mid line  of the altitude gauge.  In terms of FMS, the aircraft is still a little high but can now be managed down to the intended flight path automatically, providing that I, the pilot, also do what is required of me.



And one of those things is dropping the flaps and undercarriage when I am supposed to!

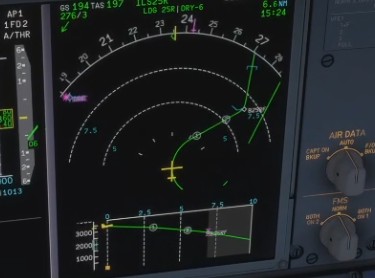

The FMS display helps - it shows when Flaps 1 and 2 should be lowered.  Here you can also see the initial waypoint of the ILS:

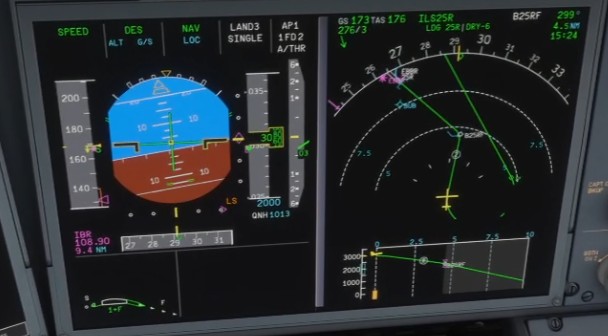

Both the ILS diamond and the green ball are at or near the target centre line and I have now dropped Flaps 1.  We are approaching ILS waypoint B25R and the auto speed has now triggered the drop towards landing speed.  I will progressively drop to Flap 2 and then Flap 3

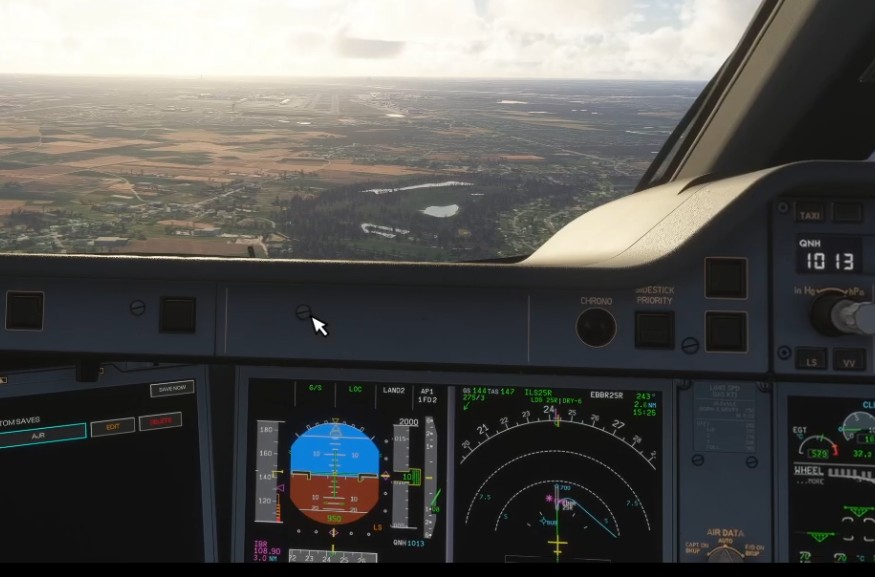

ILS is captured and the runway is in sight.  Previous attempts showed the G/S and LOC  as G/S* and LOC*  This shot doesn't have that...it might be because I'd forgotten to turn on the LS Landing system on or maybe because I have just turned OFF the Auto Throttle.  That said, the aircraft is still following the ILS Glide Path



At about 500'  I also turned off the autopilot and hand landed, just adding a touch of flare out, landing quite softly just above minimum speed.

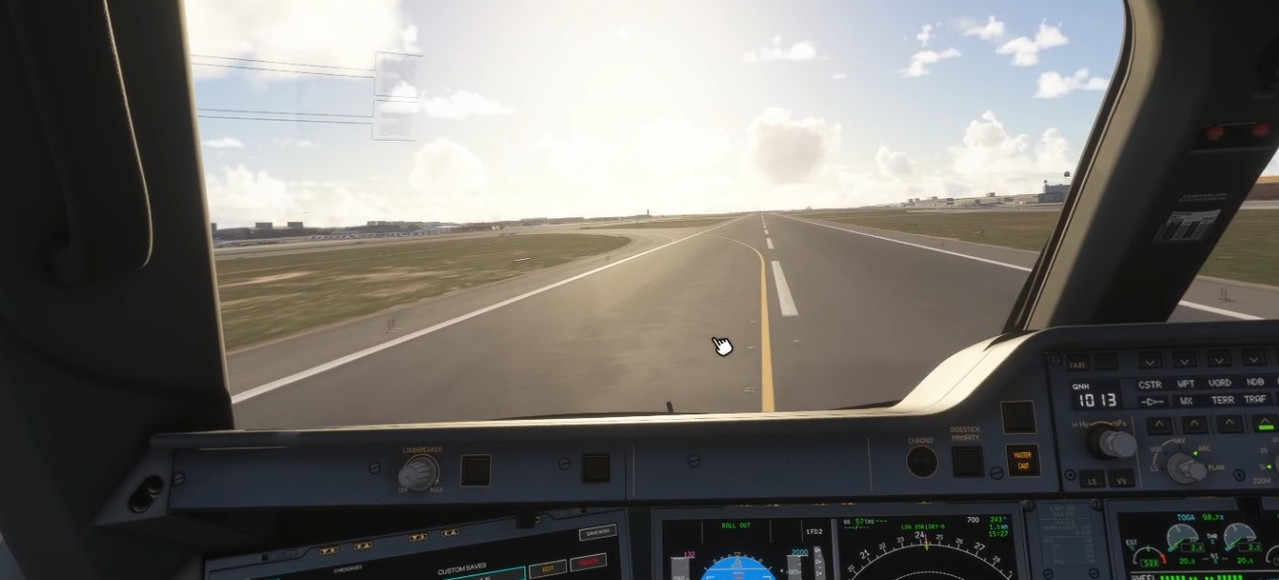

Autobrakes came on, I applied reverse thrust and was able to turn off here, I'm guessing around 2/3rds down the runway:



And that's it!  All are very welcome to point out errors in this - I won't be offended and will learn how its supposed to be done.

If anyone wants to see the video these stills have come from then happy to post it, but be aware that the compression of the video renders most instrument detail largely unreadable.

Thank you for your patience if you've made it this far

Oh and thanks once more to @P_7878 for passing on @Jack_Sawyer 's discovery of PostImages.org - it worked an absolute treat!!
