mh8794

3 monitors: which views to use

Recommended Posts

Hey all,



i want to use 3 screens to run fsx, with the two side screens to show side views of the cockpit and the center view to show to forward view. In case i don't need to see the cockpt itself (separate hardware or screens to display gauges, pannel, mcp, ...), which views do i need to use to make this happen?



I have a GTX680 4GB videocard.



Regards


My goal is to have as much peripheral view as possible (as in a real plane).



Regards

Share this post


Link to post
Share on other sites

Depends, are you running FS in full screen or windowed? I use three but the side two are for popups/Acars/SB. I only run P3D on my main screen at 2560x1600. I've found adding two undocked views really drags my fps down to an unusable point.



GTX690 on my machine.

Share this post


Link to post
Share on other sites

Depends, are you running FS in full screen or windowed? I use three but the side two are for popups/Acars/SB. I only run P3D on my main screen at 2560x1600. I've found adding two undocked views really drags my fps down to an unusable point.



GTX690 on my machine.

I am using full screen.

Share this post


Link to post
Share on other sites

Hi,



I run a triple monitor setup at 5760x1200 via surround and V/C. I use 2D popup panels (when needed) for aft overhead, overhead, pedestal, FMC via buttons on my yoke and close them when I'm done. Then its back to the V/C.

Share this post


Link to post
Share on other sites

I am using full screen.



I am not sure how to do it full screen unless you run something like triple head to go and use 3 monitors as 1.

Share this post


Link to post
Share on other sites

Hi,



It depends on your hardware. I have a GTX 690 that is capable of running my three monitors full screen via surround. Prior to me purchasing the GTX690 I used the TH2Go Digital, but it's max resolution was lower than the 690 so I don't use the TH2Go anymore.



Just looked at your PC setup, you have a GTX690, so you don't need a TH2Go, just connect the three monitors to your GTX690 and run via surround.





I am not sure how to do it full screen unless you run something like triple head to go and use 3 monitors as 1.

Share this post


Link to post
Share on other sites

Hi,



It depends on your hardware. I have a GTX 690 that is capable of running my three monitors full screen via surround. Prior to me purchasing the GTX690 I used the TH2Go Digital, but it's max resolution was lower than the 690 so I don't use the TH2Go anymore.



Just looked at your PC setup, you have a GTX690, so you don't need a TH2Go, just connect the three monitors to your GTX690 and run via surround.

 Hi Mike,



My two outer screens are at 1920x1080 vs my main is 2560x1600. I use windowed which really suits me well, I was referring to the OP's post about how to do it in full screen. But now that I think of it, you can use surround or the ATI offering which I think is Eyefinity?

Share this post


Link to post
Share on other sites

 Hi Mike,



My two outer screens are at 1920x1080 vs my main is 2560x1600. I use windowed which really suits me well, I was referring to the OP's post about how to do it in full screen. But now that I think of it, you can use surround or the ATI offering which I think is Eyefinity?

i have nvidia so it is surround. But what i mean by view is, VC view or cockpit view, ... just to have to outside view without panel etc.

Also the problem i have if i undock panel to another screen, whenever i save and reload the flight the panels are back in the original place.



I tought that when saving the flight, the panels would stay in the same place and you could load it as a default flight each time...

Share this post


Link to post
Share on other sites

Hey all,



i want to use 3 screens to run fsx, with the two side screens to show side views of the cockpit and the center view to show to forward view. In case i don't need to see the cockpt itself (separate hardware or screens to display gauges, pannel, mcp, ...), which views do i need to use to make this happen?



I have a GTX680 4GB videocard.



Regards

My goal is to have as much peripheral view as possible (as in a real plane).



Regards



Also keep in mind all three monitors must be the same resolution and refresh rate. I found it best when I did mine was to purchase three exact monitors.



I'm also assuming you really want one large view with three monitors. Not three monitors with popups on them.



I've had mines running for some time so my setup is old school. I have two GTX460 running in SLI mode and I turned surround video on within graphic properties. Since I'm using nvidia...you'll want to read up on surround video...it's really cool.



-Ray

i have nvidia so it is surround. But what i mean by view is, VC view or cockpit view, ... just to have to outside view without panel etc.

Also the problem i have if i undock panel to another screen, whenever i save and reload the flight the panels are back in the original place.



I tought that when saving the flight, the panels would stay in the same place and you could load it as a default flight each time...

Panels do not save.



There's a VC cockpit view and there's a outside view...normally hitting F10. I find that this doesn't work at all using surround video...without adjusting panel sizes, because they're are by default not setup for your newer larger resolution.



-Ray

Share this post


Link to post
Share on other sites

Hi,



If you are undocking 2D panels and want them to stay where you put them (a select monitor) and/or alter their size, you will have to edit your panel.cfg file. I had to do this for all my 2D panels so they show correctly and on the correct monitor.



To give you an idea on what I'm talking about, take a look at my FSX PMDG 737 panel.cfg file. Now compare this with PMDG's original. You will see changes in size and position. Also keep in mind this is not a complete panel.cfg file, it just has the 2d areas, some edited some not.



// Main panel
//
[Window00]
size_mm=1920, 1200
window_size= 0.333, 1.000
position=7
visible=1
ident=MAIN_PANEL

gauge00=PMDG_737NGX!CaptainGlareshieldEdge,     684, 410, 1236, 26, MAIN
gauge01=PMDG_737NGX!LeftGlareshieldEdge,        304, 414, 380,  89, MAIN
gauge02=PMDG_737NGX!LeftGlareshieldEdge1,       219, 503, 236,  98, MAIN
gauge03=PMDG_737NGX!CaptainColumn,             1476,   0, 230, 410, MAIN
gauge04=PMDG_737NGX!ClockSwitch,                  0, 520, 219, 157, MAIN
gauge05=PMDG_737NGX!ChronometerPanel,             0, 667, 219, 523, L #1 MAIN
gauge06=PMDG_737NGX!DU,                         219, 776, 451, 424, LEFT_OUTBD #1 MAIN
gauge07=PMDG_737NGX!DU,                         670, 776, 451, 424, LEFT_INBD #2 MAIN
gauge08=PMDG_737NGX!DU,                        1345, 776, 451, 424, UPPER #3 MAIN
gauge09=PMDG_737NGX!Standby,                   1122, 601, 221, 599, MAIN
gauge10=PMDG_737NGX!GearPanel,                 1796, 601, 123, 599, MAIN
gauge11=PMDG_737NGX!DSP_Captain,                219, 601, 903, 175, MAIN
gauge12=PMDG_737NGX!MainMisc,                  1343, 602, 453, 175, MAIN
gauge13=PMDG_737NGX!MasterCautionSystem_Captain,455, 503, 229,  98, MAIN
gauge14=PMDG_737NGX!EFIS_Captain,               684, 436, 285, 165, MAIN
gauge15=PMDG_737NGX!MCP,                        969, 436,1099, 165, MAIN
gauge16=PMDG_737NGX!LightSensor,                  0,   0,   4,   4

//
// Lower Main
//
[Window01]
BACKGROUND_COLOR=35,35,35
size_mm=1920,260
window_size = 0.333, 0.2166667
position=6
visible=0
ident=401
zorder=90

gauge00=PMDG_737NGX!LwrMain,    0, 0, 1128, 260
gauge01=PMDG_737NGX!GPWS,    1129, 0,  791, 260

//
// CDU (Left)
//
[Window02]
BACKGROUND_COLOR=0,0,0
size_mm=385,600
window_size=0.08000, 0.55000 // 0.20052, 0.50000
window_pos=0.58675, 0.45900
//position=1
visible=0
ident=402
zorder=99

gauge00=PMDG_737NGX!CDU,0,0,385,600,L #0

//
// Aft Electronic Panel
//
[Window03]
BACKGROUND_COLOR=100,100,100
size_mm=1128, 1200
window_size=0.33334, 1.000 //0.58750, 1.000
position=1
visible=0
ident=403
zorder=89

gauge00=PMDG_737NGX!COMMSRadioPanel,          0,   0, 382, 190
gauge01=PMDG_737NGX!NAVRadioPanel,            0, 190, 382, 164
gauge02=PMDG_737NGX!AudioControl,             0, 354, 382, 286
gauge03=PMDG_737NGX!ADFRadioPanel,            0, 640, 382, 166
gauge04=PMDG_737NGX!SELCALPanel,              0, 806, 382, 233
gauge05=PMDG_737NGX!PedestalLightsControls,   0,1039, 382, 161
gauge06=PMDG_737NGX!CargoFire,              382,   0, 366, 355
gauge07=PMDG_737NGX!HUD_CP,                 382, 355, 366, 383
gauge08=PMDG_737NGX!Transponder,            382, 738, 366, 141
gauge09=PMDG_737NGX!TrimControls,           382, 879, 366, 321
gauge10=PMDG_737NGX!COMMSRadioPanelFO,      748,   0, 380, 190
gauge11=PMDG_737NGX!NAVRadioPanelFO,        748, 190, 380, 165
gauge12=PMDG_737NGX!AudioControlFO,         748, 355, 380, 285
gauge13=PMDG_737NGX!COMMSRadioPanelOBS,     748, 640, 380, 404
gauge14=PMDG_737NGX!FltDkDoor,            748,1044, 380, 156

//
// Fire Protection
//
[Window04]
BACKGROUND_COLOR=100,100,100
size_mm=800, 234
window_size = 0.41667, 0.19500
position=7
visible=0
ident=404
zorder=92

gauge00=PMDG_737NGX!FireProtection, 0, 0, 800, 234

//
// Fowrawrd Overhead
//
[Window05]
size_mm=1920,1200
window_size= 0.334, 1.000
position=1
visible=0
ident=405
zorder=85

gauge00=PMDG_737NGX!LeftOvhdSide,      0,    0,  420, 1200
gauge01=PMDG_737NGX!RightOvhdSide,   1517,   0,  403, 1200
gauge02=PMDG_737NGX!TopOvhd,          421,   0, 1096,   75
gauge03=PMDG_737NGX!FlightControls,   420,  76,  249,  348
gauge04=PMDG_737NGX!NavDisp,          420, 425,  249,  255
gauge05=PMDG_737NGX!Fuel,             420, 681,  249,  371
gauge06=PMDG_737NGX!Electric,         670,  76,  241,  976
gauge07=PMDG_737NGX!OvhdCtr,          912,  76,  115,  976
gauge08=PMDG_737NGX!AntiIce,         1028,  76,  237,  394
gauge09=PMDG_737NGX!Hydraulics,      1028, 471,  237,  145
gauge10=PMDG_737NGX!Doors,           1028, 617,  237,   96
gauge11=PMDG_737NGX!CVR,             1028, 714,  237,   90
gauge12=PMDG_737NGX!CabinAltPanel,   1028, 805,  237,  247
gauge13=PMDG_737NGX!Lights,           420,1053, 1097,  147
gauge14=PMDG_737NGX!CabinPress,      1266, 743,  250,  309
gauge15=PMDG_737NGX!BleedAir,        1266, 425,  250,  317
gauge16=PMDG_737NGX!AirCond,         1266,  76,  250,  348

//
// Aft Overhead
//
[Window06]
BACKGROUND_COLOR=30,30,30
size_mm=1081, 584
window_size=0.3333333, 0.4866667 //0.5630208, 0.4866667
position=1
visible=0
ident=406
zorder=97

gauge00=PMDG_737NGX!BottomAftOvhd,        0, 488, 1081, 97
gauge01=PMDG_737NGX!FltRec_Warning,        836,   0, 245, 487
gauge02=PMDG_737NGX!ServiceInterphone,  483,   0, 111, 487
gauge03=PMDG_737NGX!EngineControl,      594, 247, 242, 113
gauge04=PMDG_737NGX!AudioControlOVHD,   594,   0, 242, 247
gauge05=PMDG_737NGX!Oxygen,                594, 360, 242, 128
gauge06=PMDG_737NGX!LEDevices,           0,    0, 243, 488
gauge07=PMDG_737NGX!ISDU,              243,    0, 240, 488

//
// Overhead Lights
//
[Window07]
BACKGROUND_COLOR=30,30,30
size_mm=1097, 147
window_size = 0.5713542, 0.1225000
position=2
visible=0
ident=407
zorder=97

gauge00=PMDG_737NGX!Lights, 0, 0, 1097, 147, 1

//
// Lower DU
//
[Window08]
BACKGROUND_COLOR=30,30,30
size_mm=451, 424
window_size = 0.2348958, 0.3533333
position=8
visible=0
ident=408
zorder=95

gauge00=PMDG_737NGX!DU, 0, 0, 451, 424, LOWER #4

//
// MCP
//
[Window09]
BACKGROUND_COLOR=30,30,30
size_mm=1099, 165
window_size = 0.5723958, 0.1375000
window_pos = 0.42969, 0.36333
visible=0
ident=409
zorder=83

gauge00=PMDG_737NGX!MCP, 0, 0, 1099, 165, 1

//
// Radios
//
[Window10]
size_mm=382,947
window_size=0.1989583, 0.7891667
position=6
visible=0
ident=421
zorder=89
gauge00=PMDG_737NGX!COMMSRadioPanel,  0,   0, 382, 190, 1
gauge01=PMDG_737NGX!NAVRadioPanel,    0, 190, 382, 164, 1
gauge02=PMDG_737NGX!AudioControl,     0, 354, 382, 286, 1
gauge03=PMDG_737NGX!ADFRadioPanel,    0, 640, 382, 166, 1
gauge04=PMDG_737NGX!Transponder,     12, 806, 366, 141, 1


//
// Zoomed Left Outboard DU
//
[Window11]
BACKGROUND_COLOR=30,30,30
size_mm=555, 555
window_size = 0.28906, 0.46250
position=3
visible=0
ident=410
zorder=95

gauge00=PMDG_737NGX!DU, -57, -48, 677, 636, 1 LEFT_OUTBD #11 ZOOM

//
// Zoomed Left Inboard DU
//
[Window12]
BACKGROUND_COLOR=30,30,30
size_mm=555, 555
window_size = 0.28906, 0.46250
position=4
visible=0
ident=411
zorder=95

gauge00=PMDG_737NGX!DU, -57, -48, 677, 636, 1 LEFT_INBD #12 ZOOM

//
// Zoomed Upper DU
//
[Window13]
BACKGROUND_COLOR=30,30,30
size_mm=555, 555
window_size = 0.28906, 0.46250
position=5
visible=0
ident=412
zorder=95

gauge00=PMDG_737NGX!DU, -57, -48, 677, 636, 1 UPPER #13 ZOOM

//
// Zoomed Lower DU
//
[Window14]
BACKGROUND_COLOR=30,30,30
size_mm=555, 555
window_size = 0.28906, 0.46250
position=8
visible=0
ident=413
zorder=95

gauge00=PMDG_737NGX!DU, -57, -48, 677, 636, 1 LOWER #14 ZOOM

//
// Zoomed Right Inboard DU
//
[Window15]
BACKGROUND_COLOR=30,30,30
size_mm=555, 555
window_size = 0.28906, 0.46250
position=1
visible=0
ident=414
zorder=95

gauge00=PMDG_737NGX!DU, -57, -48, 677, 636, 1 RIGHT_INBD #15 ZOOM

//
// Zoomed Right Outboard DU
//
[Window16]
BACKGROUND_COLOR=30,30,30
size_mm=555, 555
window_size = 0.28906, 0.46250
position=2
visible=0
ident=415
zorder=95

gauge00=PMDG_737NGX!DU, -57, -48, 677, 636, 1 RIGHT_OUTBD #16 ZOOM

//
// CDU (Right)
//
[Window17]
BACKGROUND_COLOR=0,0,0
size_mm=385,600
window_size= 0.20052, 0.50000
position=2
visible=0
ident=420
zorder=99

gauge00=PMDG_737NGX!CDU, 0,0,385,600,R #0

//
// Mini Panel
//
[Window18]
Background_color=0,0,0
size_mm=1600,1200
position=4
visible=1
nomenu=1
ident=MINIPANEL
alpha_blend=1.0

gauge00=hud!hud,  190, 395, 1225, 894

//
// Light Sensor
//
[Window19]
BACKGROUND_COLOR=100,100,100
size_mm=4, 4
position=0
nomenu=1
visible=1
ident=499
zorder=99

gauge00=PMDG_737NGX!LightSensor, 0,   0,   4,   4

//
// Logic
//
[Window20]
BACKGROUND_COLOR=100,100,100
size_mm=1, 1
position=2
visible=0
nomenu=1
ident=444
zorder=90

gauge00=PMDG_737NGX_3!Logic,  0,   0,   1,      1











i have nvidia so it is surround. But what i mean by view is, VC view or cockpit view, ... just to have to outside view without panel etc.

Also the problem i have if i undock panel to another screen, whenever i save and reload the flight the panels are back in the original place.



I tought that when saving the flight, the panels would stay in the same place and you could load it as a default flight each time...

Share this post


Link to post
Share on other sites

If you have a single large monitor, consider multiple views on one screen!

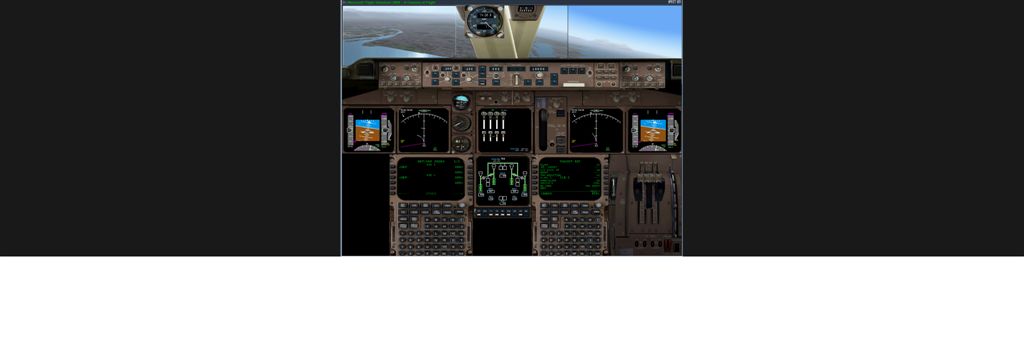

The pic shows FS9 "PMDG 747 aloft near Vancouver" running on my old 1.8 Ghz PC, with triple views - LFwd,Fwd,RFwd - plus the 1st officer's panel and all popups!

Flew OK except the 17" LCD monitor was just too small to be practical. Should work not badly with a screen in the 37-40" range.

(Black squares are monitors 2 & 3 of my triple mon config- not in use for this experiment. Make sure each view occupies exactly one third of the screen width.

Double windscreen post is caused by displaying both Captain & 1st Officer views- just curiosity to see if it could be done- developers please note!)

(As a side note, the Consumer Electronics show this year displayed a very large flat screen that bends itself into a curved screen at the touch of a button! Bring MONEY!)

january


Share this post


Link to post
Share on other sites






i have nvidia so it is surround.



You could have problems using Surround for the Cockpit: Cockpit View (i.e. without the VC showing).



Depending on the plane I often get the mouse busy cursor come on

when bringing up the Cockpit View on my Surround system.

The sim then grinds down to a jerky super low frame rate.



You might be better keeping the monitors as three separate ones and creating separate aligned views for each one.

The plus to this is you will get much less distortion of the outer views for the same field of view, as compared to Surround.

The downside is that three separate views is more graphically demanding than one Surround view.

Also the horizon will not be straight when you bank or climb/dive.



gb.

Share this post


Link to post
Share on other sites

i have nvidia so it is surround. But what i mean by view is, VC view or cockpit view, ... just to have to outside view without panel etc.

Also the problem i have if i undock panel to another screen, whenever i save and reload the flight the panels are back in the original place.



I tought that when saving the flight, the panels would stay in the same place and you could load it as a default flight each time...





You could have problems using Surround for the Cockpit: Cockpit View (i.e. without the VC showing).



You might be better keeping the monitors as three separate ones and creating separate aligned views for each one.



gb.





Ooops.. just realised that the VC returns when you look left/right when in the Cockpit View.



One work-around might be to go back to the VC view and shift the eyepoint way forward outside the cockpit, just in front of the plane's nose.

Depending on the plane the change in perspective might not be a problem.



gb.

Share this post


Link to post
Share on other sites

..mh879, are you flying heavies, or GA ???

Hi, i am mainly flying the PMDG 737 NGX.

Share this post


Link to post
Share on other sites

×
×
  • Create New...
