Have you seen the RXP GTN in the cockpit?

Recommended Posts

Hi, I was preparing RC2 updates and making some test flights with the latest XP11.1 RC1, when I realized:

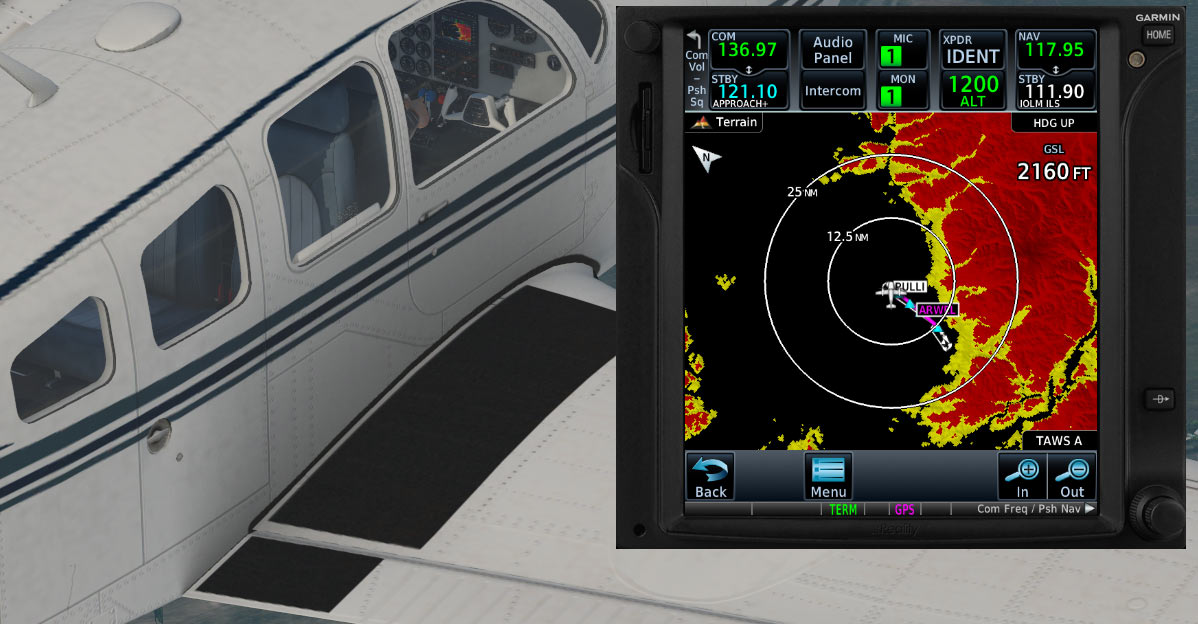

The GTN updates live from the external view!


No impact on the FPS! XP11 is really a slick piece of software!

Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

Which XP11 plane is that? Just bought the XP GTN, so I have not had the time to use it yet.

Share this post


Link to post
Share on other sites

This is the default Baron 58 with the GTN displaying over the default GNS screen!

Share this post


Link to post
Share on other sites
30 minutes ago, RXP said:

This is the default Baron 58 with the GTN displaying over the default GNS screen!

Thanks, I am assuming that it's a user mod, where do I find that info?

Share this post


Link to post
Share on other sites

It is just a simple manual edit of the RealityXP.GTN.ini for dev purposes ;-) nothing more.

Create a RealityXP.GTN.ini in "X-Plane 11/Aircraft/Laminar Research/Baron B58/" (or edit the existing if any) with this content:

[GTN]
; comma separated list of gauges
gauges = GTN_750_1

[GTN_750_1]
; comma separated list of render targets.
drawto = WINDOW, Garmin_530_screen
; is the master device if true.
MasterDevice = false
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 2
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; reduce screen update rate by half.
ReduceRate = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course if true.
LinkCrs = true
; connects HSI OBS to GPS if true.
LinkObs = true
; connects GPS to VOR if true.
LinkVor = false
; connects GPS to Autopilot if true.
LinkOto = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; enables automatic GPS/VLOC selection.
AutoSelect = true
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to Audio Panel if true.
UseAudioPanel = true
; connects GPS to Transponder if true.
UseTransponder = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets transponder VFR code (octal default: #1200).
VFRcode = #1200
; sets fuel type: AVGAS,JETA,JETB,DIESEL
FuelType = AVGAS
; sets ownship icon type:
; AUTO,LOW_WING,HIGH_WING,KIT_PLANE,TURBOPROP,TWIN_ENGINE,SINGLE_JET,BUSINESS_JET,2BLADES,3BLADES,4BLADES,ARROW
OwnshipIcon = AUTO
; sets TAWS type: TERR,TAWS_B,TAWS_A
TawsMode = TAWS_A
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; TAWS approach air speed (knots), -1 (auto detect Vref: 116)
TawsApprSpeed = 116
; TAWS maximum flap extension speed (knots) or -1 (auto detect Vfe: 152)
TawsFlapSpeed = 152
; TAWS maximum gear extension speed (knots) or -1 (auto detect Vle: 152)
TawsGearSpeed = 152
; sets voice type: MALE,FEMALE
VoicePref = MALE
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; selects the default database: 0: 'Garmin (North America)', 1: 'Jeppesen (Worldwide)'
NavDbType = 0
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = false
; avionics bus source index (1 to 16) or always on.
AvionicsBus = 1
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = MAIN_BATTERY

[GTN_750_1.WINDOW]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1199,914,570,543
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false

[GTN_750_1.Garmin_530_screen]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 275,666,260,190
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #ff0000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button).
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false



Share this post


Link to post
Share on other sites
On 11/28/2017 at 8:21 PM, RXP said:

frame.rect = 1199,914,570,543

How does one determine these values from the aircraft folder ?



On 11/28/2017 at 8:21 PM, RXP said:

frame.rect = 275,666,260,190

Same question here.  I read through the user manual and it does not have any info on how one would go about doing this?

Thanks

Share this post


Link to post
Share on other sites

Hi, it is not documented in the GTN manual, but in the GNS V2 manual only for now.

You can download the XPlane manual from our website (down the GNS V2 page), and look at the last chapters and the Baron 58 tutorial!
