P3D v3.1 Performance Testing (RESULTS with 8-Core CPU) (Updated)

Recommended Posts

Hi,



A few of you will be aware that I started another thread recently introducing this somewhat contentious topic as it applies to an 8-Cored CPU: http://www.avsim.com/topic/483992-8-core-cpu-performance-data-fps-delta-prepar3d-v31/



Some very helpful advice and guidance has been posted in that thread and it soon became clear that I needed to take this a stage further in an effort to cast further light on my experience.



Very few of you have invested in an 8-cored CPU like the i7-5960x. The majority are using 4-cored CPUs and a fewer number have the 6-cored variety. So, and quite understandably, attention tends to be focused on these units as FSX, and now Prepar3D, have been shown to work optimally using 4 unmasked cores with Hyperthreading enabled in the System BIOS. Yet my subjective observations appear to suggest that Prepar3D, has the ability to spread active threads over more cores and still deliver a smooth visual experience providing Hyperthreading has been disabled. All the theory states that this should not be the case and flies in the face of hard data retrieved to date.



At this stage I feel it is best not to labour the point so I will crack on and present my method and results. The data was collected using Ideal Flight 10 Professional and processed by Microsoft Excel. IF10 Pro allows the user to set the time interval over which data is collected and this was set to 120secs. IF10 Pro is capable of consistent weather generation and this feature was employed to ensure unchanging repeatability using the two scenarios which were created specifically for testing.



Each TestFlight used the Prepar3D default Beach Baron 58 and started paused at an altitude of 2000ft. The first flight begins over Seattle (KSEA) and the second a few miles NW of Eglin (KVPS). Autopilot was engaged in each saved TestFlight scenario. In the first, the B58 banks slowly to heading 180 degrees from the initial heading and, in the second, the B58 banks to heading 90 degrees from the initial heading.



PILOT'S FS Global 2010 FTX Compatible, ORBX FTX Global, Global Vector and FTX Trees HD were all active for both scenarios.



FTX Global Vector (Active Features):

Transportation: Highways (all), Primary Roads (all)

Water Features: Small Rivers & Streams)

Various Features: Beaches, Golf Courses, Parks, Power Lines

Airport Elevation Corrections: Any conflicts automatically disabled



Air Traffic Manager was used to restrict air traffic to a target count of 30 for each TestFlight.



Prepar3D.exe (32) Process Lasso Rules:

1. Excluded from ProBalance Restraint

2. Classified as a Game

3. Application Power Profile: High Performance



Each 8 minute procedure lead to the 2 minute collection TestFlight. As a demonstration of the procedure followed I recorded a 7.5 minute video showing an example for a TestFlight NW of Eglin (KVPS). The flight ends following an overfly of nearby Eglin Test Site B6 (FL34). The video will display up to and including 108p60, the higher the better! Be patient, sometime it may appear as if nothing is happening. Grab a hot (or cold) beverage and watch :smile:



http://youtu.be/9rFRzxqzUHo



Unless otherwise stated, GPU SLI remained enabled for each test.



KSEA is harder on frame rates than KVPS. I thought it would be useful for comparison purposes to include both test areas. Stuttering, when it occurred, always seemed likely under more demanding conditions such as that imposed by Scenery and the plethora of Objects at KSEA and Seattle.



RESULTS:



NOTE: Unless otherwise stated, Antialiasing - Transparency Supersampling: 4x Sparse Grid Supersampling (SGSSAA) remained enabled for each test. This was matched with MSAA = 4 samples in Prepar3D.



EFSA = ExpandedFSAffinity. This entry appears in the Config.ini file of IF10 Pro under [FSSetup]. The default setting is 'True'. Perhaps Steve Waite will be kind enough to explain its significance. I was asked to test with an Affinity Mask:1360 and Hyperthreading: Enabled using EFSA=True and EFSA=False.



Prepar3D v3.1 Settings:








Prepar3D World Maps showing TestFlight start points:






FPS Delta results from original thread (see first paragraph) taken at (KSEA) - included as a reminder of the original testing results, this time in expanded line graph form:

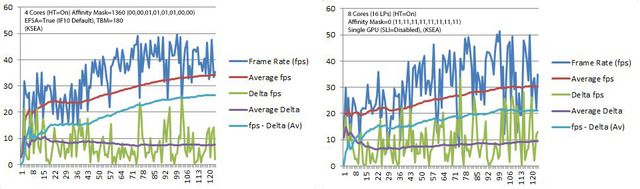

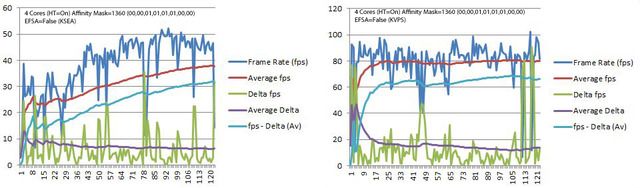

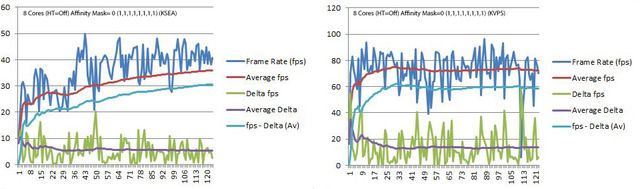

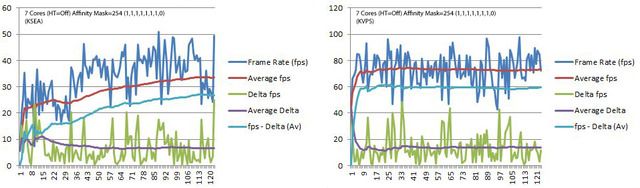

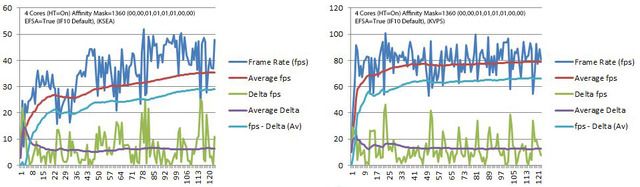

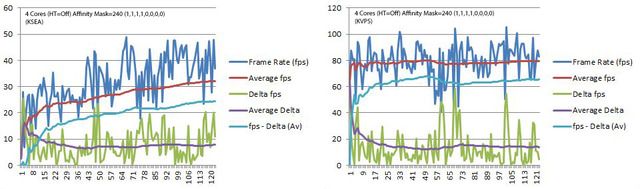

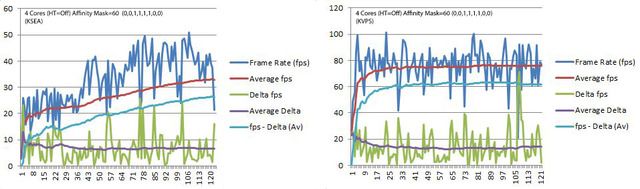

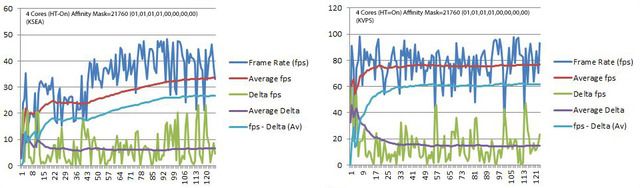

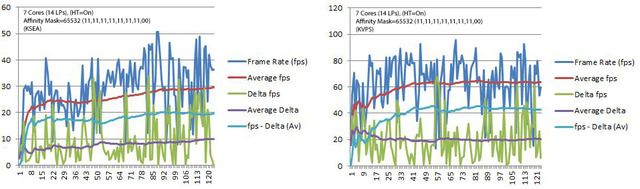

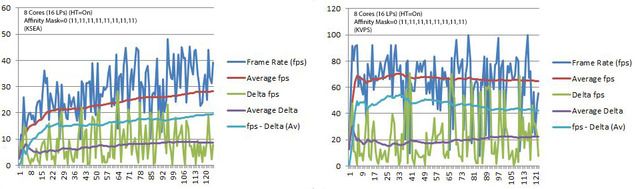

Compilation of latest results with Hyperthreading enabled/disabled and using various Affinity Masks:















The NVIDIA Inspector Prepar3D profile was returned to default NVIDIA settings (No SGSSAA):












Maxwell sample interleaving (MFAA): Enabled in the NVIDIA Inspector Prepar3D profile. SGSSAA: 2x selected in the NVIDIA Inspector Prepar3D profile. MSAA: 2 Samples selected in Prepar3D:



PerfData_Line%20Graphs%20MFAA-On%204_1.j



Hopefully, the included text added to each of the above images will be self-explanatory.



My System Specs are as below in the signature area.

Monitor Resolution: 2560x1440x32. GSync: Disabled



As stated at the beginning of this post my impression is that the smoothest, most fluid performance is achieved with 8 Cores active and Hyperthreading: Disabled. 7 Cores with masking of Core 0 may be marginally better. 4 Cores in any configuration produced, at times, intolerable stuttering rather than micro-stuttering and this was always worse at KSEA.



The fluidity approaches and, indeed, frequently matches that seen in Rob Ainscough's excellent series of videos. However, his solution is different as he prefers to use DSR (Edit: no longer the case - see Rob's post below) with a 4K monitor refreshing at 30Hz and anchoring the Prepar3D frame rate also to 30fps. I have not used VSync or Triple Buffering. I see no tearing and very little micro-stuttering using my two GTX 980s configured in SLI and the higher frame rates achieved doubtless help to mask/suppress the appearance of any periodic hitching that can occur.



As the graphs show, the situation gets even better now that I can use Multi-Frame Sampled Anti-Aliasing (MFAA) along with a reduction of SGSSAA and MSAA. :smile:



Despite all I have said, I think I can say that my mind still remains open in the same way as any enthusiastic AVSIM member is keen to improve performance of his favourite sim without significant loss of detail. I would be reluctant to change any of my current settings without a convincing explanation as to why it would be a good idea.



Finally, I believe I've reached the point when this topic should be opened for discussion and, Instead, I can return, at long last, to engage in some real world activities...at least for a time..LOL!



Cheers!

Mike
