raymar

Limitations missing from Carenado documentation

Recommended Posts

Here are copies from the Airplane Flight Manual.

The Airspeed Limitations placard is located at the bottom of the Overhead Light Switch Panel.

Enjoy

Ray

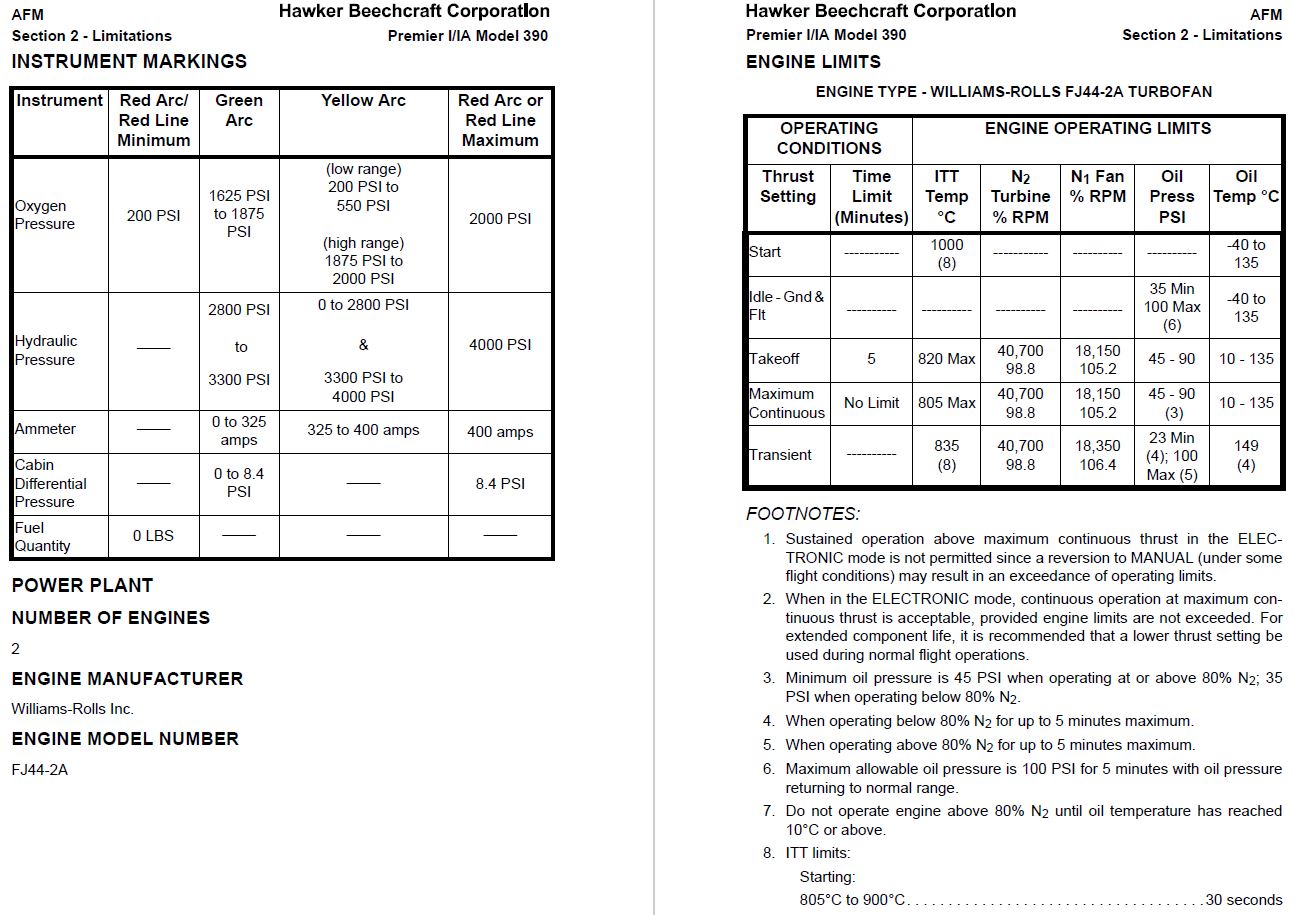

Engine Limits.JPG

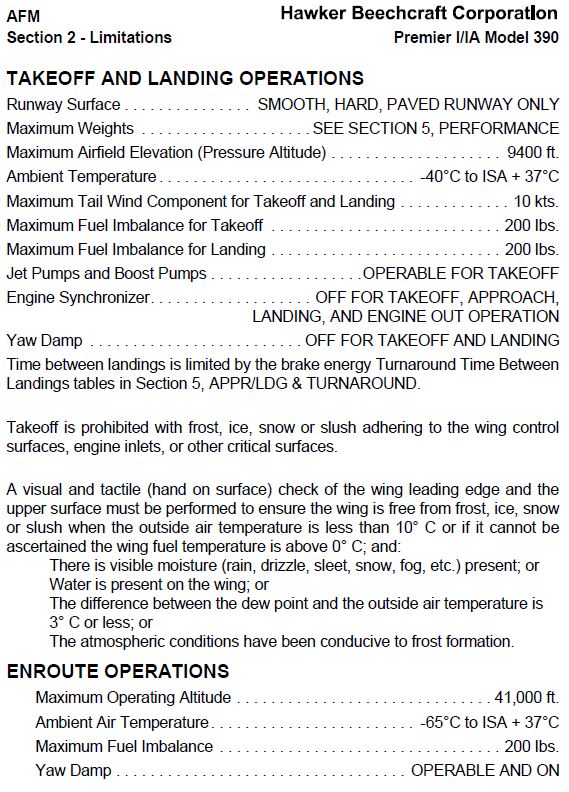

Takeoff and Landing Limitations.JPG

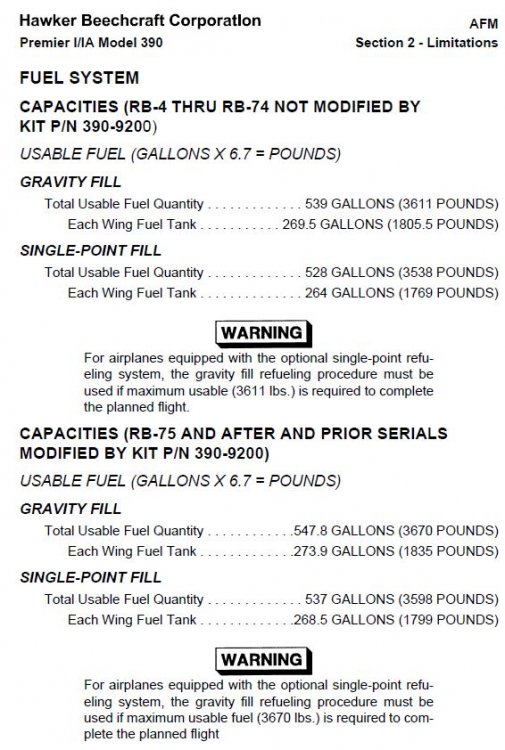

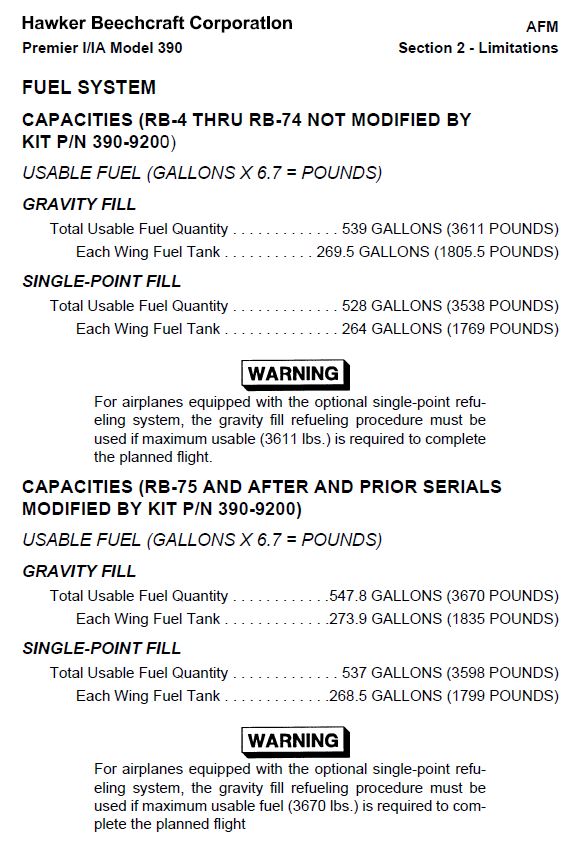

Fuel Sys Capacities.JPG

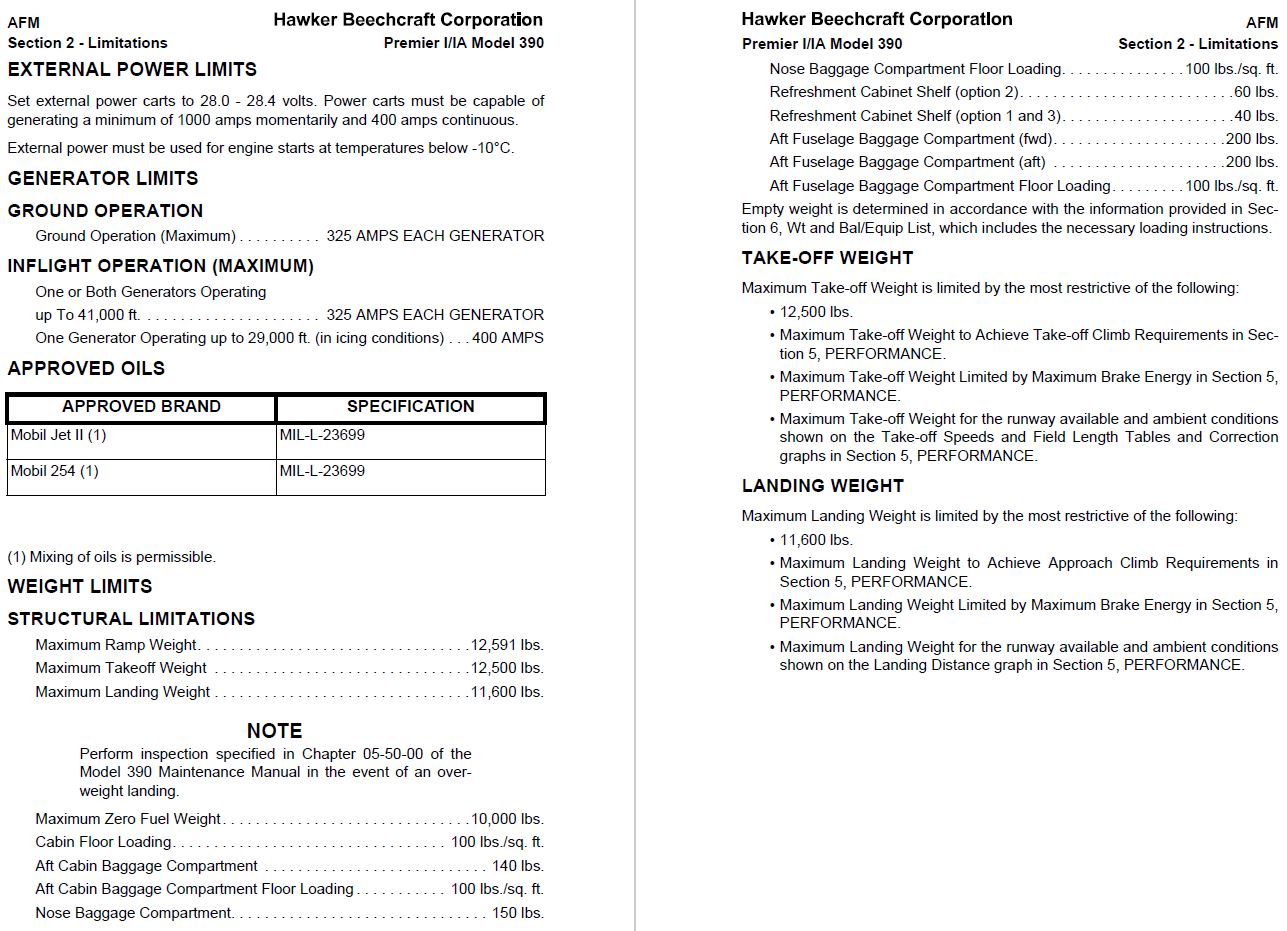

Weight Limits.JPG

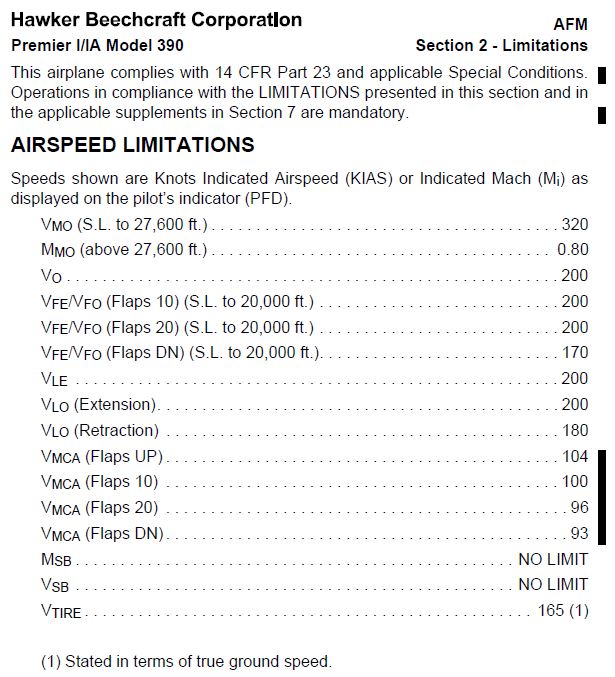

AFM Airspeed Limitations.JPG

  • Upvote 2

Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

AWESOME thank you!  Question does the FMC display aircraft weights somewhere.  I've seen the fuel weights but where is gross displayed?  Thanks again!

Share this post


Link to post
Share on other sites

Thanks Ray,



Would it be possible for you to post a screenshots of the manual where it explains how to properly execute  an ILS, manual approach (speed,flaps and stuff)  ?



Share this post


Link to post
Share on other sites



6 hours ago, Novej757 said:

AWESOME thank you!  Question does the FMC display aircraft weights somewhere.  I've seen the fuel weights but where is gross displayed?  Thanks again!

No. The FMS page where we would normally add payload (PERF) is blank - not coded.  Only Fuel info is available in the Carenado FMS PERF page.  I use the FSX Fuel and Payload drop down menu feature.



The mod we made for the CJ2 PC-21 has this info constantly updated in the FMS screen.



Regards,

Ray

Share this post


Link to post
Share on other sites
3 hours ago, MindYerBeak said:

Thanks Ray,



Would it be possible for you to post a screenshots of the manual where it explains how to properly execute  an ILS, manual approach (speed,flaps and stuff)  ?



Yes, maybe this weekend.

Regards,

Ray

Share this post


Link to post
Share on other sites

Note in the AFM limitations the maximum ambient temperature +37C, which is only 98.6 degrees Fahrenheit. This is a weakness of the r/w Premiere - or more specifically of the Williams engines. Basically, if the air temperature at an airport is above 100 degrees F, one cannot take off. This is a real problem in trying to operate a Premiere out of desert airports like Phoenix, Las Vegas etc in warm weather months.

Share this post


Link to post
Share on other sites
2 hours ago, JRBarrett said:

Note in the AFM limitations the maximum ambient temperature +37C, which is only 98.6 degrees Fahrenheit. This is a weakness of the r/w Premiere - or more specifically of the Williams engines. Basically, if the air temperature at an airport is above 100 degrees F, one cannot take off. This is a real problem in trying to operate a Premiere out of desert airports like Phoenix, Las Vegas etc in warm weather months.

Yes, the Hawker 200 edition with the FJ44-3AP w/FADEC 3,050 lb thrust is much more capable at high and hot runway altitudes.



Regards,

Ray

Share this post


Link to post
Share on other sites
4 hours ago, MindYerBeak said:

Thanks Ray,



Would it be possible for you to post a screenshots of the manual where it explains how to properly execute  an ILS, manual approach (speed,flaps and stuff)  ?

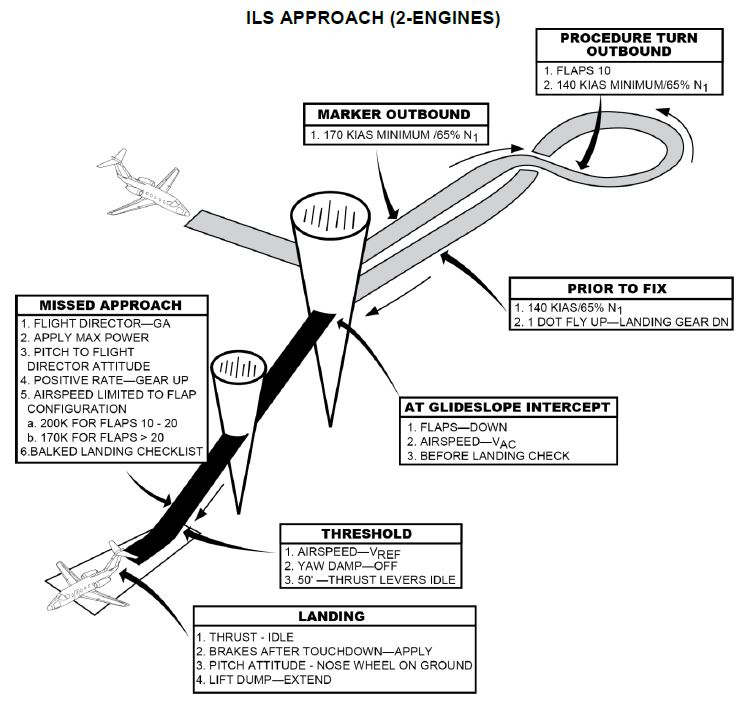

Here you go.




Share this post


Link to post
Share on other sites
2 hours ago, JRBarrett said:

Note in the AFM limitations the maximum ambient temperature +37C, which is only 98.6 degrees Fahrenheit. This is a weakness of the r/w Premiere - or more specifically of the Williams engines.

The limit is ISA +37C which means e.g. at S.L. 52C (125F).  Haven't seen more than 50C IRL too many times, not even in DXB etc.

  • Upvote 1

Share this post


Link to post
Share on other sites
16 hours ago, raymar said:

Here you go.







Thanks Ray. that helped a lot.

Share this post


Link to post
Share on other sites
13 minutes ago, MindYerBeak said:

Ray could you possibly share the whole  afm ?

Thanks

Nope. Sorry, can't do that.  btw. that approach chart diagram is not from the AFM.

Ray

Share this post


Link to post
Share on other sites



18 minutes ago, raymar said:

Nope. Sorry, can't do that.  btw. that approach chart diagram is not from the AFM.

Ray



I understand.Thanks anyway.

Share this post


Link to post
Share on other sites
On 6/15/2017 at 6:24 AM, raymar said:



No. The FMS page where we would normally add payload (PERF) is blank - not coded.  Only Fuel info is available in the Carenado FMS PERF page.  I use the FSX Fuel and Payload drop down menu feature.



The mod we made for the CJ2 PC-21 has this info constantly updated in the FMS screen.



Regards,

Ray

That Flight Info gauge is invaluable. I've used it in other airplanes. Not prototypical, but it sure eliminates the need for some other gauges on a limited space 2D panel.

Share this post


Link to post
Share on other sites

@raymar can you post the "Service Ceiling - Two Engines Operative Anti-Ice Off" table......if it exists that is......? Thanks.
