KenG

Fuel Planning Factors

Recommended Posts

Anyone have the planning factors for fuel burn, mostly climb?

I just did an LRC flight in this thing and it took about 900 pounds to make it to FL370 in a 12.5K jet.

Share this post


Link to post
Share on other sites
8 hours ago, KenG said:

Anyone have the planning factors for fuel burn, mostly climb?

I just did an LRC flight in this thing and it took about 900 pounds to make it to FL370 in a 12.5K jet.

Ken,

i have the performance charts for the P1.  I will get the numbers uploaded tomorrow.

Regards,

Ray




When Pigs Fly . Ray Marshall .

Share this post


Link to post
Share on other sites
19 hours ago, KenG said:

Anyone have the planning factors for fuel burn, mostly climb?

I just did an LRC flight in this thing and it took about 900 pounds to make it to FL370 in a 12.5K jet.

With 100% throttle it should take 17min  113NM and 425lbs with the 220/.62 speed schedule.

Share this post


Link to post
Share on other sites
12 hours ago, raymar said:

Ken,

i have the performance charts for the P1.  I will get the numbers uploaded tomorrow.

Regards,

Ray



OK gang,

Here are some fuel and climb related performance charts + High Speed and Long Range Cruise/fuel burn charts. Enjoy.

Regards,

Ray

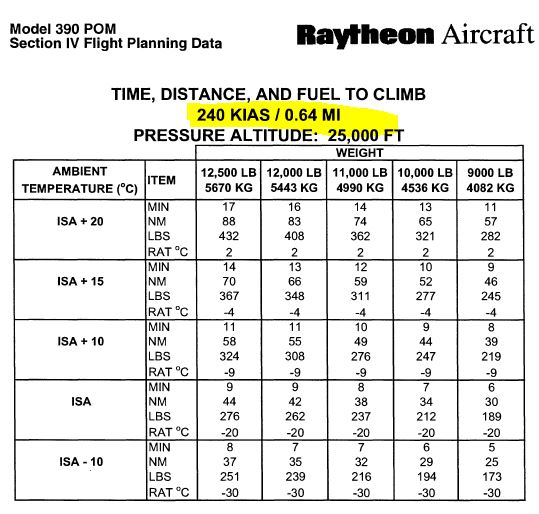

climb 240k 250.JPG

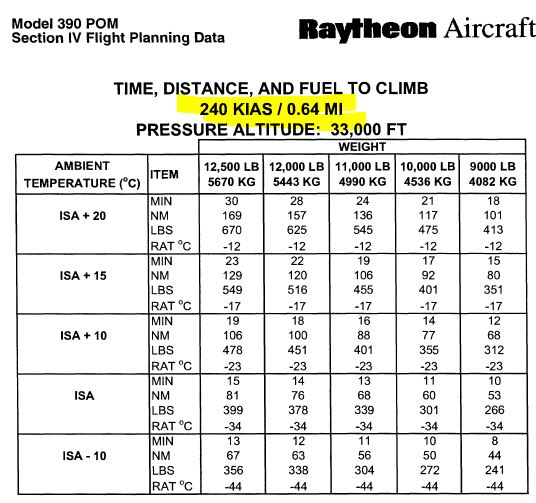

Climb 240k 330.JPG

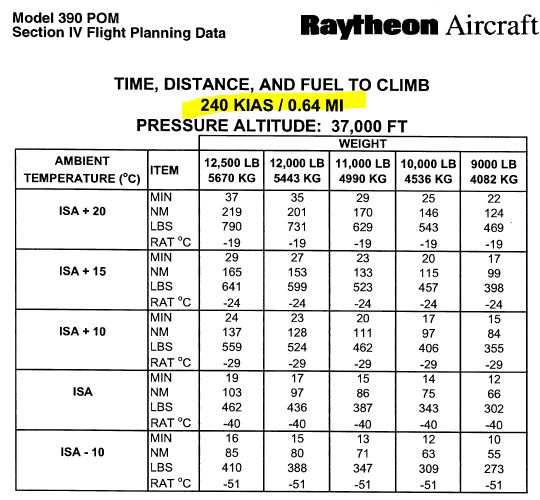

Climb 240k 370.JPG

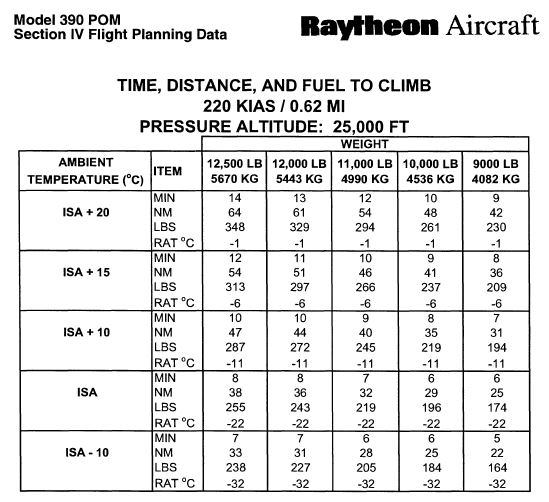

Climb FL250.JPG

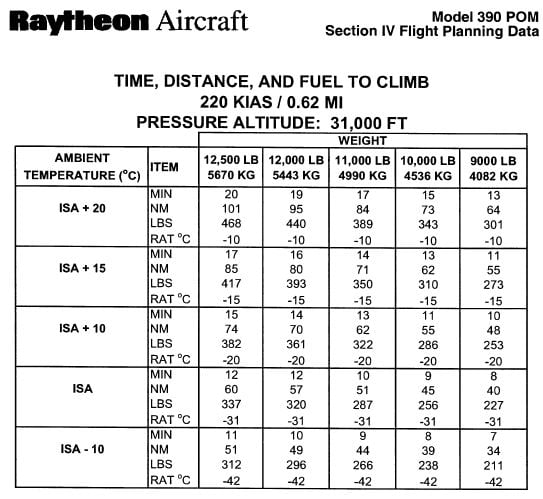

climb FL310.JPG

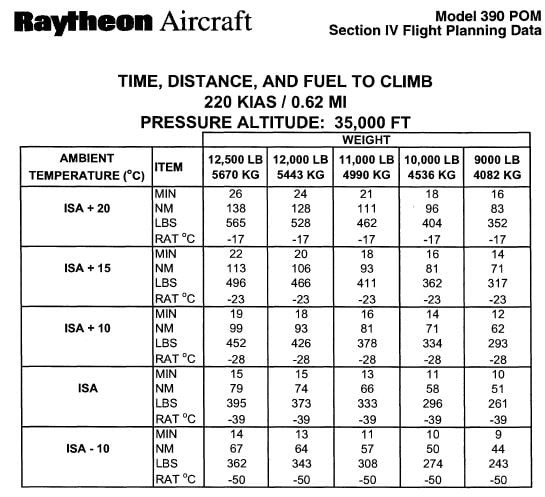

Climb FL350.JPG

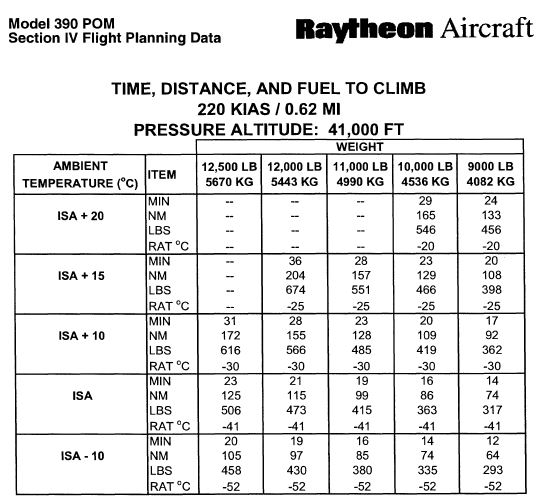

Climb FL410.JPG

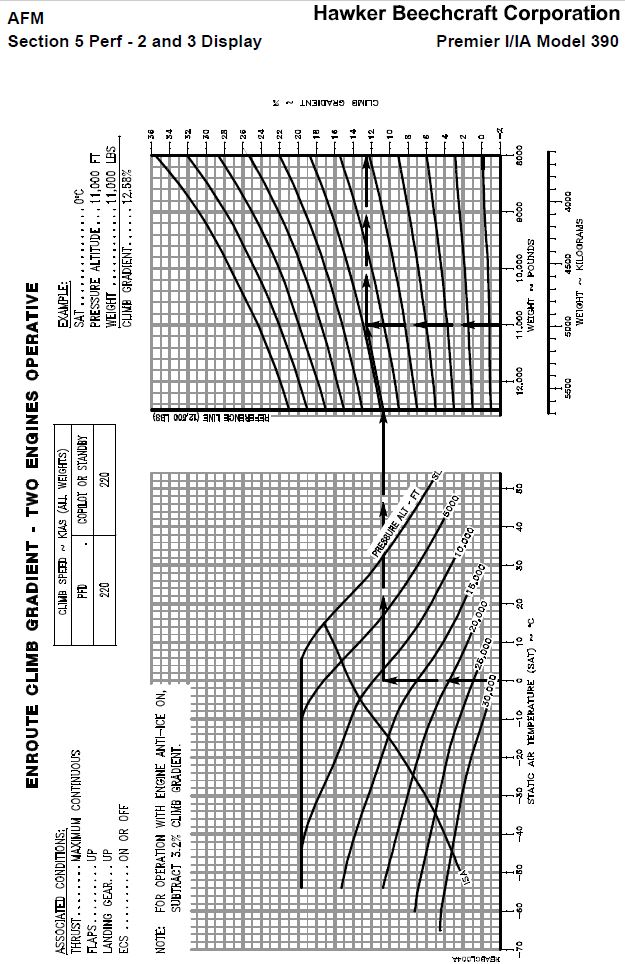

climb grad.JPG

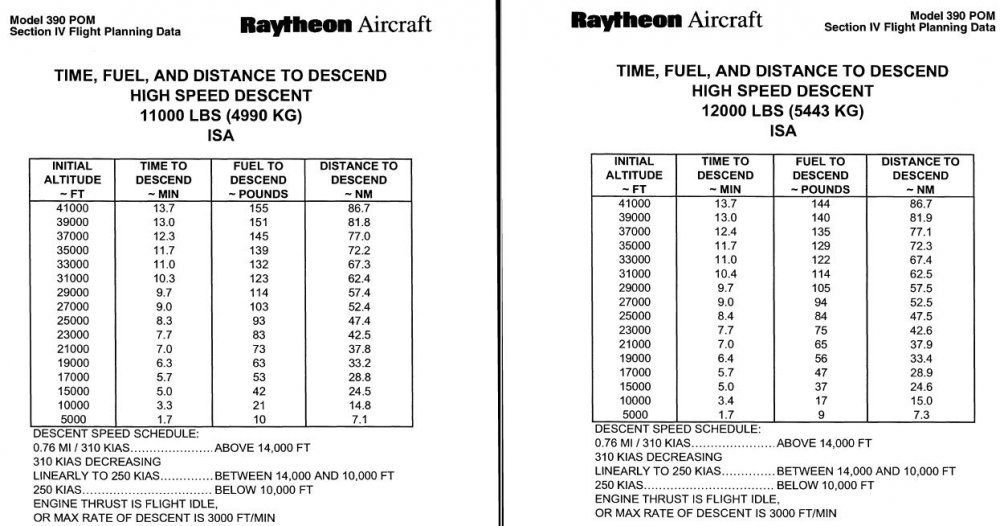

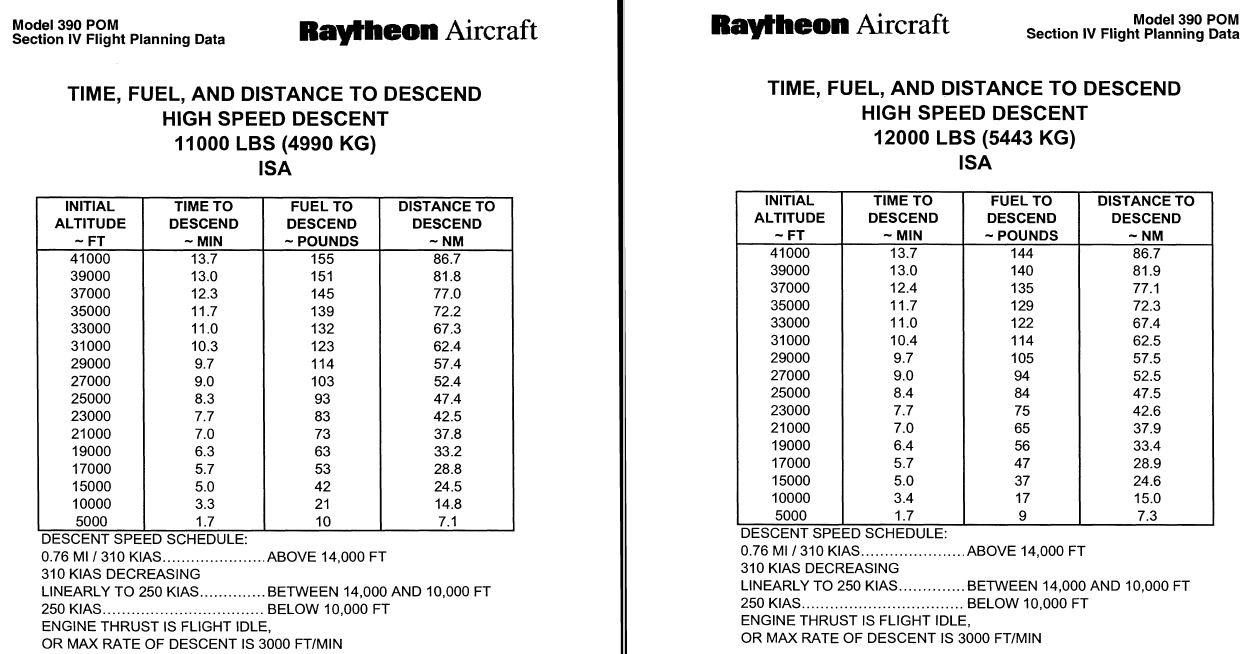

Desc fuel.JPG

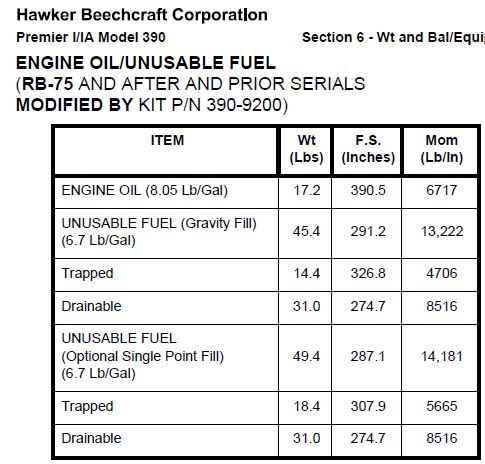

fuel table.JPG

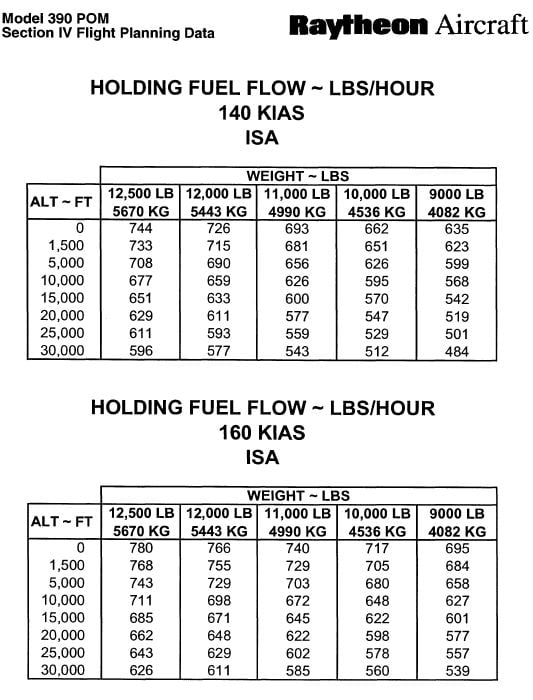

Hold fuel.JPG

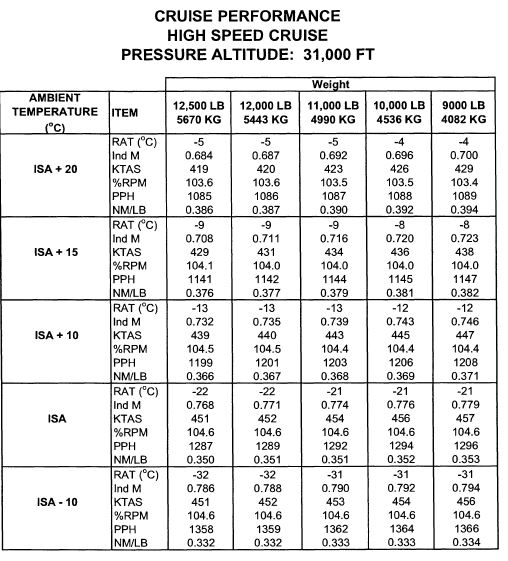

HS Cruise 310.JPG

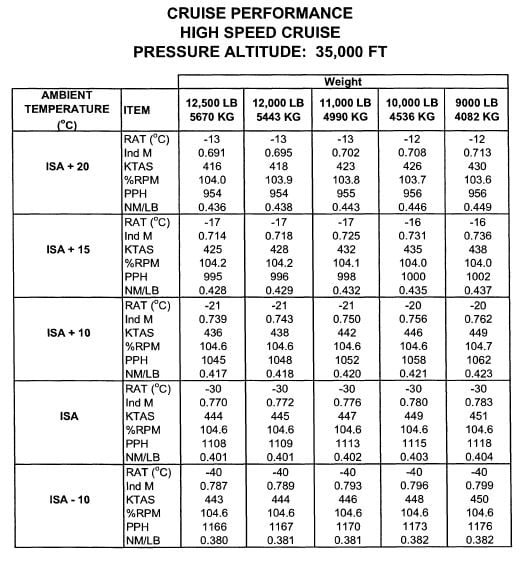

HS Cruise 350.JPG

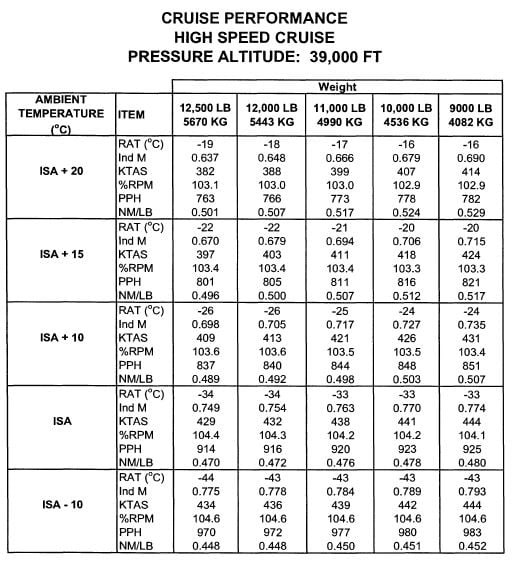

HS cruise 390.JPG

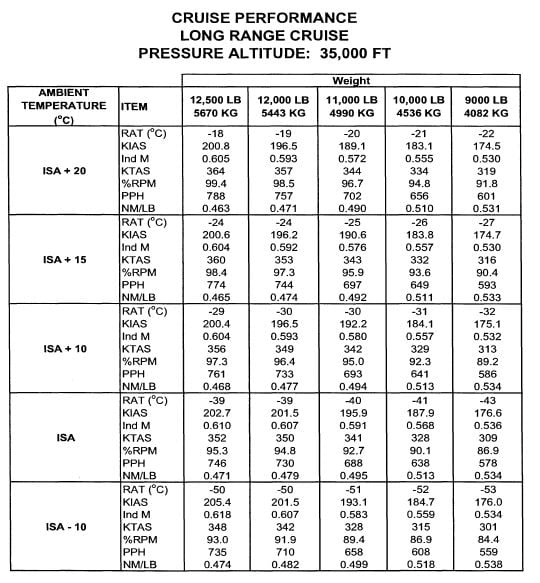

LR cruise 350.JPG

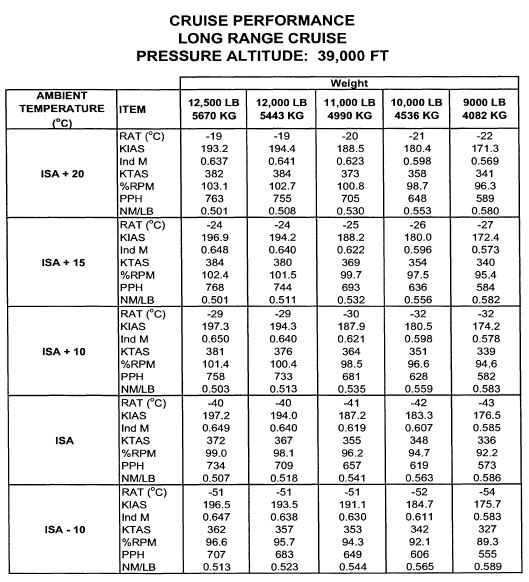

LR cruise 390.JPG

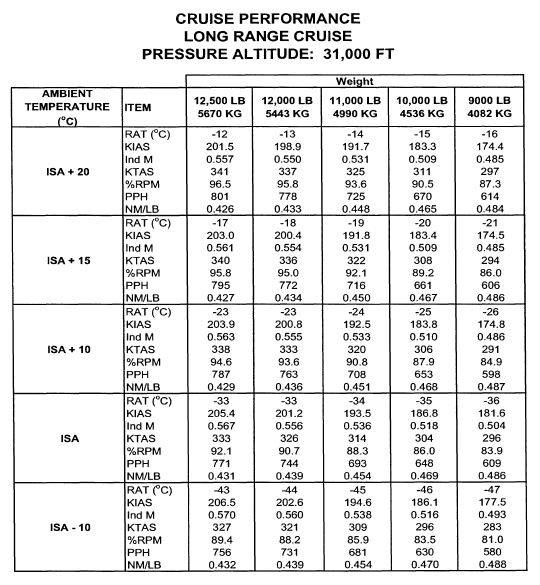

LR crusie 310.JPG

  • Upvote 2

When Pigs Fly . Ray Marshall .

Share this post


Link to post
Share on other sites

Ray,

Thank you, I see my problem in I was limiting N1 to 100%. I see now that I need to use 105% N1, 98.8% N2 or 805 ITT in the climb. I was also trying to use FLC Mach Hold and found out the hard way the speed hold is once again flawed. I'll see if I can come close to the 650 pounds of fuel charted on my next flight.

Share this post


Link to post
Share on other sites

Are you able to make a PFPX profile for the Premier 1A as well?

Since you have all documentations that is needed to get it going..:)



Or if by reading these files you uploaded to make it out of that?

I mean all of the factors needed for a PFPX profile is there already, or is it missing?

I can do it, but I need documentation to get it done :)

Share this post


Link to post
Share on other sites

Hi Folks,

Fltplan.com has a profile for the Premier already built in  - you could actually plan off that RW site - gives you fuel burn - approved ATC routing - includes winds in calculations - then just copy the routing to a flight planner for flight sim... Been doing it that way for years...

Even better if you use their FREE EFB - FltPlan GO...

https://fltplan.com/

Regards,

Scott


imageproxy.png.c7210bb70e999d98cfd3e77d7

Share this post


Link to post
Share on other sites
On ‎7‎/‎1‎/‎2017 at 11:57 AM, KenG said:

Anyone have the planning factors for fuel burn, mostly climb?

I just did an LRC flight in this thing and it took about 900 pounds to make it to FL370 in a 12.5K jet.




imageproxy.png.c7210bb70e999d98cfd3e77d7

Share this post


Link to post
Share on other sites
