January 31, 20197 yr 13 hours ago, N1K380 said: +1, did my head in with blender trying the same. Would love a tutorial of any kind if someone has the time. Its a different process for every plane. It helps to have some IT background and XML experience.
February 2, 20197 yr Slowly getting my head around all this.. Aerobask Eclipse 550 I have remapped the Aerobask GTN bezel buttons to RXP so two versions.. GTN 750 and 650 https://www.dropbox.com/s/wzot352hf97oxrj/EA50 RXP 650 and 750.zip?dl=0 GTN 750 only https://www.dropbox.com/s/yi79x7hf7j0toa0/EA50 RXP 750.zip?dl=0

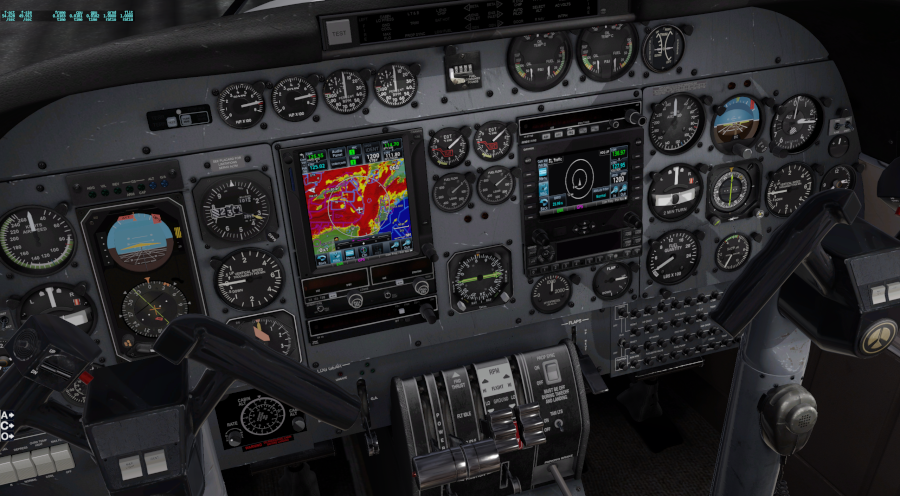

February 13, 20197 yr Carenado 690B X-Plane 11 replacing the Avidyne with a GTN 650 The code: Spoiler [GTN_650_2.Avedyne_screen] ; display window if true. visible = true ; show screen only gauge if true. nobezel = true ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = PANEL3D ; display position and dimension (left,top,width,height) frame.rect = 100,1528,650,390 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true In the Car_690B_TurboCommander_Cockpit.obj file ... Replace: ATTR_manip_command button thranda/popup/13 With: ATTR_manip_command button RXP/GTN/TOGGLE_WINDOW_2 LIne 47687 in Atom text editor. I also had to delete the directory Avidyne in: \plugins\SASL3_Tbient\data\modules\Custom Module Edited February 13, 20197 yr by Glasairmell
February 22, 20197 yr Sorry, I posted this in the wrong place. Now moved here: May I request that someone add this mod to the “Carenado C90 King Air XP11 v1.0”. I love everything about this GA except the stock nav sys. Having the Reality GTN 750 would make it amazing. Thanks for considering...
February 22, 20197 yr Dden Challenger 300 Replaces the CDU, which is mirroring onto both sides. The function keys of the CDU are disabled, however I have not been able to find and edit the main clickspot. Clicking on the GTN triggers the default G430 😞 Download Link -- Side Note -- Jean-Luc any chance you could edit the OP to create an index of what aircraft mods are available in this thread? Edited February 24, 20197 yr by RXP Added a note
March 8, 20197 yr On 2/2/2019 at 3:07 AM, N1K380 said: Slowly getting my head around all this.. Aerobask Eclipse 550 I have remapped the Aerobask GTN bezel buttons to RXP so two versions.. GTN 750 and 650 https://www.dropbox.com/s/wzot352hf97oxrj/EA50 RXP 650 and 750.zip?dl=0 GTN 750 only https://www.dropbox.com/s/yi79x7hf7j0toa0/EA50 RXP 750.zip?dl=0 Works great Thank you!! John C
April 23, 20197 yr Airfoilabs King Airhttps://drive.google.com/open?id=1qtaeXMjGOQeyp6O1TmL0W8QjGfBtlgOy Edited April 23, 20197 yr by RXP
April 25, 20197 yr Airfoillabs Beechcraft King Air 350 - Reality XP GTN 750 Integration Mod I was rather disappointed that the new Airfoillabs King Air 350 doesn't have any built-in support for the Reality XP GTN 750. Long story short, I decided to make my own custom modification: Installation - Make a backup of your complete Airfoillabs King Air 350 folder - Extract the downloaded zip file to a temporary folder - Copy 3 files from inside the root AFL_KA_350_GTN folder to the root folder of the King Air 350 aircraft folder, overwriting any existing files - Copy 11 files inside the AFL_KA_350_GTN\objects folder to the objects folder inside of the King Air 350 aircraft folder, overwriting any existing files Download Fixed missing file, new download link: https://bit.ly/2DMK8vJ Edited May 19, 20197 yr by RXP

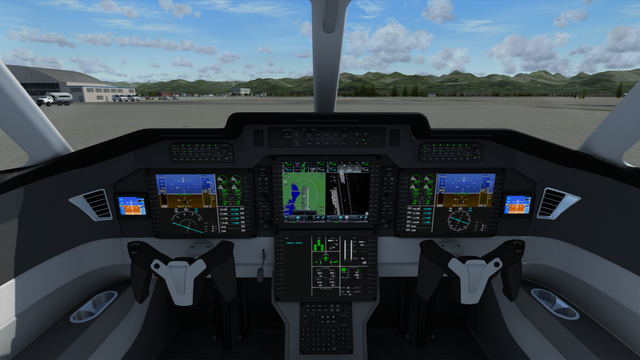

September 14, 20196 yr Carenado Phenom 100 GTN 750 Integration Mod At first start of every flight you're going to see something like this: Carenado's G1000 startup screen is visible on the left side of the screen. Just click on "ENT" button (red arrow on the image above), to show engine instruments on the left side of the GTN 750 mod screen. Then it will look like this: Installation - Make a backup of "EMB500_Phenom-XP11_cockpit.obj" (inside Embraer Phenom 100 root folder). - Extract the downloaded zip file to a temporary folder. - Copy the 2 files from "GTN750 Phenom 100 by Carenado v1.4.zip" (link below) to the Embraer Phenom 100 folder, overwriting any existing files. Download Download link: https://www.dropbox.com/s/t2rv7b1cx6f3gfg/GTN750 Phenom 100 by Carenado.zip?dl=0&m= PS: I have updated the mod in order to avoid that ugly startup screen from carenado's g1000. Just put everything inside phenom 100 folder and overwriting existing files.
October 3, 20196 yr caranado 208 Caravan integrated panels Xplane https://forums.x-plane.org/index.php?/files/file/55165-carenado-cessna-208-caravan-rxp-gtn-750-650/ https://forums.x-plane.org/index.php?/files/file/55164-carenado-cessna-208-caravan-rxp-gtn-750/ Edited October 3, 20196 yr by RXP John C
April 8, 20206 yr Hi all, I took inspiration from @wardoged 's mod to put the GTN 750 in the Carenado TBM 850. In the download you will find everything you need to install it and there's even a tutorial on how to do the same to other planes with a g1000 mfd! images : https://imgur.com/a/2H1S4db Download: https://forums.x-plane.org/index.php?/files/file/60158-gtn-750-integration-for-carenado-tbm-850/ Enjoy! ZeykaFX Edited April 11, 20206 yr by RXP
May 2, 20206 yr Iris Simulations Pilatus PC-24 with 2 x GTN 750s side by side. https://mega.nz/folder/pF10xKIC#oCTr_ulL5Y3HtAGAzH29ng

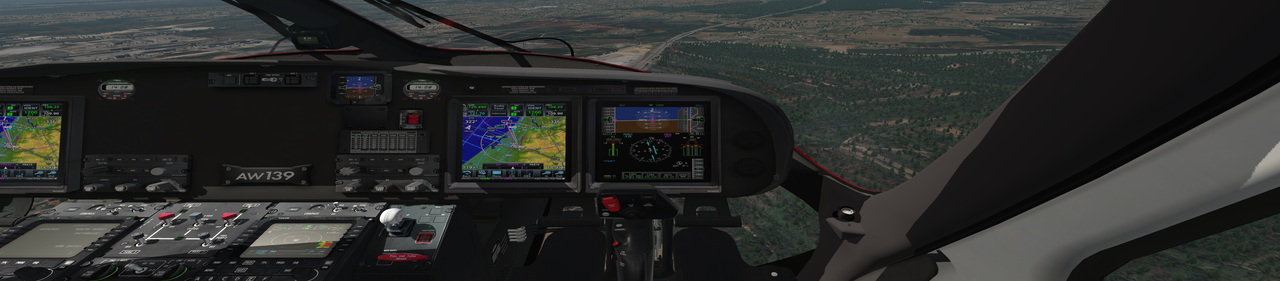

May 17, 20206 yr GTN750 for X-Rotors AW139 V4 Hi there, I Calculate this: GTN1 at the front right panel, not clickable because the original panel stills in background, i just use the GTN1 Popup to change values. GTN2 at the right Fms, full clickable. How to: Start Xp11 and load GTN1 and GTN2 in your AW139 this will create the custom RealityXP.GTN.ini in your AW139 main folder. then close Xp11 and go to your main folder from the AW139 in Xplane11/Aircraft/AW139 Edit the RealityXP.GTN.ini, delete the standart code and copy/paste my Calculation code down here, Dont forget to save:-) Start xplane 11 and try it, I hope it works for you to. When there is some problems. just delete the RealityXP.GTN.ini and all is standart again. My RealityXP.GTN.ini code: _________________________________________________________________ Spoiler [GTN] ; comma separated list of gauges gauges = GTN_750_1, GTN_750_2 [GTN_750_1] ; comma separated list of render targets. drawto = WINDOW,PANELS,RXP_S1 ; is the master device if true. MasterDevice = true ; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2 NavDbType = 0 LinkSimGps = true LinkCrs = true LinkObs = true ; TAWS approach air speed (knots) or -1 (auto detect Vref: 132) TawsApprSpeed = 134 ; TAWS flap extension speed (knots) or -1 (auto detect Vfe: 200) TawsFlapSpeed = 200 ; TAWS gear extension speed (knots) or -1 (auto detect Vle: 999) TawsGearSpeed = 276 PowerSource = AVIONICS_BUS [GTN_750_1.WINDOW] ; display window if true. visible = false ; show screen only gauge if true. nobezel = false ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = WINDOW ; display position and dimension (left,top,width,height) frame.rect = 2588,865,587,559 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true ; VR mode position and dimension (left,top,width,height) (requires XP11.20) vrmode.rect = 0,790,830,790 ; display as popout window if true (requires XP11.1). undocked = false ; display mouse tooltips if true. tooltips = false ; freeze display position if true. locked = true ; auto hide in external view if true. autohide = false [GTN_750_1.RXP_S1] ; display window if true. visible = true ; show screen only gauge if true. nobezel = true ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = PANEL3D ; display position and dimension (left,top,width,height) frame.rect = 0,869,300,245 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true [GTN_750_2] ; comma separated list of render targets. drawto = WINDOW,PANELS,RXP_S2 ; is the master device if true. MasterDevice = false ; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2 NavDbType = 0 LinkSimGps = true LinkCrs = true LinkObs = true ; TAWS approach air speed (knots) or -1 (auto detect Vref: 15) TawsApprSpeed = 134 ; TAWS flap extension speed (knots) or -1 (auto detect Vfe: 999) TawsFlapSpeed = 200 ; TAWS gear extension speed (knots) or -1 (auto detect Vle: 150) TawsGearSpeed = 276 PowerSource = AVIONICS_BUS AutoGpsSource = 1 CopilotSide = false ; connects to: 'PFC_GTN' or any '#PID' (#D067 for PFC_GTN) ; no value connects to first found, 'OFF' disables connection. HardwareDevice = ; hardware selector number or -1 to disable. HardwareIdx = -1 [GTN_750_2.WINDOW] ; display window if true. visible = false ; show screen only gauge if true. nobezel = false ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = WINDOW ; display position and dimension (left,top,width,height) frame.rect = 1643,714,588,560 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true ; VR mode position and dimension (left,top,width,height) (requires XP11.20) vrmode.rect = 0,790,800,790 ; display as popout window if true (requires XP11.1). undocked = false ; display mouse tooltips if true. tooltips = false ; freeze display position if true. locked = false ; auto hide in external view if true. autohide = false [GTN_750_2.RXP_S2] ; display window if true. visible = true ; show screen only gauge if true. nobezel = true ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = PANEL3D ; display position and dimension (left,top,width,height) frame.rect = 17,414,155,130 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true Edited May 17, 20206 yr by RXP

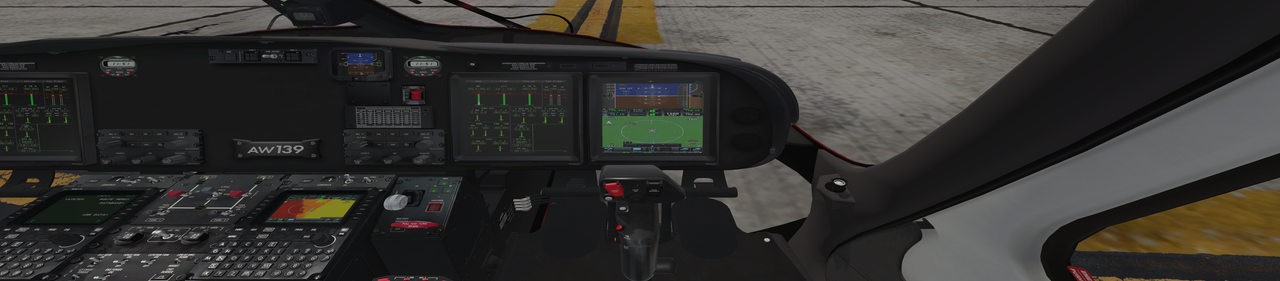

May 17, 20206 yr GTN750 for X-Rotors AW139 V4 (alternate) Hi there Again:-) Here the code for the same of my last post but with GTN1 at the left panel and GTN2 at the right Fms. My RealityXP.GTN.ini code: Spoiler [GTN] ; comma separated list of gauges gauges = GTN_750_1, GTN_750_2 [GTN_750_1] ; comma separated list of render targets. drawto = WINDOW,PANELS,RXP_S1 ; is the master device if true. MasterDevice = true ; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2 NavDbType = 1 LinkSimGps = true ; TAWS approach air speed (knots) or -1 (auto detect Vref: 15) TawsApprSpeed = 134 ; TAWS flap extension speed (knots) or -1 (auto detect Vfe: 999) TawsFlapSpeed = 200 ; TAWS gear extension speed (knots) or -1 (auto detect Vle: 150) TawsGearSpeed = 276 PowerSource = AVIONICS_BUS AutoCdiSrc = true ; connects to: 'PFC_GTN' or any '#PID' (#D067 for PFC_GTN) ; no value connects to first found, 'OFF' disables connection. HardwareDevice = ; hardware selector number or -1 to disable. HardwareIdx = -1 [GTN_750_1.WINDOW] ; display window if true. visible = false ; show screen only gauge if true. nobezel = false ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = WINDOW ; display position and dimension (left,top,width,height) frame.rect = 2588,865,587,559 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true ; VR mode position and dimension (left,top,width,height) (requires XP11.20) vrmode.rect = 0,790,830,790 ; display as popout window if true (requires XP11.1). undocked = false ; display mouse tooltips if true. tooltips = false ; freeze display position if true. locked = true ; auto hide in external view if true. autohide = false [GTN_750_1.RXP_S1] ; display window if true. visible = true ; show screen only gauge if true. nobezel = true ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = PANEL3D ; display position and dimension (left,top,width,height) frame.rect = 719,1023,305,401 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true [GTN_750_2] ; comma separated list of render targets. drawto = WINDOW,PANELS,RXP_S2 ; is the master device if true. MasterDevice = false ; aviation db: 0: nav_db2_grm, 1: nav_db2, 2: nav_heli_db2_grmn, 3: nav_heli_db2 NavDbType = 0 LinkSimGps = true LinkCrs = true LinkObs = true ; TAWS approach air speed (knots) or -1 (auto detect Vref: 15) TawsApprSpeed = 134 ; TAWS flap extension speed (knots) or -1 (auto detect Vfe: 999) TawsFlapSpeed = 200 ; TAWS gear extension speed (knots) or -1 (auto detect Vle: 150) TawsGearSpeed = 276 PowerSource = AVIONICS_BUS AutoGpsSource = 1 CopilotSide = false ; connects to: 'PFC_GTN' or any '#PID' (#D067 for PFC_GTN) ; no value connects to first found, 'OFF' disables connection. HardwareDevice = ; hardware selector number or -1 to disable. HardwareIdx = -1 [GTN_750_2.WINDOW] ; display window if true. visible = false ; show screen only gauge if true. nobezel = false ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = WINDOW ; display position and dimension (left,top,width,height) frame.rect = 1643,714,588,560 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true ; VR mode position and dimension (left,top,width,height) (requires XP11.20) vrmode.rect = 0,790,800,790 ; display as popout window if true (requires XP11.1). undocked = false ; display mouse tooltips if true. tooltips = false ; freeze display position if true. locked = false ; auto hide in external view if true. autohide = false [GTN_750_2.RXP_S2] ; display window if true. visible = true ; show screen only gauge if true. nobezel = true ; display type: WINDOW,PANEL2D,PANEL3D,PANELS frame.type = PANEL3D ; display position and dimension (left,top,width,height) frame.rect = 17,414,155,130 ; screen only border size (pixels). border.size = 0 ; screen only border color (#RGB or #RGBA). border.rgba = #000000 ; enable mouse clickspots if true, disable if false (use SHIFT to override) usemouse = true ; left mouse button on the screen toggles popup window if true (requires SHIFT+left mouse button). popleft = false ; right mouse button on the screen toggles popup window if true (requires XP11.1). popright = true Edited May 17, 20206 yr by RXP
