MSFS Airport not in LNM

Featured Replies

Trying to take off from LICE: it's available in MSFS but not in LNM? I did import the MSFS database. Seems like only the airports with procedures (green icon in MSFS) are imported and not the ones without (brown icon)...?

3 hours ago, tup61 said:

Trying to take off from LICE: it's available in MSFS but not in LNM? I did import the MSFS database. Seems like only the airports with procedures (green icon in MSFS) are imported and not the ones without (brown icon)...?



LICE shows up on my LNM. Guess something is wrong on your side.

Alvega

CPU: AMD 7800X3D | COOLER: Cooler Master MasterLiquid 240L Core ARGB | GPU: RTX 4070 TI Super 16GB OC | Mobo: ASUS TUF GAMING X670E-PLUS WIFI |
RAM: 32 GB Corsair Vengeance RGB DDR5 6000MHz PC5-48000 2x16GB CL36 | SSDs: WD Black SN770 2TB NVMe SSD (WIN11), WD Black SN850X SSD 2 TB M.2 2280 PCIe Gen4 NVMe (MSFS), Crucial MX500 2TB (Other stuff) | CASE: Forgeon Arcanite ARGB Mesh Tower ATX White | Power Supply: Forgeon Bolt PSU 850W 80+ Gold Full Modular White

  • Author
12 minutes ago, Alvega said:



LICE shows up on my LNM. Guess something is wrong on your side.

Could well be... But what? The database says 36.971 airfields have been loaded. Sounds good to me. Is there a setting that might hide specific airports? Even when I use the Search option LICE can't be found.

Thanks for checking btw.

2 minutes ago, tup61 said:

Could well be... But what? The database says 36.971 airfields have been loaded. Sounds good to me. Is there a setting that might hide specific airports? Even when I use the Search option LICE can't be found.

Thanks for checking btw.

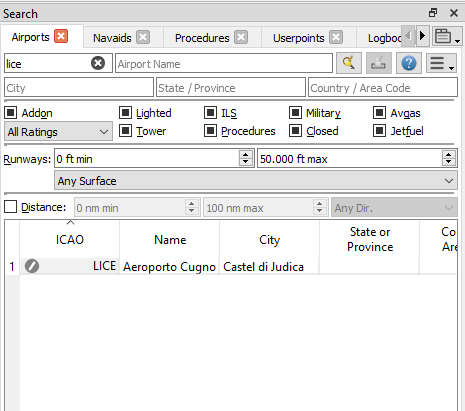

I also have 36.971 airports, but when I type LICE in the search it shows up.




Alvega

CPU: AMD 7800X3D | COOLER: Cooler Master MasterLiquid 240L Core ARGB | GPU: RTX 4070 TI Super 16GB OC | Mobo: ASUS TUF GAMING X670E-PLUS WIFI |
RAM: 32 GB Corsair Vengeance RGB DDR5 6000MHz PC5-48000 2x16GB CL36 | SSDs: WD Black SN770 2TB NVMe SSD (WIN11), WD Black SN850X SSD 2 TB M.2 2280 PCIe Gen4 NVMe (MSFS), Crucial MX500 2TB (Other stuff) | CASE: Forgeon Arcanite ARGB Mesh Tower ATX White | Power Supply: Forgeon Bolt PSU 850W 80+ Gold Full Modular White

  • Author
23 minutes ago, Alvega said:

I also have 36.971 airports, but when I type LICE in the search it shows up.

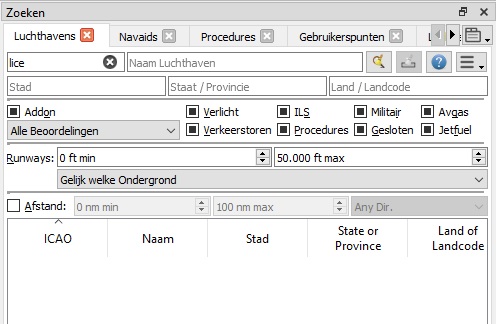

Well... that's just odd:


I will see if recreating the database will do anything.

EDIT

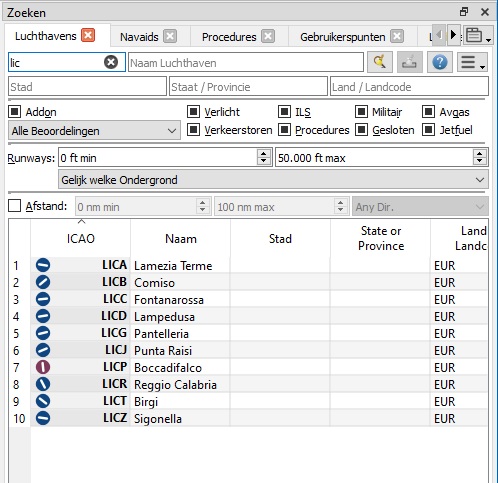

Didn't help... Here are all the airports starting with LIC that LNM can find:




Edited by tup61

That's very odd...

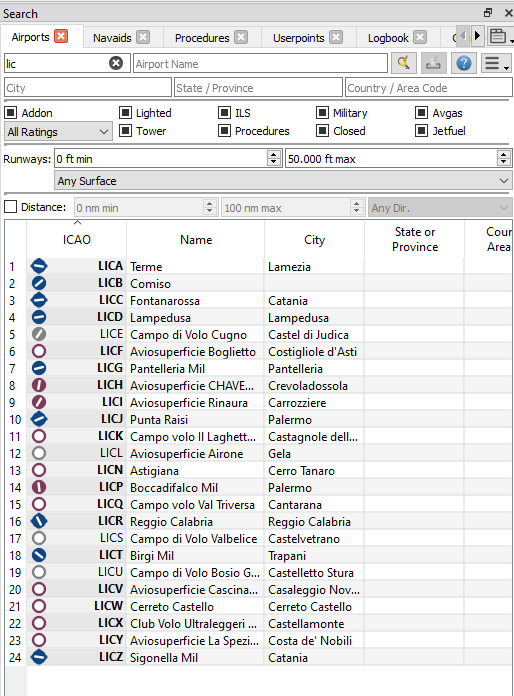

I also have 36.971 airports and not only I do have LICE, but mine is named differently from @Alvega one.

And my list of LICx is much longer than yours @tup61 and also some names doesn't match ...




Are you sure you have selected MSFS Scenery folder?

If I select my "old" Prepar3d v3 I get a list much similar to your, and it doesn't show LICE:


Edited by Marco Manieri
checked also my p3d v3 scenery db

Marco Manieri

Perugia - Italy




8 hours ago, tup61 said:

Trying to take off from LICE: it's available in MSFS but not in LNM? I did import the MSFS database. Seems like only the airports with procedures (green icon in MSFS) are imported and not the ones without (brown icon)...?

LICE is in file APX51180.bgl . It should definitely show up on the map if you reset display settings. Also, try to reset the search just in case some other parameter affects the search result. Did you exclude something in options -> scenery library? Using the Navigraph beta?

@Marco Manieri

Your LICE was named differently than mine because my scenery library was imported when I had my LNM in portuguese language. I now imported it after changing to english and the names are the same.


Alvega

CPU: AMD 7800X3D | COOLER: Cooler Master MasterLiquid 240L Core ARGB | GPU: RTX 4070 TI Super 16GB OC | Mobo: ASUS TUF GAMING X670E-PLUS WIFI |
RAM: 32 GB Corsair Vengeance RGB DDR5 6000MHz PC5-48000 2x16GB CL36 | SSDs: WD Black SN770 2TB NVMe SSD (WIN11), WD Black SN850X SSD 2 TB M.2 2280 PCIe Gen4 NVMe (MSFS), Crucial MX500 2TB (Other stuff) | CASE: Forgeon Arcanite ARGB Mesh Tower ATX White | Power Supply: Forgeon Bolt PSU 850W 80+ Gold Full Modular White

Maybe somebody used this product on your computer.

url%5D

Jim Barrett

Licensed Airframe & Powerplant Mechanic, Avionics, Electrical & Air Data Systems Specialist. Qualified on: Falcon 900, CRJ-200, Dornier 328-100, Hawker 850XP and 1000, Lear 35, 45, 55 and 60, Gulfstream IV and 550, Embraer 135, Beech Premiere and 400A, MD-80.

  • Author

PROBLEM SOLVED! After resetting everything and LICE still not being found I deleted the entire ABarthel folder so I started completely from scratch again. After loading the database LICE was there! And all other LIC-airports too! Seems it's best to delete the ABarthel whenever you install a new version...? Anyway, it's solved and I'm happy! 🙂

Edited by tup61

8 hours ago, Alvega said:

Your LICE was named differently than mine because my scenery library was imported when I had my LNM in portuguese language. I now imported it after changing to english and the names are the same.

There is something else which is different in MSFS. The airport names are not fixed but have to be looked up in translation files like en-US.locPak.
I implemented this in LNM in a way that your selected language for the LNM user interface will be used to select a translation pack while loading the scenery library.

So, change your user interface to German and you will see München after reloading the library. Change it to English and its back to Munich. Or more:

de-DE.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "München",
en-US.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Munich",
es-ES.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Múnich",
fr-FR.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Munich",
it-IT.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Monaco",
ja-JP.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Munich",
pl-PL.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Monachium",
pt-BR.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Munique",
ru-RU.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Мюнхен",
zh-CN.locPak:      "ATCCOM.AIRPORT EDDM.0.text": "Munich",

Its one of the things in MSFS which ate a lot of my time.

8 hours ago, JRBarrett said:

Maybe somebody used this product on your computer.

LOL. You can find more strange idents like the ident of Nantucket Memorial is a bit smelly in German.🙂

2 hours ago, albar965 said:

LOL. You can find more strange idents like the ident of Nantucket Memorial is a bit smelly in German.🙂

As is the ICAO ident of the Rapid City, SD airport in English!

Jim Barrett

Licensed Airframe & Powerplant Mechanic, Avionics, Electrical & Air Data Systems Specialist. Qualified on: Falcon 900, CRJ-200, Dornier 328-100, Hawker 850XP and 1000, Lear 35, 45, 55 and 60, Gulfstream IV and 550, Embraer 135, Beech Premiere and 400A, MD-80.

Here is another one that I have been unable to get to show up in LNM which I fly out of all of the time in MSFS.

F45 - North Palm Beach County (state of Florida in the USA, North of West Palm Beach International on the eastern coast)

I have tried everything... fresh install, completely new database, everything that is mentioned in this thread... this airport is simply not picked up or displayed by Little Nav Map.

You are right. I have the Community folder excluded because I had read about the errors on some other thread. I see that I have F45 in there and why I can fly out of it in MSFS (I forgot that it was not actually in the default game!)

What can we do to get add-on airports in the Community folder to be scanned by LNM without errors? Is there something in the BGL that is throwing an error when scanned by LNM? Is there a way to add the BGL/Airport manually to LNM? Is there some manual adjustments that I can make to the add-on aiport?

Thanks for everything you do... LNM is just one of the most stunning examples of freeware ever released to the FlightSim community (and I have been around since the late 90s).
