Bert Pieke

Fix for Anti-skid

Recommended Posts

The anti-skid switch is a dummy, but for those who do not like to see their wheels lock up when braking,

here is the fix:



I've added the following gauge as "AntiSkid.xml"  to my C2CAR folder, and in the panel.cfg, added



gauge11=C2CAR!AntiSkid,  0,0,1,1



to the Vcockpit01 section.

<Gauge Name="AntiSkid" Version="1.0">

<!-- Toggle Anti-skid -->

<Element> <Select> <Value>

(L:ASD_SWITCH_C2_ANTISKID,number) 1 ==
 if{ (A:ANTISKID BRAKES ACTIVE,bool) !  if{ 0 (>K:ANTISKID_BRAKES_TOGGLE) } }

(L:ASD_SWITCH_C2_ANTISKID,number) 0 ==
 if{ (A:ANTISKID BRAKES ACTIVE,bool)  if{ 0 (>K:ANTISKID_BRAKES_TOGGLE) } }


</Value> </Select> </Element>
</Gauge>





Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

thank you. Just wondering is there anything that can be done to get the Passanger safety and seabelts signs switch to play the sound, i noticed the wav files are there but the switch doesnt active the sound.

Share this post


Link to post
Share on other sites

Yet another fix added in to make this bird better - Thanks again Bert for your continuing contributions, here and on all the other planes you take on...



Working as a software developer myself, I have always resisted (for the most part), jumping into the realm of FSX modifications/fixes as I didn't want my hobby to become yet another variation of my job, but your fixes and expertise have sparked my interest, so I guess I will start looking at things a bit more seriously now.



Regards,



Chris B. - aka "Flapsdown"

Share this post


Link to post
Share on other sites

I wish they would sticky all your fixes for these planes. I have most of the Carenado planes but very few of your fixes cause I cant find them lol. Thanks for taking the time to work on these planes.

Share this post


Link to post
Share on other sites

I wish they'd put him on the payroll. Then we wouldn't need him to make all these fixes because they've be in coming from the "factory".

Share this post


Link to post
Share on other sites

I wish they'd put him on the payroll. Then we wouldn't need him to make all these fixes because they've be in coming from the "factory".



Thanks for the flowers... :rolleyes:



But it is not that I am doing anything clever... I just fix things that Carenado could fix, but do not.. -_-

Share this post


Link to post
Share on other sites

Hey Bert,



Ready to take on the inop Airspeed bug. The bug that doesn't move but should. We need a moveable reference point



Regards,

Ray

Share this post


Link to post
Share on other sites

Thanks for the flowers... :rolleyes:



But it is not that I am doing anything clever... I just fix things that Carenado could fix, but do not.. -_-

My point exactly :wink:

Share this post


Link to post
Share on other sites

Hey Bert,



Ready to take on the inop Airspeed bug. The bug that doesn't move but should. We need a moveable reference point



Regards,

Ray



Ray, That one, you'll have to push Carenado on.  The airspeed gauge is defined in the 3d model..

Have a look at the panel.cfg file, it does not show up..



Nothing us users can do,  I'm afraid.

Share this post


Link to post
Share on other sites

Ray, That one, you'll have to push Carenado on.  The airspeed gauge is defined in the 3d model..

Have a look at the panel.cfg file, it does not show up..



Nothing us users can do,  I'm afraid.

I guess I was expecting the impossible. ha.



Ray

Share this post


Link to post
Share on other sites

I guess I was expecting the impossible. ha.



Ray

The bug works on my plane... You can set it manually and I think mine moved by itself once.

Share this post


Link to post
Share on other sites

The bug works on my plane... You can set it manually and I think mine moved by itself once.

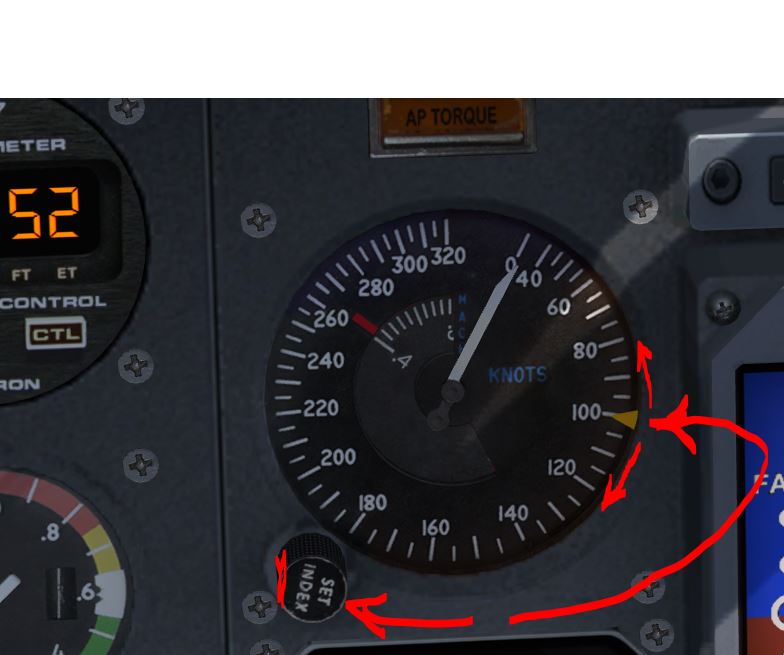

Are we talking about the same thing? Can you move the yellow triangle with the Set Index knob for the Pilot side Airspeed Indicator? See screenshot.



Regards,



Ray

AS Pointer.JPG

Share this post


Link to post
Share on other sites

Never tried it before, but mine moves with the mouse wheel on the SET INDEX knob

Share this post


Link to post
Share on other sites

Must be the P3Dv2 vs FSX/A. USe it to set Vr speed.



Does your Ref Box above N1 vertical gauge work?



Regards,



Ray

Anyone using P3Dv2.4 with a moving A/S index?



Regards,



Ray

Share this post


Link to post
Share on other sites

Are we talking about the same thing? Can you move the yellow triangle with the Set Index knob for the Pilot side Airspeed Indicator? See screenshot.



Regards,



Ray

Works fine for me in P3Dv2.4 as for the reference box, I'm not sure haven't tried it.

Share this post


Link to post
Share on other sites

Works fine for me in P3Dv2.4 as for the reference box, I'm not sure haven't tried it.

Duh. I wonder how things like that are possible. I may try a new download tomorrow to see if there are more than one version. Thanks.



Ray

Share this post


Link to post
Share on other sites






Does your Ref Box above N1 vertical gauge work?



That's a No-Op for me in FSX...

Share this post


Link to post
Share on other sites

Mine don't work.



Ray

That's weird must be an only FSX issue.

Share this post


Link to post
Share on other sites

Click and hold on that spot for 5 seconds, then use mouse wheel it should work

Share this post


Link to post
Share on other sites

Click and hold on that spot for 5 seconds, then use mouse wheel it should work

OK. I thought I had tried all the tricks but it is yet to move. This is P3Dv2.4.

I must have the only version that it doesn't work in.



Thanks,



Ray



UPDATE



I just flat cannot move the yellow marker. I have tried every way I know to turn the damn knob. Mine don't work - it's broke but, the plane flies without it.



Ray
