MU2 (oops I noticed someone else did that too) - well here's what it looks like.

43591431782_a280f91577_o.jpgmu2_rxp530w by ryan b, on Flickr

ini file text:

Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS, Garmin_530_screen
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.Garmin_530_screen]
visible = true
nobezel = true
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
; frame.rect = 63,998,265,195
frame.rect = 63,995,265,190

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1245,1020,640,466
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false




Edited by RXP
  • Upvote 1

| FAA ZMP |
| PPL ASEL |
| Windows 11 | MSI Z690 Tomahawk | 12700K 4.7GHz | MSI RTX 4080 | 32GB 5600 MHz DDR5 | 500GB Samsung 860 Evo SSD | 2x 2TB Samsung 970 Evo M.2 | EVGA 850W Gold | Corsair 5000X | HP G2 (VR) / LG 27" 1440p |





Posted
On 7/20/2018 at 11:03 PM, ryanbatcund said:

GNS530W config for Avia71's Piper Aerostar







Use this updated one...  it wasn't a perfect fit... this one is:

Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS, Garmin_530_screen
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.Garmin_530_screen]
visible = true
nobezel = true
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1,2043,521,385

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1245,1020,640,466
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true




  • Upvote 1

| FAA ZMP |
| PPL ASEL |
| Windows 11 | MSI Z690 Tomahawk | 12700K 4.7GHz | MSI RTX 4080 | 32GB 5600 MHz DDR5 | 500GB Samsung 860 Evo SSD | 2x 2TB Samsung 970 Evo M.2 | EVGA 850W Gold | Corsair 5000X | HP G2 (VR) / LG 27" 1440p |





Posted (edited)

GNS 530 + VSKYLABS Rutan Long-EZ



Code from RealityXP.GNS.ini :


Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1430,1060,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 6,434,416,303
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

As usual, feel free to adjust the settings to your liking.

Edited by Bourrinopathe
  • Upvote 1
  • 1 month later...
Posted (edited)

GNS430 + Carenado King Air C90B




[GNS]
; comma separated list of gauges
gauges = GNS_430_1

[GNS_430_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = MAIN_BATTERY
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_430_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1926,1015,638,268
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,206,490,206
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_430_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 659,1014,431,241
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true



Edited by RXP
  • Like 1
  • Upvote 1
Posted

Thanks Saul... is that the XP10 version or the newer one? @Saul Galeno

| FAA ZMP |
| PPL ASEL |
| Windows 11 | MSI Z690 Tomahawk | 12700K 4.7GHz | MSI RTX 4080 | 32GB 5600 MHz DDR5 | 500GB Samsung 860 Evo SSD | 2x 2TB Samsung 970 Evo M.2 | EVGA 850W Gold | Corsair 5000X | HP G2 (VR) / LG 27" 1440p |





  • 4 weeks later...
Posted (edited)

Mostrando S300CBi_14.Trim.jpg

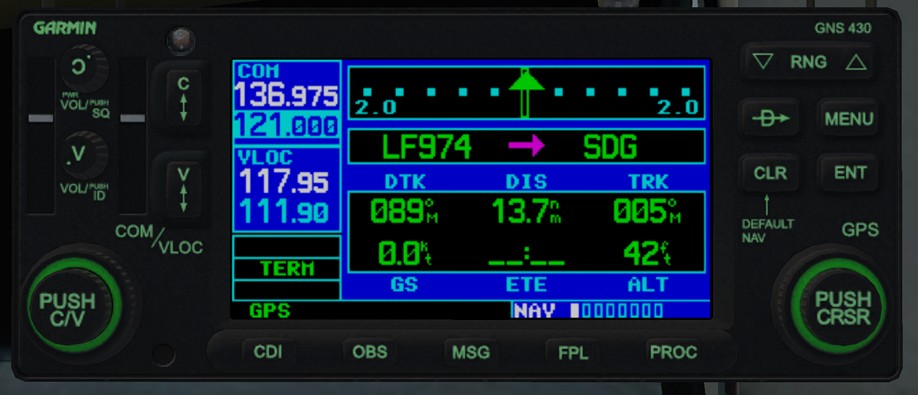

Reality XP GNS V2 430W Configuration for DreamFoil Creations Sikorsky S300CBi
https://www.dreamfoil-creations.com/hangar/df300cbi

Download instrument panel's picture here:
https://drive.google.com/file/d/1tzh33oi9gFQse5wf0065W4MPLin57SyY/view

Tested with X-Plane 11.26r2 VR with Oculus Rift and Touch Controllers.

In X-Plane joystick configuration page set left touch controller to default values.
This is required to control the GNS430 in the instrument panel with your left hand.

You can control it in in 3 ways:
1.- You handle directly the GNS430 in the instrument panel.

2.- You can display a GNS 430 window as a HUD (Head Up Display), that is, that moves with your head and handle it.
You can resize the window and move it.

3.- You can display a GNS 430 window in a fixed position in the cockpit and handle it.
You can resize the window and move it.

To resize and move select the borders of the window (they must show green).

Edit RealityXP.GNS.ini file located in the S300CBi aircrafr folder

1.- Look for section [GNS_430_1]
2.- Add line LogTrainer = 1 if you want a log with additional explanations
3.- Modify line drawto = as shown
4.- Add section [GNS_430_1.Garmin_430_screen] at the end of the file
5.- Save the file

[GNS_430_1]
; LogTrainer = 0 | 1 Enable Garming Trainer lgs
LogTrainer = 1
; comma separated list of render targets.
drawto = WINDOW, PANELS, Garmin_430_screen

[GNS_430_1.Garmin_430_screen]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 0,1024,431,235

Edited by RXP
  • Upvote 1
  • 1 month later...
Posted

GNS 530 + GNS 430 configuration file for the Dreamfoil Embraer 110 - Bandeirante



Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_430_2, GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = AVIONICS_BUS
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 2780,1401,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 15,1497,520,378
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_430_2]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = false
; connects GPS to copilot side if true.
CopilotSide = true
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 2
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = AVIONICS_BUS
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_430_2.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 2789,1012,490,206
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,206,490,206
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_430_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 15,1755,430,232
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true




  • Like 2
  • Upvote 1

Simulators: Prepar3D v5 Academic | X-Plane 1111.50+ | DCS  World  Open Beta MSFS 2020 Premium Deluxe |
PC Hardware: Dell U3417W Intel i9 10900K | msi RTX 2080 Ti  Gaming X Trio msi MPG Z490 Gaming Edge Wifi | G.Skill 32GB 3600Mhz CL16 | Samsung 970 EVO Plus+860 EVO+850 EVO x 1TB, Western Digital Black Caviar Black x 6 TB Corsair RM1000i Corsair H115i Platinum Fractal Design Define S2 Gunmetal |
Flight Controls: Fulcrum One Yoke Virpil VPC WarBRD Base Virpil VPC MongoosT-50CM Grip, Thrustmaster Warthog+F/A-18C Grip Thrustmaster TPR Rudder Pedals | Virtual Fly TQ6+Throttle Quadrant | Sismo B737 Max Gear Lever | TrackIR 5Monsterteck Desk Mounts |
My fleet catalog: Link

  • 2 weeks later...
Posted

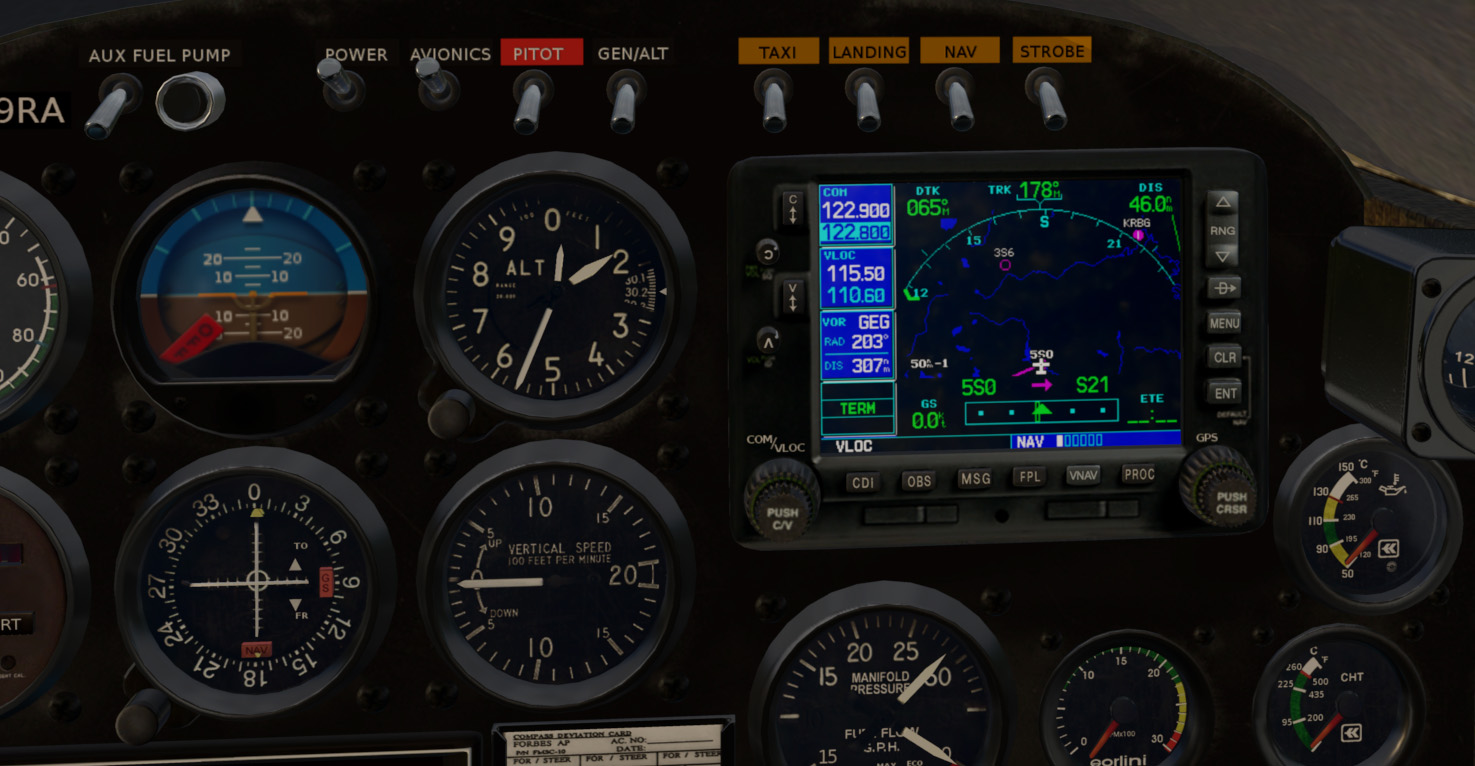

GNS 530 configuration file for Just Flight - Arrow III / Turbo Arrow III/IV / Warrior II




Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = MAIN_BATTERY
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 2950,1420,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1268,610,510,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true




  • Like 1
  • Upvote 1

Simulators: Prepar3D v5 Academic | X-Plane 1111.50+ | DCS  World  Open Beta MSFS 2020 Premium Deluxe |
PC Hardware: Dell U3417W Intel i9 10900K | msi RTX 2080 Ti  Gaming X Trio msi MPG Z490 Gaming Edge Wifi | G.Skill 32GB 3600Mhz CL16 | Samsung 970 EVO Plus+860 EVO+850 EVO x 1TB, Western Digital Black Caviar Black x 6 TB Corsair RM1000i Corsair H115i Platinum Fractal Design Define S2 Gunmetal |
Flight Controls: Fulcrum One Yoke Virpil VPC WarBRD Base Virpil VPC MongoosT-50CM Grip, Thrustmaster Warthog+F/A-18C Grip Thrustmaster TPR Rudder Pedals | Virtual Fly TQ6+Throttle Quadrant | Sismo B737 Max Gear Lever | TrackIR 5Monsterteck Desk Mounts |
My fleet catalog: Link

Posted

Just a note for the Carenado B200 previously mentioned in this thread using the 430's, if you do not replace the animations.sec, with the animations.lua script mentioned for the GTN-750 fix, it absolutely will NOT work. I spent an evening trying to get it to go to no avail, until I stumbled onto the GTN thread, and applied that fix. Now it works

Multiple symptoms, but the first is that the default view in the cockpit is with the flight crew in place, and your view is inside/behind the pilots head ... After trying to use the RealityXP 430, then after removing the ini file to revert your setup the Carenado config files have also been messed up and the aircraft stays broken, so to fix it you have to replace them in the aircraft folder. Replacing the animations.sec with the animations.lua fixes everything.



  • Like 1
Posted

GNS 530 Configuration for the Alabeo PA-23-250 Aztec.




Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, Garmin_530_screen, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = false
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = MAIN_BATTERY
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 240
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.Garmin_530_screen]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1252,580,520,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1252,580,520,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 1252,580,520,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false




  • Upvote 1
Posted (edited)

GNS 530 Configuration for the Alabeo Cessna 207 Skywagon.






However, you should read the spoiler below before installing, although the GPS functions just fine and fits in the bezel perfectly.

Spoiler

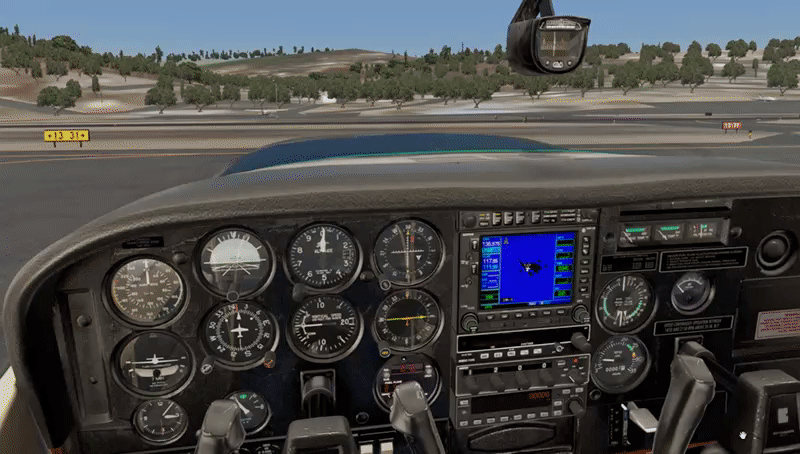

As shown above in the gif, if you really try, you can get the clickspot for the default GPS. Now, the cursor is not actually in the middle, it's on the very edge (Gyazo limitations). It's definitely no big deal as you cannot see the default GPS at all no matter what with this config. And yes, I've tested it. That being said, the GPS on this specific plane has weird dimensions, so if I follow the guide, the top part gets clipped. This also happens with the default GPS.

Also on the Skywagon, there is no Avionics switch, so I have it set to turn on when the battery is turned on.

If any of you can fix the dimensions so it sits in the bezel perfect without the clickspot, let me know and repost this!



TL;DR: It works fine, there's just a tiny space on the edge which is a clickspot for the default GPS. The actual GPS sits in the bezel exactly perfect and just fine.

P.S. For best results, make sure you turn off the default GPS (basically don't turn the volume switch). You may see parts of the default GPS on the top otherwise. If you can help me, I'd appreciate it, but it should work fine. Help me if you can fix this!



Alright, here's the config.



Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, Garmin_530_screen, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = false
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = MAIN_BATTERY
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 240
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.Garmin_530_screen]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1252,580,520,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1252,580,520,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 1252,580,520,380
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false






I can't edit my post so here's a picture that's easier to see (plus with the avionics on).




Edited by Wordpress
  • Upvote 1
  • 1 month later...
Posted

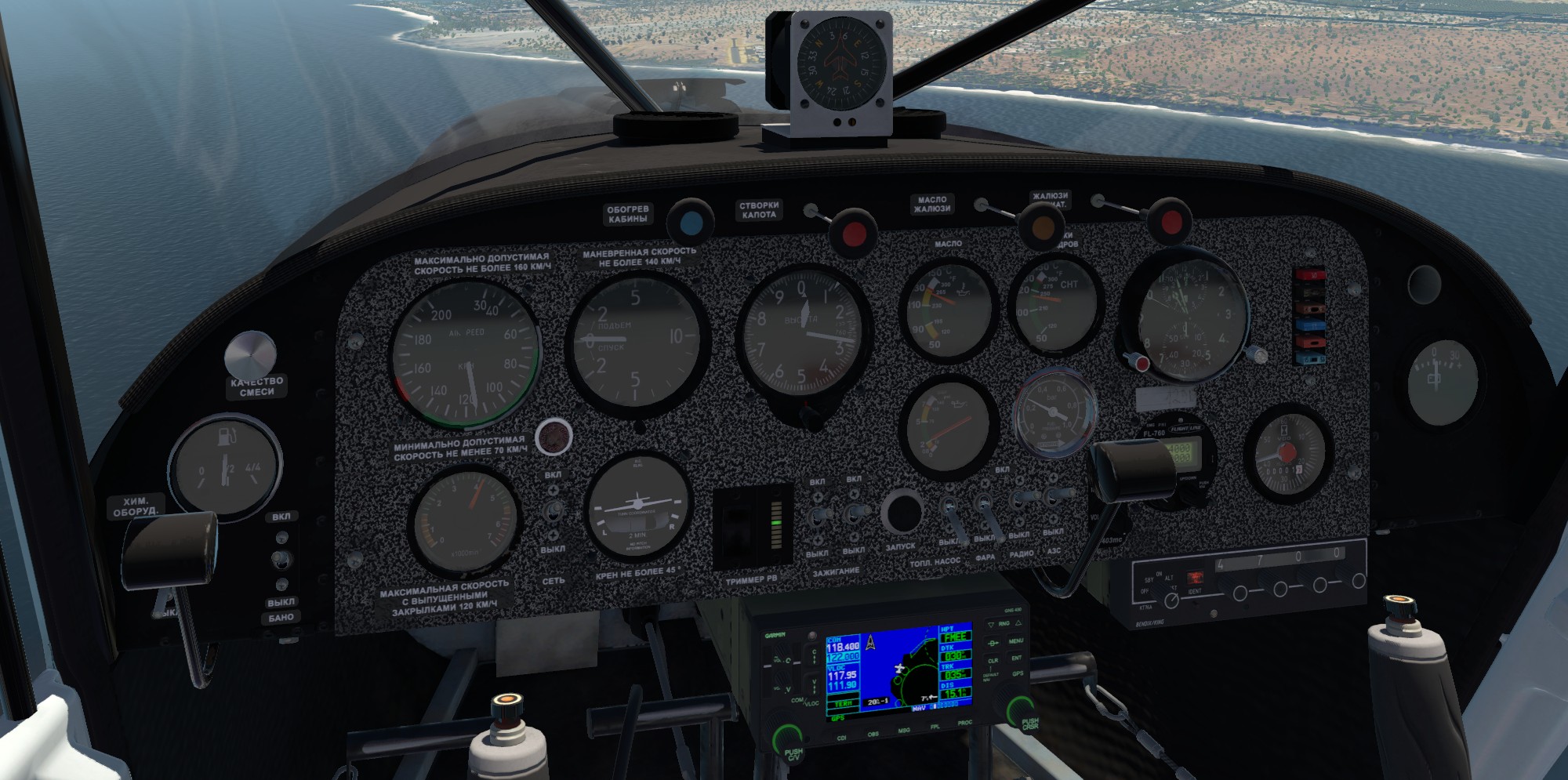

GNS 430 + Mad Flight Studio Spectr-Aero SP-30




Code from RealityXP.GNS.ini :

Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_430_1

[GNS_430_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects GPS to copilot side if true.
CopilotSide = false
; override GPS Unit# (1 or 2) or use 'this unit#' (0) (XPL 10.30+ for GPS2).
AutoGpsSource = 0
; override VLOC NAV# (1 or 2) or use 'RadiosPair' (0).
AutoNavSource = 0
; connects CDI mode to NAV/GPS switch if true.
AutoNavGps = true
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; enables Shadin Air Data computer if true.
UseAirData = true
; enables Shadin Fuel Data computer if true.
UseFuelData = true
; enables RYAN 9900BX TCAD if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enables device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route to flight plan file if true (.fms)
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = MAIN_BATTERY
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key (0: disable)
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS (0: disable)
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC (0: disable)
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter)
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt)
AFMS.gps_selected =
; main: COM Presets (1: enable)
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_430_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1827,309,731,307
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,206,490,206
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_430_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 523,1022,427,238
; screen only border size (pixels).
border.size = 2
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

As usual, feel free to adjust the settings to your liking.

Also please note that this plane uses its own GNS commands and thus the RXP GNS cannot be controlled by using the buttons/knobs (unless I missed something obvious). I'd suggest right-clicking on the display to pop-up the GNS 2D screen or using your flight controls mappings.

  • Like 1
  • Upvote 1
  • 2 months later...
Posted (edited)

Carenado F33A XP11



[GNS_430_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 9,1279,423,229
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false



Edited by RXP
  • Like 2
Posted (edited)

GNS 430W configuration file for Just Flight - Beechcraft Duchess Model 76


Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_430_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = false
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = AVIONICS_BUS
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 2950,1420,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_530_2]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = false
; connects GPS to copilot side if true.
CopilotSide = true
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 2
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = false
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = AVIONICS_BUS
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_2.WINDOW]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 2950,1420,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_2.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_430_1]
; comma separated list of render targets.
drawto = WINDOW, Garmin_430_screen
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = false
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets device power source:
; ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY,BUS_1,BUS_2,BUS_3,BUS_4,BUS_5,BUS_6
PowerSource = AVIONICS_BUS
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; HSI lateral deviation scale factor.
CdiScale = 1
; HSI vertical deviation scale factor.
GsiScale = 1
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; sets trainer process CPU: 1 to 32 (0: last core, -1: automatic).
CpuAffinity = -1
; cdi/obs: CDI Key
AFMS.cdi_key =
; cdi/obs: Selected Course for GPS
AFMS.sel_crs_gps =
; cdi/obs: Selected Course for VLOC
AFMS.sel_crs_vloc =
; cdi/obs: V-Flag State (1: declutter
AFMS.v_flag_declutter =
; main: GPS Selected (0: prompt, 1: auto)
AFMS.gps_selected = 1
; main: COM Presets
AFMS.com_presets =
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_430_1.WINDOW]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 2950,1420,490,206
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,206,490,206
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_430_1.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_430_1.Garmin_430_screen]
visible = true
nobezel = true
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1265,463,430,240
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true




Edited by Daedalus
  • Like 1
  • Upvote 1

Simulators: Prepar3D v5 Academic | X-Plane 1111.50+ | DCS  World  Open Beta MSFS 2020 Premium Deluxe |
PC Hardware: Dell U3417W Intel i9 10900K | msi RTX 2080 Ti  Gaming X Trio msi MPG Z490 Gaming Edge Wifi | G.Skill 32GB 3600Mhz CL16 | Samsung 970 EVO Plus+860 EVO+850 EVO x 1TB, Western Digital Black Caviar Black x 6 TB Corsair RM1000i Corsair H115i Platinum Fractal Design Define S2 Gunmetal |
Flight Controls: Fulcrum One Yoke Virpil VPC WarBRD Base Virpil VPC MongoosT-50CM Grip, Thrustmaster Warthog+F/A-18C Grip Thrustmaster TPR Rudder Pedals | Virtual Fly TQ6+Throttle Quadrant | Sismo B737 Max Gear Lever | TrackIR 5Monsterteck Desk Mounts |
My fleet catalog: Link

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Tom Allensworth,
    Founder of AVSIM Online


  • Flight Simulation's Premier Resource!

    AVSIM is a free service to the flight simulation community. AVSIM is staffed completely by volunteers and all funds donated to AVSIM go directly back to supporting the community. Your donation here helps to pay our bandwidth costs, emergency funding, and other general costs that crop up from time to time. Thank you for your support!

    Click here for more information and to see all donations year to date.
×
×
  • Create New...
