CARENADO A36 BONANZA

Add the following to the GNS.ini flie.

__________________________________

[GNS]
; comma separated list of gauges
gauges = GNS_430_1, GNS_430_2

[GNS_430_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 5,1528,430,230
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_430_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 5,1278,430,230
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true




  • Upvote 1
Posted

Excellent, thanks... did they ever release a XP11 version?  My xp10 version has the landing gear doors stuck down all the time

@Rodrigo Ferreira

| FAA ZMP |
| PPL ASEL |
| Windows 11 | MSI Z690 Tomahawk | 12700K 4.7GHz | MSI RTX 4080 | 32GB 5600 MHz DDR5 | 500GB Samsung 860 Evo SSD | 2x 2TB Samsung 970 Evo M.2 | EVGA 850W Gold | Corsair 5000X | HP G2 (VR) / LG 27" 1440p |





  • 3 weeks later...
Posted

Here's my Config, and mods for the Carenado B58 Baron, I also posted my file mods

which you will need to make your buttons an knobs work. In addition I deleted the two

stock GNS 430W entries from the cockpit using planemaker.exe, these could probably

be deleted from the obj file directly with a text editor. I'm not sure this matters, but if you

don't delete them, and your sizing is not perfect you can see edge glow from the stock

GNS 430W underneath it.

Jeff


;
; Carenado B58 Baron RealityXP.GNS.ini Config lines, modify your config accordingly

[GNS_430_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 6,442,420,230
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_430_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 451,442,420,230
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true


;
; If you want buttons and knobs, modify this file, the modified lines follow:
; X-Plane 11\Aircraft\Carenado B58_Baron_v3.2\Custom Avionics\DRFS\XPCMNDS.lua
;

n1Cup = findCommand("RXP/GNS/COM_OUTR_CW_1")
n1Fup = findCommand("RXP/GNS/COM_INNR_CW_1")
n1chu = findCommand("RXP/GNS/GPS_OUTR_CW_1")
n1pgu = findCommand("RXP/GNS/GPS_INNR_CW_1")
n1Cdn = findCommand("RXP/GNS/COM_OUTR_CCW_1")
n1Fdn = findCommand("RXP/GNS/COM_INNR_CCW_1")
n1chd = findCommand("RXP/GNS/GPS_OUTR_CCW_1 ")
n1pgd = findCommand("RXP/GNS/GPS_INNR_CCW_1")
n1zmo = findCommand("RXP/GNS/RUP_1")
n1zmi = findCommand("RXP/GNS/RDN_1")
n1cdi = findCommand("RXP/GNS/CDI_1")
n1obs = findCommand("RXP/GNS/OBS_1")
n1msg = findCommand("RXP/GNS/MSG_1")
n1fpl = findCommand("RXP/GNS/FPL_1")
n1prc = findCommand("RXP/GNS/PROC_1")
n1vnv = findCommand("RXP/GNS/VNAV_1")
n1dir = findCommand("RXP/GNS/DTO_1")
n1mnu = findCommand("RXP/GNS/MNU_1")
n1clr = findCommand("RXP/GNS/CLR_1")
n1ent = findCommand("RXP/GNS/ENT_1")
n1cmf = findCommand("RXP/GNS/CFLP_1")
n1nvf = findCommand("RXP/GNS/VFLP_1")
n1nct = findCommand("RXP/GNS/COM_PUSH_1")
n1csr = findCommand("RXP/GNS/GPS_PUSH_1")

n2Cup = findCommand("RXP/GNS/COM_OUTR_CW_2")
n2Fup = findCommand("RXP/GNS/COM_INNR_CW_2")
n2chu = findCommand("RXP/GNS/GPS_OUTR_CW_2")
n2pgu = findCommand("RXP/GNS/GPS_INNR_CW_2")
n2Cdn = findCommand("RXP/GNS/COM_OUTR_CCW_2")
n2Fdn = findCommand("RXP/GNS/COM_INNR_CCW_2")
n2chd = findCommand("RXP/GNS/GPS_OUTR_CCW_2 ")
n2pgd = findCommand("RXP/GNS/GPS_INNR_CCW_2")
n2zmo = findCommand("RXP/GNS/RUP_2")
n2zmi = findCommand("RXP/GNS/RDN_2")
n2cdi = findCommand("RXP/GNS/CDI_2")
n2obs = findCommand("RXP/GNS/OBS_2")
n2msg = findCommand("RXP/GNS/MSG_2")
n2fpl = findCommand("RXP/GNS/FPL_2")
n2prc = findCommand("RXP/GNS/PROC_2")
n2vnv = findCommand("RXP/GNS/VNAV_2")
n2dir = findCommand("RXP/GNS/DTO_2")
n2mnu = findCommand("RXP/GNS/MNU_2")
n2clr = findCommand("RXP/GNS/CLR_2")
n2ent = findCommand("RXP/GNS/ENT_2")
n2cmf = findCommand("RXP/GNS/CFLP_2")
n2nvf = findCommand("RXP/GNS/VFLP_2")
n2nct = findCommand("RXP/GNS/COM_PUSH_2")
n2csr = findCommand("RXP/GNS/GPS_PUSH_2")


  • Upvote 1
Posted (edited)

Fixing Buttons and knobs, this can be really frustrating to figure out. This is documented, in

the install doc, but it's not crystal clear. Hopefully this helps somebody:

[RXP: select "Use Simulator GPS Commands" option in the settings panel and this will do this automatically]

Spoiler



These values need to be replaced in your cockpit obj file in order
to make your buttons and knobs work.

The form of this file is:

NEW STRING, old string

So edit your OBJ files, and replace all the values listed below accordingly (I would
suggest using a decent editor, like 'scite' or 'notepad++', which tends to not mess
up files.)

sim/GPS/g430n1_coarse_up WITH RXP/GNS/COM_OUTR_CW_1

Do this for every entry in the file, and then it should work. If you do NOT find them
in the obj files, then you need to hunt throgh all the various files until you find them.

;
; First Device
;
RXP/GNS/COM_OUTR_CW_1,sim/GPS/g430n1_coarse_up
RXP/GNS/COM_INNR_CW_1,sim/GPS/g430n1_fine_up
RXP/GNS/GPS_OUTR_CW_1,sim/GPS/g430n1_chapter_up
RXP/GNS/GPS_INNR_CW_1,sim/GPS/g430n1_page_up
RXP/GNS/COM_OUTR_CCW_1,sim/GPS/g430n1_coarse_down
RXP/GNS/COM_INNR_CCW_1,sim/GPS/g430n1_fine_down
RXP/GNS/GPS_OUTR_CCW_1 ,sim/GPS/g430n1_chapter_dn
RXP/GNS/GPS_INNR_CCW_1,sim/GPS/g430n1_page_dn
RXP/GNS/RUP_1,sim/GPS/g430n1_zoom_out
RXP/GNS/RDN_1,sim/GPS/g430n1_zoom_in
RXP/GNS/CDI_1,sim/GPS/g430n1_cdi
RXP/GNS/OBS_1,sim/GPS/g430n1_obs
RXP/GNS/MSG_1,sim/GPS/g430n1_msg
RXP/GNS/FPL_1,sim/GPS/g430n1_fpl
RXP/GNS/PROC_1,sim/GPS/g430n1_proc
RXP/GNS/VNAV_1,sim/GPS/g430n1_vnav
RXP/GNS/DTO_1,sim/GPS/g430n1_direct
RXP/GNS/MNU_1,sim/GPS/g430n1_menu
RXP/GNS/CLR_1,sim/GPS/g430n1_clr
RXP/GNS/ENT_1,sim/GPS/g430n1_ent
RXP/GNS/CFLP_1,sim/GPS/g430n1_com_ff
RXP/GNS/VFLP_1,sim/GPS/g430n1_nav_ff
RXP/GNS/COM_PUSH_1,sim/GPS/g430n1_nav_com_tog
RXP/GNS/GPS_PUSH_1,sim/GPS/g430n1_cursor
;
; Second Device
;
RXP/GNS/COM_OUTR_CW_2,sim/GPS/g430n2_coarse_up
RXP/GNS/COM_INNR_CW_2,sim/GPS/g430n2_fine_up
RXP/GNS/GPS_OUTR_CW_2,sim/GPS/g430n2_chapter_up
RXP/GNS/GPS_INNR_CW_2,sim/GPS/g430n2_page_up
RXP/GNS/COM_OUTR_CCW_2,sim/GPS/g430n2_coarse_down
RXP/GNS/COM_INNR_CCW_2,sim/GPS/g430n2_fine_down
RXP/GNS/GPS_OUTR_CCW_2 ,sim/GPS/g430n2_chapter_dn
RXP/GNS/GPS_INNR_CCW_2,sim/GPS/g430n2_page_dn
RXP/GNS/RUP_2,sim/GPS/g430n2_zoom_out
RXP/GNS/RDN_2,sim/GPS/g430n2_zoom_in
RXP/GNS/CDI_2,sim/GPS/g430n2_cdi
RXP/GNS/OBS_2,sim/GPS/g430n2_obs
RXP/GNS/MSG_2,sim/GPS/g430n2_msg
RXP/GNS/FPL_2,sim/GPS/g430n2_fpl
RXP/GNS/PROC_2,sim/GPS/g430n2_proc
RXP/GNS/VNAV_2,sim/GPS/g430n2_vnav
RXP/GNS/DTO_2,sim/GPS/g430n2_direct
RXP/GNS/MNU_2,sim/GPS/g430n2_menu
RXP/GNS/CLR_2,sim/GPS/g430n2_clr
RXP/GNS/ENT_2,sim/GPS/g430n2_ent
RXP/GNS/CFLP_2,sim/GPS/g430n2_com_ff
RXP/GNS/VFLP_2,sim/GPS/g430n2_nav_ff
RXP/GNS/COM_PUSH_2,sim/GPS/g430n2_nav_com_tog
RXP/GNS/GPS_PUSH_2,sim/GPS/g430n2_cursor





Edited by RXP
  • Commercial Member
Posted
On February 16, 2018 at 5:12 PM, n85ae said:

sim/GPS/g430n1_coarse_up WITH RXP/GNS/COM_OUTR_CW_1

Hi, changing these shouldn't be necessary when enabling the "Use Simulator GPS Commands" option in the settings panel!

  • Like 1

Jean-Luc | reality-xp.com
This message from Reality XP is protected by a disclaimer: reality-xp.com/aboutrealityxp/email.html

Let your voice be heard and help us make a difference for you: Vote !
Open up communications with Reality-XP (Microsoft Flight Simulator Forums)

  • 2 weeks later...
  • 5 weeks later...
Posted (edited)

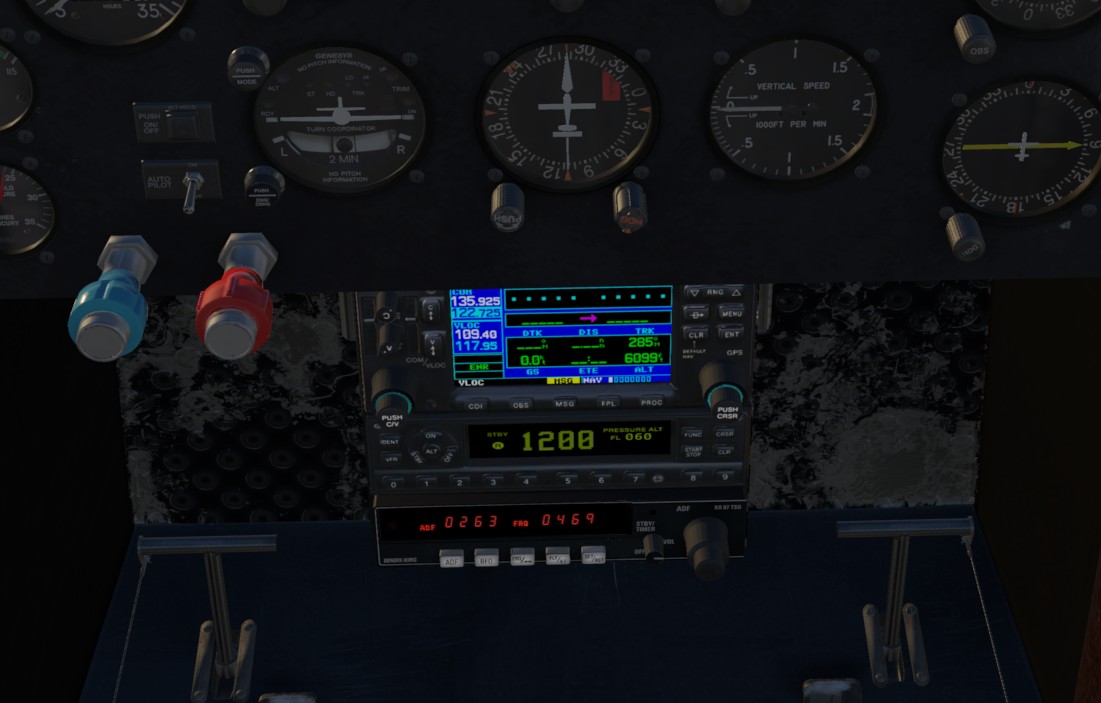

GNS 430 + ASDG Super Cub (v1.12)

(updated from the ASDG SC v1.04 from that thread)


Code from RealityXP.GNS.ini :

Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_430_1

[GNS_430_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = false
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course if true.
LinkCrs = false
; connects HSI OBS to GPS if true.
LinkObs = false
; connects GPS to VOR if true.
LinkVor = false
; connects GPS to Autopilot if true.
LinkOto = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true

[GNS_430_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 500,292,698,293
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; enable popup window if true (screen clickspot)
usepopup = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; display as popout window if true.
undocked = false

[GNS_430_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1260,1921,432,233
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

As usual, feel free to adjust the settings to your liking.

Edited by Bourrinopathe
  • Upvote 1
Posted

..new CT210M CENTURION II by Carenado with Stock G530. Can somebody, please post the setup for this AC ??



tnx

  • 1 month later...
Posted (edited)

Carenado CT210M CENTURION II

This is my first go at this but it seems to be working for me.

[GNS]
; comma separated list of gauges
gauges = GNS_430_2, GNS_530_1

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 7,1678,521,386
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; enable popup window if true (screen clickspot)
usepopup = true

[GNS_430_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 11,1280,424,231
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; enable popup window if true (screen clickspot)
usepopup = true


Edited by RXP
  • Upvote 1

Tom Landry




  • 1 month later...
Posted (edited)

530 in the bell 412 by x trident

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1430,1060,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 500,764,525,392
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true


Edited by RXP
  • Upvote 1
Posted (edited)

Carenado B1900 XP11

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS, Garmin_530_screen
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects GPS to Autopilot if true.
LinkOto = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; mute sound when simulator window looses focus if false.
NoAudioFocus = false

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 980,765,614,447
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; enable popup window if true (screen clickspot)
usepopup = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; display as popout window if true (requires XP11.1).
undocked = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357

[GNS_530_1.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true

[GNS_530_1.Garmin_530_screen]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 0,770,522,392
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true


Edited by RXP
  • Upvote 1
Posted (edited)

Dual 530's in the fantastic VSkylabs DC3 XP11

[GNS]
; comma separated list of gauges
gauges = GNS_530_1, GNS_530_2

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1430,1060,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,1528,492,362
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true
usemouse = true
; enable popup window if true (screen clickspot)
usepopup = true?

[GNS_530_2]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = false
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_2.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1430,1060,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 1037,1874,436,323
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true
usemouse = true
; enable popup window if true (screen clickspot)
usepopup = true?


Edited by RXP
  • Upvote 1
Posted (edited)

one last one the recently updated X-Aviation MU2 XP11

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = true
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1430,1060,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = false
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 65,994,262,190
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = true
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true


Edited by RXP
  • Upvote 1
  • 4 weeks later...
Posted (edited)

GNS530W config for Avia71's Piper Aerostar

43540339111_dabef0547e_o.jpgAvia71_RXP_config by ryan b, on Flickr



Spoiler

[GNS]
; comma separated list of gauges
gauges = GNS_530_1

[GNS_530_1]
; comma separated list of render targets.
drawto = WINDOW, PANELS, Garmin_530_screen
; is the master device if true.
MasterDevice = true
; connects GPS to copilot side if true.
CopilotSide = false
; selects COM/NAV Radios '1' or '2'.
RadiosPair = 1
; uses computer time if true, simulator time otherwise.
ComputerTime = false
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Display = -100
; integral lighting rheostat index (0 to 3) or percent (-100 to 0)
Rheostat.Buttons = -75
; connects GPS to Autopilot if true.
LinkOto = true
; connects GPS to HSI if true.
LinkHsi = true
; connects GPS to HSI course motor if true.
LinkCrs = true
; connects GPS to OBS input if true (LinkHsi/OBS or AutoNavSource/OBS).
LinkObs = true
; connects GPS to VOR if true.
LinkVor = false
; connects CDI key to NAV/GPS switch if true.
AutoNavGps = true
; selects VLOC NAV '1' or '2'. '0' selects same source as 'RadiosPair'.
AutoNavSource = 0
; sets device power source: ALWAYS_ON,AVIONICS_BUS,MAIN_BATTERY
PowerSource = AVIONICS_BUS
; sets device power knob switch mode: NONE,DEFAULT_ON,DEFAULT_OFF
PowerKnob = NONE
; connects GPS to Shadin Air Data computer if true.
UseAirData = true
; connects GPS to Shadin Fuel Data computer if true.
UseFuelData = true
; connects GPS to RYAN 9900BX if true.
UseRyanTcad = true
; sets TCAD sound alerts volume in percent: 0 to 100.
RyanTcadVolume = 50
; sets TCAD maximum number of targets to X-Plane AI Traffic Count.
UseTcadAiCount = true
; connects GPS #1 to GPS #2 if true (both required).
UseCrossFill = false
; enable device failures if true.
UseFailures = false
; uses Simulator GPS commands if true.
UseSimGpsCmds = true
; updates Simulator GPS flight plan if true.
LinkSimGps = false
; saves the active route as a Simulator flight plan if true.
AutoSavePln = false
; sets fuel type: AVGAS,JETA,JETB
FuelType = AVGAS
; sets TAWS type: TERR,TAWS
TawsMode = TERR
; sets TAWS surface: HARD,HARD_SOFT,WATER,ANY
TawsSurface = HARD_SOFT
; TAWS minimum runway length (feet)
TawsMinLength = 40
; sets master sound volume in percent: 0 to 100.
MasterVolume = 100
; mute sound when simulator window looses focus if false.
NoAudioFocus = false
; selects the CPU running the trainer process: 1 to 32
; 0: last core, -1: automatic.
CpuAffinity = -1
; connects to: 'PFC_STACK','PFC_430','PFC_530' or any '#PID' (#D002 for PFC_430)
; no value connects to first found, 'OFF' disables connection.
HardwareDevice =
; hardware selector number or -1 to disable.
HardwareIdx = -1

[GNS_530_1.Garmin_530_screen]
visible = true
nobezel = true
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1,2048,521,391

[GNS_530_1.WINDOW]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = false
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = WINDOW
; display position and dimension (left,top,width,height)
frame.rect = 1395,1020,490,357
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true
; VR mode position and dimension (left,top,width,height) (requires XP11.20)
vrmode.rect = 0,357,490,357
; display as popout window if true (requires XP11.1).
undocked = false
; display mouse tooltips if true.
tooltips = false
; freeze display position if true.
locked = false

[GNS_530_1.PANELS]
; display window if true.
visible = false
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANELS
; display position and dimension (left,top,width,height)
frame.rect = 0,0,0,0
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse clickspots if true, disable if false (use SHIFT to override)
usemouse = true
; left mouse button on the screen toggles popup window if true.
popleft = false
; right mouse button on the screen toggles popup window if true (requires XP11.1).
popright = true




Edited by RXP
  • Like 2
  • Upvote 1

| FAA ZMP |
| PPL ASEL |
| Windows 11 | MSI Z690 Tomahawk | 12700K 4.7GHz | MSI RTX 4080 | 32GB 5600 MHz DDR5 | 500GB Samsung 860 Evo SSD | 2x 2TB Samsung 970 Evo M.2 | EVGA 850W Gold | Corsair 5000X | HP G2 (VR) / LG 27" 1440p |





Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Tom Allensworth,
    Founder of AVSIM Online


  • Flight Simulation's Premier Resource!

    AVSIM is a free service to the flight simulation community. AVSIM is staffed completely by volunteers and all funds donated to AVSIM go directly back to supporting the community. Your donation here helps to pay our bandwidth costs, emergency funding, and other general costs that crop up from time to time. Thank you for your support!

    Click here for more information and to see all donations year to date.
×
×
  • Create New...
