My next PC project (SimPit v3.5) is going to involve a bunch of additional components that probably just aren't going to fit into my Thermaltake Core X9 PC case and for that matter may not fit into any "closed" PC case?  I'm looking at open racks but they all seem to be "miner" based.

Requirements:

• Must be horizontal mount for Motherboard
• Support 3X power supplies (EVGA 1600Watt (CPU/MB/GPUs), EVGA 750Watt (peripherals, fans, and pumps), DC 24V 312Watt (Koolance chiller))
• Support 3X coolant pumps (with attached reservoirs: PR22-D5 (CPU only), 2X EK-XRES 100 DDC (1 for MB, 1 for 2X 2080Ti ))
• Support 2X 480 60mm Radiators and 1X 240 60mm Radiator
• Support for Koolance VLX-450 Chiller (for CPU only)
• Support 3X SSDs
• Support for 2X 2080Ti and 2X PCIe USB 2/3 cards
• Support for Koolance monitoring unit CTD-CD1224 (coolant temp/flow)

Don't really care how it looks, just needs easy access and be functional (open is fine).  On wheels is preferred but I can also add some wheels if not provided.  I'm expecting to do some fabrication but the less fab I have to do the better … needs lots of flexible mounting options and bracket support.

Any suggestions welcome.

Cheers, Rob.



This should do it!

29 minutes ago, shivers9 said:

This should do it!

Rofl.  But how can you be so sure Sam?

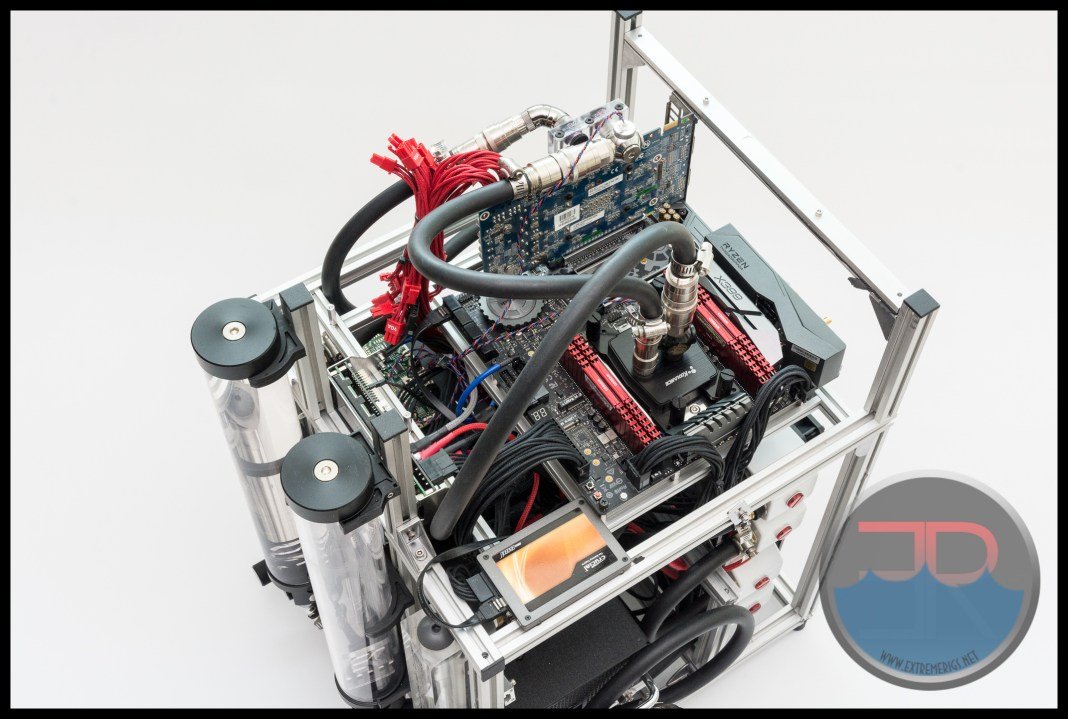

Think I found one, but have no idea where to get this open layout?

Doesn't seem to be any info on the open bench at www.extremerigs.net … but that's a lot like what I'd want + some wheels.

Cheers, Rob.

29 minutes ago, FunknNasty said:

Rofl.  But how can you be so sure Sam?

I have faith in Rob. He will just have to be carefull about which memory sticks that he goes with. The ones with tall fins may not squeez in!!

Try here......https://techgage.com/viewimg/?img=/reviews/puget_systems/test_bench_eatx_model1/puget_systems_test_bench_eatx_model1_05.jpg&desc=Puget Systems Test Bench Kit EATX Version 1 - Steps 6 Through 8

Think I may have found a source … but no idea on reliability of delivery … eMail sent to contact.

http://spotswoodcomputercases.com/wp/?page_id=433

Thanks for the link Sam, not a fan of the clear plastic/acrylic.

Cheers, Rob.

Easy:

https://www.mountainmods.com/

https://www.amazon.com/gp/product/B078TMMJY8/?tag=thowisguy-20

https://techguided.com/open-air-pc-case/



Thanks for the links … Mountain Mods looks very interesting, sent out some eMails.

The TC P90 is nice but might actually be too small and it's not horizontal mount MB.

Cheers, Rob.



How about a Lian-Li PC-T70 or PC-T80?

Edited October 17, 20187 yr by vortex681

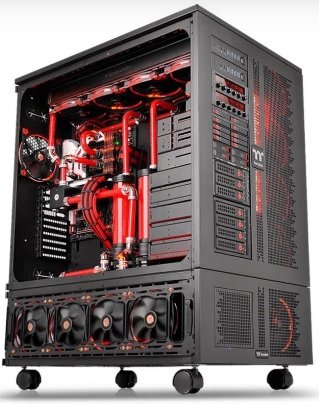

I contacted Rich over at Spotswood Computer Cases, but they are currently moving shop and fabrication couldn't get started until early Nov.  I did NOT hear back from Mountain Mods so no option there.  Unfortunately I need something within the next week (preferably by early next week) … so I ended up going with a vertical mount MB (not my preferred option but I probably will not have this CPU/MB combo for more than about a year anyway) … another Thermaltake Core W200 with the Core P200 option.

The P200 section will house the Koolance water chiller unit and a 480x60 Radiator and power supply dedicated for the Koolance chiller (for CPU).  The backside of W200 will house the 3 coolant pumps and reservoirs and two additional power supplies.  Top will have two more 480x60 Radiators (for both GPUs) and the front will have a 240 and 120 radiator dedicated to Asus MB waterblock.

I'm hoping to have all the components here by Oct 23rd … 9900K CPU is supposed to ship Oct. 19th, but the Asus MB has no ETA yet which could be the major delaying factor (most of the other components have arrived, EK CPU block, Koolance fittings/chiller, etc.).

I am a little concerned about household power draw … may have to route to a different household circuit as they are typically 15-20A to the bedrooms.

Cheers, Rob.

1 hour ago, vortex681 said:

Lian-Li PC-T70 or PC-T80?

The Lian-Li PC-T80 was another very good option … but I had a hard time finding one in the US and I'm not sure it would have been large enough.

Cheers, Rob.



Make one!

Activate your DIY neurological pathways.

Singularity Computers have an interesting video on line at the moment regarding their brief case PC. A big aluminium tool storage box would be a good basis. Or just buy the aluminium and dive in. After all, the construction is pretty basic.

Most of the PC open test benches aren't big enough for your needs, so as I say, I would build one exactly to my specs.

Although I guess you could buy TWO test benches and screw them together.

I've even seen test benches built out of wood.

Edited October 18, 20187 yr by martin-w

One or even two of these guys...

http://spotswoodcomputercases.com/wp/?page_id=531

Send them an email and enquire as to availability.



Edited October 18, 20187 yr by martin-w
