I am a relative newby to FSX.

When using the radio stack to land one of the Microsoft FSX planes at Sydney Kingsford Smith airport, there is no distance or speed shown on the DME panel.

For example, if I am landing on runway 07 - the ILS/DME frequency is shown as 109.9 for the airfield. I enter this in NAV1 and make it active.

When I approach the runway, the NAV button lines the aircraft up with the runway. At no stage does are speed or distance shown in the display.

In desperation I have tried various combinations of buttons pressed of NAV1 and DME with no display. I have also tried various Microsoft propeller aircraft.

As an aside, the OFF button in the DME display cannot be moved - I guess it is permanently on - like wise the knob does not turn.

I have seen a UTUBE video where it does work.

Any suggestions as to how this can be made to work?

Share this post


Link to post
Share on other sites

Are you sure that this ILS for the runway provides DME information? Not all airports provide DME.   I'll check it out later this morning.

Welcome to the AVSIM forums!:happy:


Charlie Aron

CPU-AMD 2GHZ  2GB RAM  NVidia Graphics FSX with SP1 and SP2  running Win XP





Share this post


Link to post
Share on other sites

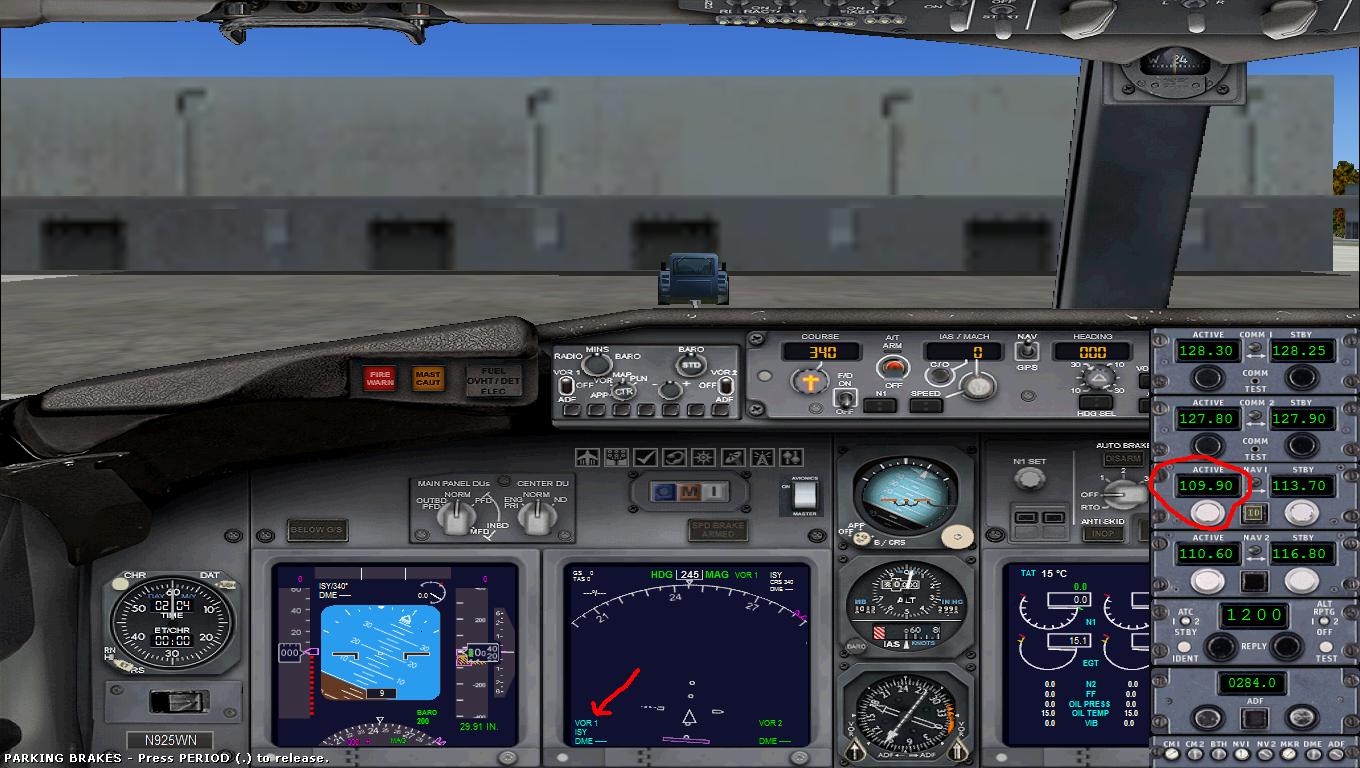

As a test, I planted my 737-800 at a cargo parking spot at Kingsford-Smith Airport.  The Nav1 radio tuned to 109.9.  A good indication of ISY (ILS designation) and NO DME (Distance Measuring Equipment).

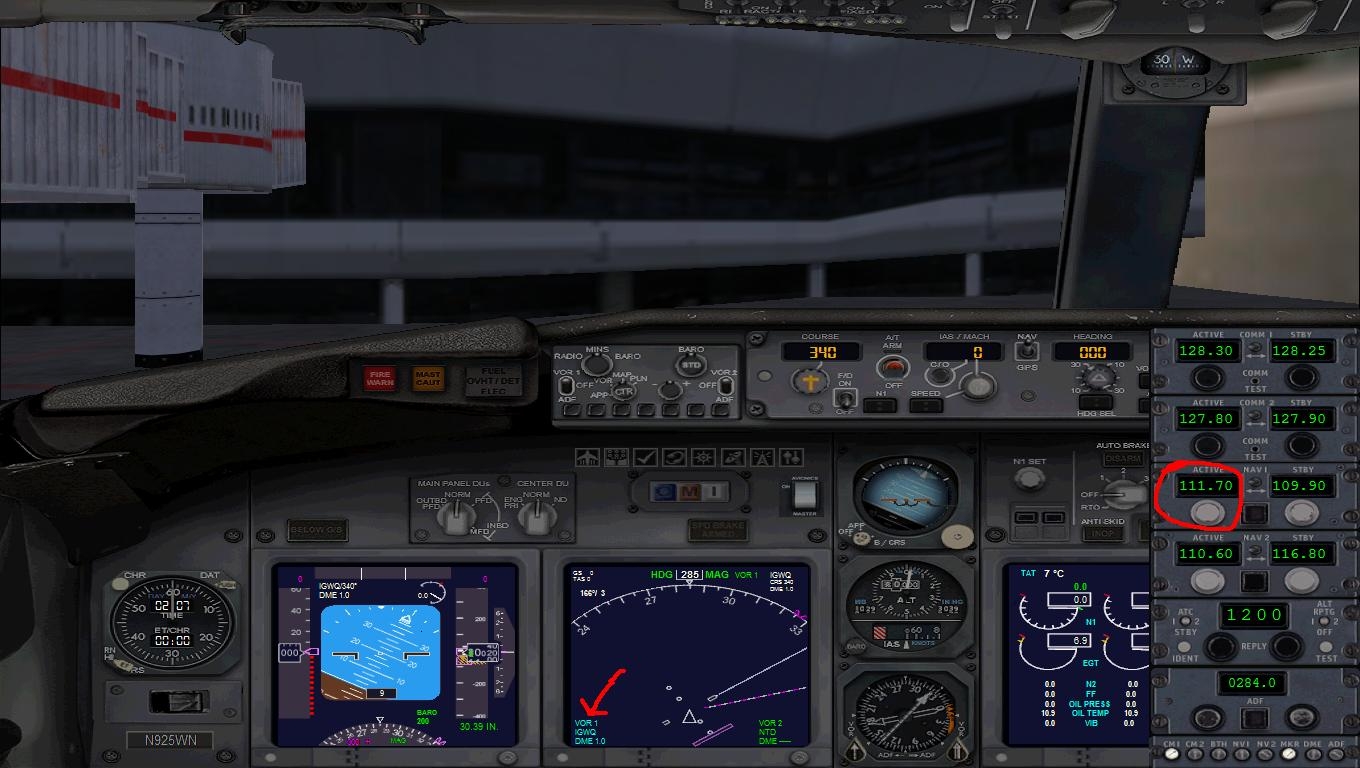

As a second test, I planted my aircraft at my home airport, KSFO with a "known" good DME.  All indications are spot on!








Charlie Aron

CPU-AMD 2GHZ  2GB RAM  NVidia Graphics FSX with SP1 and SP2  running Win XP





Share this post


Link to post
Share on other sites

Also keep in mind that the Youtube video that you saw, the person may have a payware version of that airport that has DME available.


Charlie Aron

CPU-AMD 2GHZ  2GB RAM  NVidia Graphics FSX with SP1 and SP2  running Win XP





Share this post


Link to post
Share on other sites

Thanks for the prompt replies.

So when I see "ILS/DME 109.9" on the airport chart - how can I know if DME is provided or only ILS?



Share this post


Link to post
Share on other sites

You probably won't know it until you fly it!


Charlie Aron

CPU-AMD 2GHZ  2GB RAM  NVidia Graphics FSX with SP1 and SP2  running Win XP





Share this post


Link to post
Share on other sites
2 hours ago, AllanK said:

Thanks for the prompt replies.

So when I see "ILS/DME 109.9" on the airport chart - how can I know if DME is provided or only ILS?



You look at the real world approach procedure for that runway.




Frank Patton

Gigabyte GA-Z97X-Gaming 7 MOB; i7 4790 4.4Ghz; 16gb DDR3 2300; MSI GTX970 4gb Gaming 100ME, Coolermaster Pro 5 case, Corsair H100i

Former USAF meteorologist and ground weather school instructor; AOPA Member #07379126

There is no limit to what a man can do or where he can go if he doesn’t mind who gets the credit! - Benjamin Jowett



Share this post


Link to post
Share on other sites

Be aware, there are also some ILS approaches in FSX/P3D that do not have a GS (glide scope), just the localizer to align you with runway. RJTH Hachijojima is one that I have landed at with no glide scope. This ILS does have a DME, but no GS.

John Cottreau

Share this post


Link to post
Share on other sites
