Awful AA in P3D v3

Recommended Posts

Hi



I've been struggling with the Anti Aliasing for a very long time in P3D v3. Its very shimmery and the planes looks "liny" and ugly. First i thought it was my 130$ monitor so i bought a QHD 2560x1440p IPS but that didn't solve the problem at all.



Have you guys any suggestions on whats the problem? I currently run a GTX 970 with i7 4790k @4.4Ghz.





Good day



Jacob

Share this post


Link to post
Help AVSIM continue to serve you!
Please donate today!

Hi,



the usual suggestion is to use Nvidia Inspector and switch Antialiasing to "Enhance the Application Setting"  and "Transparency Supersampling" to 4x "SGSS" (Sparse Grid Supersampling). This should be accompanied by an in-game AA setting of 4x. Just google for details.



This inevitably incurs a framerate loss which may or may not be acceptable, but you have a strong system, thus try it.



I use the same monitor resolution as you, but a GTX 760 and find AA not that bad, although there is certainly room for improvement.



Kind regards, Michael





Share this post


Link to post

Michael gave the answer. However, if FPS are an issue (especially in clouds) you could also try 2xSGSS NI and 8 x MSAA ingame.

Share this post


Link to post

Try 8xSS in NI and 8x MSAA in game. Read that on P3D forum

Share this post


Link to post

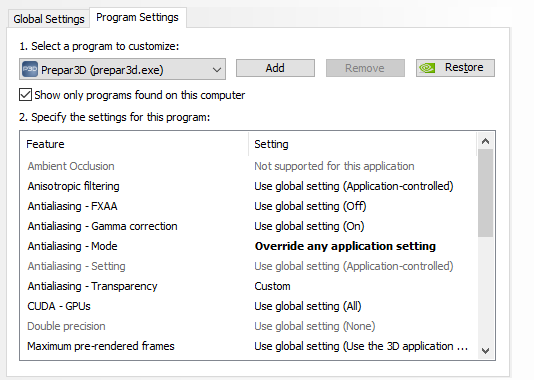

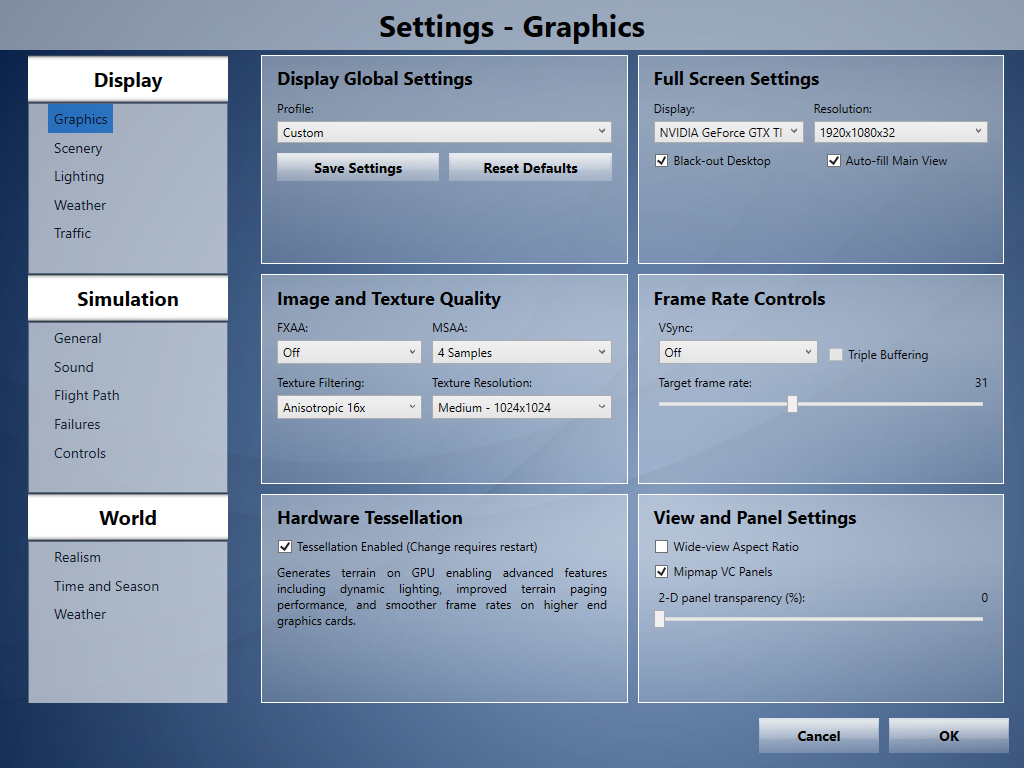

Here is my setting. Remember to apply this in Nvidia Inspector every time you are updating/installing drivers.







Share this post


Link to post

Thanks guys for the help. I will try these methods and let you know how it works!



/Jacob

Share this post


Link to post

Bad news.



Can't see any difference between using NI and not. Im starting to wonder if its my GTX 970 thats the problem.

Share this post


Link to post

I believe the screenshot above is incorrect. You need to set antialiasing mode to "enhance the application setting" and antialiasing transparency supersampling to 4x sparse grid super sampling.



In P3D you must set MSAA to match the 4x or 8x you put in NI. So in this case I'd recommend 4x as 8x cripples performance when flying in heavy clouds.



There should be a big difference in appearance.

Share this post


Link to post

I believe the screenshot above is incorrect. You need to set antialiasing mode to "enhance the application setting" and antialiasing transparency supersampling to 4x sparse grid super sampling.



In P3D you must set MSAA to match the 4x or 8x you put in NI. So in this case I'd recommend 4x as 8x cripples performance when flying in heavy clouds.



There should be a big difference in appearance.



Per Steves instruction from another post its override application which is what I use - so it appears to be fine as posted above

Share this post


Link to post

SGSS (particularly 8X) is still very hard on performance, particularly in dense clouds. As you have a 970, you have another option which is the ability to enable Dynamic Super Resolution (DSR) through the Nvidia Control panel, which allows for much improved AA with low-no performance impact, even allowing you to run in-sim MSAA as low as 2X. You can also do away with using NVI which is a plus.



To enable:

- head into the Nvidia Control Panel and set DSR factors to something like 2X, and set the DSR Smoothness to the default of 33% to start. Click apply. Your desktop resolution should remain as-is; all you've enabled is the ability to select the higher DSR resolution within an application.

- Next, go into the display settings in P3D and select the new DSR resolution from the dropdown - you likely won't notice anything change immediately.

- Then, load up a flight and alt+enter twice to toggle in and out of windowed mode. DSR should now be enabled (the red info text will be much smaller, but the change in AA should also be immediately apparent).

- When you exit P3D, you resolution should switch back to your default.



Note: This method is only available on Maxwell and later GPUs.

Share this post


Link to post

Bad news.



Can't see any difference between using NI and not. Im starting to wonder if its my GTX 970 thats the problem.



Don't believe you GPU is the problem..

Be sure to use the correct profile and select apply changes and run NI as admin.. Also check your settings in Nvidia control panel


Share this post


Link to post

I use "Enhance Application Settings" not override.  Also recommend you don't run a different DXGI (like SweetFX/Reshade and/or any product that puts a DXGI in the root of P3D).






As far as monitors, one step up to 4K will make the AA look great without having to use NI SGSS AA.



Cheers, Rob.

  • Upvote 1

Share this post


Link to post

I too use "Enhance the Application Setting" and "4x Sparse Grid Super Sampling". Mind you, it's a moot point these days, since Nvidia Inspector ignores any changes that I try to make :mad:

Share this post


Link to post

Try 8xSS in NI and 8x MSAA in game. Read that on P3D forum

This setting will not eliminate cockpit panel shimmering such as in Carenados Kingair C90B. For that at least 2 x SGSS is required.

Share this post


Link to post

I use "Enhance Application Settings" not override.  Also recommend you don't run a different DXGI (like SweetFX/Reshade and/or any product that puts a DXGI in the root of P3D).



Thanks Rob for the post - much appreciated

Share this post


Link to post
