ryanbatcund

RXP GTN in the Panthera

Recommended Posts

This isn't my work, a user at x plane dot org has created a nice mod for the GTN 750 in Aerobask Panthera.  I'm trying to contact him to make sure it's ok to post his work.

But screenshots!  I think there may be a way to get the GTN 650 working and I have been playing with some values but no luck so far.

If you don't have the Panthera I highly recommend it - super plane!

edit:  I've just now taken what I learned from that user and made a GTN 750 mod for the Aerobask Eclipse 550 v2!

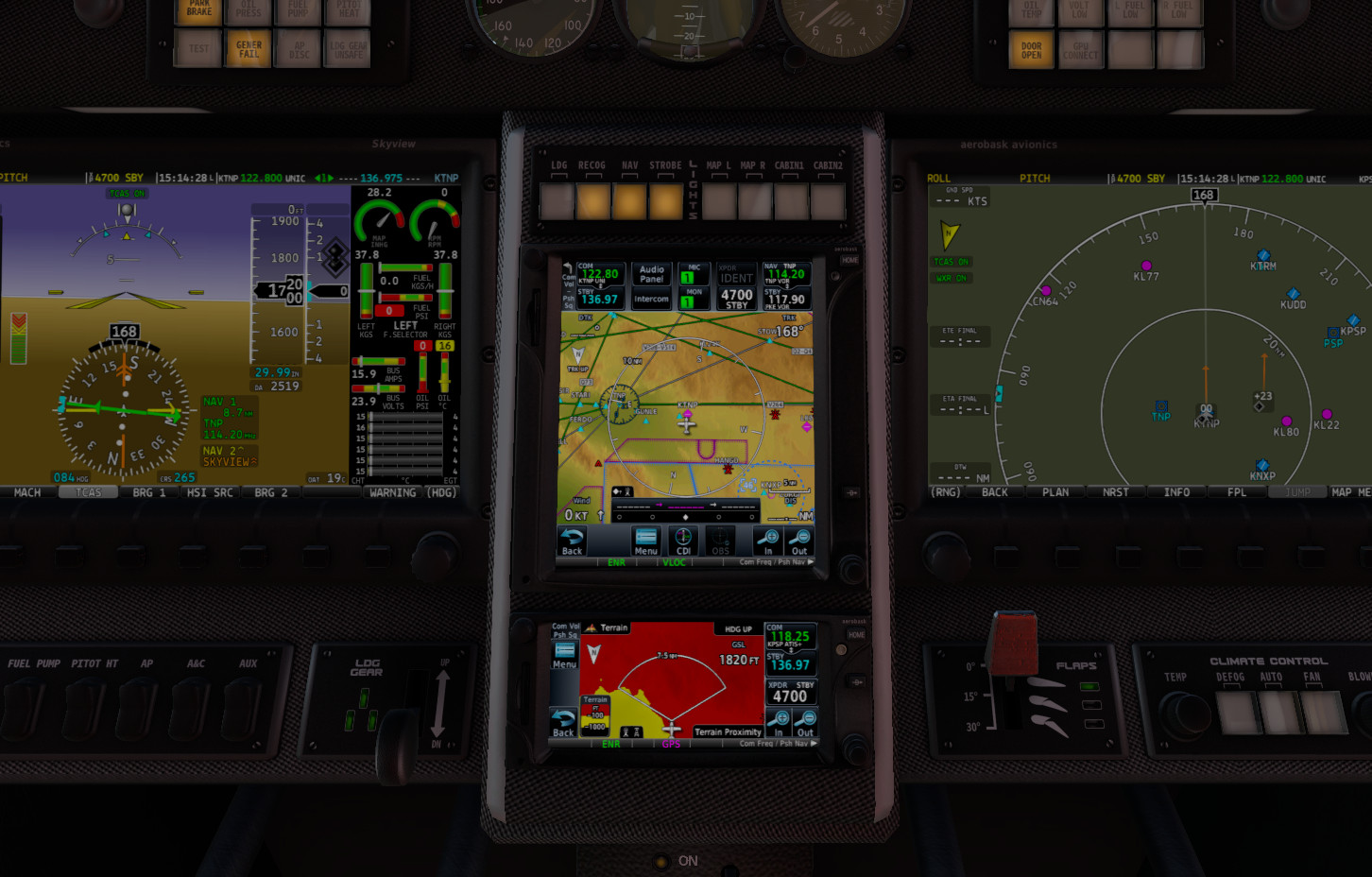

37577019364_5c5f8e0b49_o.jpgpantheraGTN2 by ryan b, on Flickr

26512210629_563b471b6e_o.jpgpantheraGTN by ryan b, on Flickr



38233306726_8a1f12e339_o.jpgeclipseGTNRXP2 by ryan b, on Flickr

37577368834_4e7b7236ea_o.jpgeclipseGTNRXP by ryan b, on Flickr

  • Upvote 1

Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

Nice!
Do the physical buttons work correctly with that mod?
I had some success with the Panthera (I don't own the Eclipse) - using XP v11.10b6 (where the manipulators have some issues).
The tactile interface works but the clicks are also registered to control the underlaying Aerobask GTNs.
I didn't test much but it seems ok and does not interfere with the RXP GTNs functions.
I was thinking about removing some folders and references in the Panthera aicraft folder but I didn't have the time to try and I'm not sure it wouldn't brake something important.

It looks decent enough but it's not fully functional due to that slight issue.
Also, we're loosing Otto Pilot from the Aerobask GTN 650 ;)


If anyone wants to give it a shot, you can try the following settings:
(copy-paste the appropriate parts)

GTN 750 + GTN 650 + Aerobask Panthera
(not perfect but useable)

Quote

[GTN]
; comma separated list of gauges
gauges = GTN_650_2, GTN_750_1

[GTN_750_1.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1024,2050,600,710
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse option: NONE,POPUP,TOUCHSCREEN
usemouse = TOUCHSCREEN

[GTN_650_2.PANELS]
; display window if true.
visible = true
; show screen only gauge if true.
nobezel = true
; display type: WINDOW,PANEL2D,PANEL3D,PANELS
frame.type = PANEL3D
; display position and dimension (left,top,width,height)
frame.rect = 1024,1339,596,266
; screen only border size (pixels).
border.size = 0
; screen only border color (#RGB or #RGBA).
border.rgba = #000000
; enable mouse option: NONE,POPUP,TOUCHSCREEN
usemouse = TOUCHSCREEN

Note: it looks like the polygons used to display the dynamic texture of the GTNs do not fill the whole space available for the GTNs 3D models, this prevents the RXP GTNs from being perfectly aligned to the 3D models.

[ Is there a way to get more formatting options for the posts in that forum? I don't see anything to change the font color, size, add foldable/hidden content, etc.]

  • Upvote 1

Share this post


Link to post
Share on other sites

I decided to NOT include the 650 for that reason you mentioned... I wanted the AP buttons to work still.  And I don't really need a 650 unless RXP gives us crossfill someday HEHE!

No I can't get the buttons to work....  I don't understand much about XP's 3d rendering so I'd have to look into it.

Share this post


Link to post
Share on other sites
13 minutes ago, ryanbatcund said:

I decided to NOT include the 650 for that reason you mentioned... I wanted the AP buttons to work still.  And I don't really need a 650 unless RXP gives us crossfill someday HEHE!

No I can't get the buttons to work....  I don't understand much about XP's 3d rendering so I'd have to look into it.



Nice screenshots you posted above, Ryan, but i believe this thread is to post the configuration also, not just screenshots. Can you share your configuration?

Thanks.

  • Upvote 1

Share this post


Link to post
Share on other sites
2 minutes ago, Alvega said:



Nice screenshots you posted above, Ryan, but i believe this thread is to post the configuration also, not just screenshots. Can you share your configuration?

Thanks.

I'm trying to get a hold of the user at xplane dot Org who made the first mod for the Panthera - I basically used his work to get the Eclipse working.  Otherwise if you have an account there go to the Aerobask Panthera forums and search GTN and it should come up.

Share this post


Link to post
Share on other sites
16 minutes ago, Alvega said:

but i believe this thread is to post the configuration also, not just screenshots.

I've moved the discussion to its own thread. The 'Official Panel Configuration' thread is for posting final mods only, so as to keep it easier for others to find the mods (for lack of 'file library' feature in the forum).

It is best discussing the integration separately, and once the mod is finalized, to post the config in the thread.

Share this post


Link to post
Share on other sites

Sorry yeah I was hoping to get the guy's permission but he hasn't responded.

Here's his post with instructions:  https://forums.x-plane.org/index.php?/forums/topic/118729-panthera-realityxp-gtn750/&do=findComment&comment=1273079

The eclipse is pretty much the same.  I'm guessing the Velocity V Twin would also be the same - I'm still thinking about that plane.  My GPU is already starving for vram when I run XP11 lol

Share this post


Link to post
Share on other sites

Hi Ryan,

I tried what he said in the link and the GTN shows up, but there are synchronization problems between the RXP GTN and the left Skyview. As an example, if in the left Skyview I select LOC and then I change the RXP GTN to GPS, the left Skyview doesn't change (stays in LOC) and the glideslope bar starts blinking.

Also I cannot open the RXP GTN window when I press the sd card on the GTN, it opens the default GTN instead.

Another problem is 2 flighplans must be inserted, one for the RXP GTN and one for the default, otherwise they don't show on both.

Are you having these problems too?

Thanks.

Share this post


Link to post
Share on other sites

I'll make a wild guess, but I'm not certain it's what's involved:

The Aerobask GTNs and Skyview are plugins and thus do not communicate with the RXP GTNs directly.
They probably interact with the X-Plane navigation logic in a similar way the RXP GTNs do, by directly controlling/injecting the commands in the navigation system.
That would mean the RXP GTNs only interact with X-Plane and can't directly modify the Skyview.

With the .ini settings you tried, the buttons are still bound to the Aerobask GTN functions. Changing what they do would require editing the panthera_cockpit.obj and change the appropriate references (it can be done with a text editor like Notepad++ or Sublime Text).
For example, that command controls what the volume knob axis does for the GTN model you interact with:

ATTR_manip_drag_axis    rotate_medium    0.1    0    0    0    1    aerobask/panthera/gtn750_vol

You could change the aerobask/panthera/gtn750_vol by a RXP GTN command (see the manual).
It's a time consuming process to change all those references but not that difficult.
(unfortunately, I currently don't have the time to edit that file myself)

The same could be done to display the RXP GTN popup window by clicking on the memory card.
It would be those lines (panthera_cockpit.obj):

ATTR_manip_toggle    button    1    0    aerobask/panthera/gtn650_Show

ATTR_manip_toggle    button    1    0    aerobask/panthera/gtn750_Show

You could try to use those commands instead:

ATTR_manip_toggle    button    1    0   RXP/GTN/TOGGLE_WINDOW_2

ATTR_manip_toggle    button    1    0   RXP/GTN/TOGGLE_WINDOW_1

I didn't try, but theoretically it should do the trick. You can save a backup of the original file and try these.

EDIT:

A quick search showed those commands:
ATTR_manip_command    button    aerobask/gtn750/Dct
ATTR_manip_command    button    aerobask/gtn650/Dct
ATTR_manip_command    button    aerobask/gtn750/Home
ATTR_manip_command    button    aerobask/gtn650/Home


Changing the commands by:
RXP/GTN/DTO_1 and DTO_2
RXP/GTN/HOME_1 and HOME 2
should make the buttons interact with the RXP GTN home and direct to functions.
ex:
ATTR_manip_command    button   RXP/GTN/HOME_1

That should work.
Just don't add the lines randomly as they're bound to the TRIS references - just modify what's already there.

Happy modding!

  • Upvote 1

Share this post


Link to post
Share on other sites

Lol Bourrinopathe, I'll see what my once young and sharp brain can get out of this.

Thanks.

Share this post


Link to post
Share on other sites

Ahah yes sorry it must look like a coding nightmare.
But good news is that I got stubborn (again) and seized a few minutes to test that idea and it works!

The only thing that doesn't work is the COMM volume knob as it's probably hardcoded and dynamically controlled by the Aerobask GTN plugin - I don't know if there's a way to disable it (but we would want to keep the Aerobask GTN 650 - details below).
I still changed the cursor controls so when you try to use it in the virtual cockpit, it will display the volume level on the GTN screen.
If you want to change the COMM volume, you will have to use the Aerobask GTN popup window. You can't change it using the RXP popup window.
You can display the RXP GTN popup windows by clicking on each sides of the bezels (not the memory card only).

The hybrid solution I chose is using the COMM volume knob push action to toggle the Aerobask GTNs, so if you need them, you can access the popup windows.
That's useful for the Otto Pilot ;) : display the popup, select the autopilot page, do what you want, close it - and now when you'll need the autopilot, just push that button on the 3D model (GTN 650).
Loading a flight plan would also be possible using the Aerobask GTN popup the same way.
HOME, DTO and the outer and inner knobs + push button control the RXP GTN versions.

So everything looks fine.
PM me if you want to test the file, but I can't publicly share it as it modifies the panthera_cockpit.obj, which is the property of Aerobask and would require permission. I'll ask if they'd agree.

  • Upvote 2

Share this post


Link to post
Share on other sites

That's pretty cool!  So still not possible to get the CDI on the GTN and Skyview to sync?

Share this post


Link to post
Share on other sites
22 hours ago, Bourrinopathe said:

I don't think so, as they act as separate systems. We would need some sort of advanced Crossfill ;)

Alright, it's not a huge issue - just have to aviate and navigate - and make sure the Skyview is using GPS when the GTN is in GPS mode.

Do you have a link to that mod?

Share this post


Link to post
Share on other sites

Not yet.
I will post two configurations (GTN 750 + GTN 650 and GTN 750 only) including the modified panthera_cockpit.obj on the x-plane.org forum (Aerobask thread) and here in the appropriate thread.
Aerobask has kindly granted authorisation to share the modified file.

I'll also post a big warning sign as they're not directly supporting that mod and we should not bother them asking for anything related. ;)

Share this post


Link to post
Share on other sites

Thanks Bourrinopathe for you work, I'm going to test it.

Cheers.

Edit: I'm having a problem, the clicks on the Skyview don't work. For example, can't change altitude there or altimeter.

I also noticed that when I popup the GTN and it stays over the Skyview when I click on the GTN the clicks have effect on the Skyview also, changing the map for example. They should effect only the GTN. That doesn't happen when it's the Aerobask GTN over the Skyview. Probably that's the cause for the Skyview clicks stopping working.



Share this post


Link to post
Share on other sites

@RXP: please move those last two posts in the Panthera GTN thread to avoid cluttering that thread. Thanks

@Alvega Please report any issue in that thread instead. Thanks.

Thanks for the report. I'll check with the GTN 750 only version.
The panthera_cockpit.obj modification should not affect the SkyView.

-----

I can't notice any issue on my side. I'm uploading a video so you can see what I have and what I'm doing.
Let me know if it's different on your installation.

I also can't get the clicks registered by the SkyView if the RXP GTN popup is in front of the SkyView. The scrollwheel also only affects the RXP GTN.

I really can't reproduce your issue. I've been clicking everywhere for a few minutes.
Could you describe a few steps with a specific issue so I can try to reproduce it please? (with one or two screenshots if possible)

-----





  • Upvote 1

Share this post


Link to post
Share on other sites
21 minutes ago, Bourrinopathe said:

Thanks for the report. I'll check with the GTN 750 only version.
The panthera_cockpit.obj modification should not affect the SkyView.

I reloaded the plane and the clicks in Skyview are working now but I'm not placing the GTN over the Skyview.

Share this post


Link to post
Share on other sites

Bourrinopathe, in the video you don't have the RXP GTN in front of the Skyview. The problem here happened when I moved the RXP GTN to stay in front of the left Skyview. But it looks like after reloading the plane it stopped doing that. I can't reproduce it now. Gonna keep testing.

Thanks. :wink:



  • Upvote 1

Share this post


Link to post
Share on other sites

Good to know everything seems fine now. ;)
And yes I uploaded that video before trying with the pop-up window over the SkyView, but I did test that too, without suffering from any issue.

Enjoy your flights ;)

Share this post


Link to post
Share on other sites

Hi Bourrinopathe and thank you for sharing this video, it is superb!

One thing I was wondering though in most videos I see with our GTN: I can't help noticing how loud is the button 'click' sound.

So that you know:

With the Reality GTN, the System Page | Audio is functional and let's you adjust the 'click' sound volume.

So is the System Page | Backlight as well regarding the display backlight.

  • Upvote 1

Share this post


Link to post
Share on other sites

Thanks for the configuration details Jean-Luc. It must be loud because I didn't change the sound level in the Panthera yet. I only changed it in the C172 which I'm currently flying when I can find some time.
And being able to change the display backlight level is something I was craving for with the Kodiak from Thranda and the big G1000 screens. Flying in low light conditions with two bright spots in your face is not the most immersive experience ;)

Share this post


Link to post
Share on other sites
10 minutes ago, Bourrinopathe said:

It must be loud because I didn't change the sound level in the Panthera yet.

No this is not the Panthera sound, it is the GTN click sound, which is adjustable in-device with the Reality XP GTN simulation (try the aforementioned page to see!)

As for the brightness, you have tons of options:

1) fixed screen brightness in percent in the settings panel.

2) adjustable screen brightness connected to standard X-Plane Rheostats datarefs (click the square to the left of the percent slider to reveal the rheostat index selector)

3) adjustable screen brightness offset (+- either (1) or (2) value above) directly in-device (aforementioned page)

  • Upvote 1
