marcom

Step by Step Guide for New Customers

Recommended Posts

This post contains useful information if you are new to Remote Server!

Scroll down to see a step-by-step guide on how to get started.

We'll start off with some general information

  • How does it work?
    • 'Remote Server' (the actual executable is called SimServer.exe) is a standard Windows application and runs on your FlightSim PC. What it does is it connects to FlightSim (FSX or P3D) and communicates with the different add-ons that are compatible. At the same time, Remote Server spawns a web server and waits for a browser to connect
    • Your mobile device's browser is used to connect to Remote Server within your local network (so your mobile device's WiFi needs to be active and needs to be connected to the same network your FlightSim PC is connected to). As such, there is no 'App' needed from the Apple AppStore or Google's PlayStore. All you need is a browser which makes this solution so compatible.
    • A lot of effort has been put into the User Experience so that the CDU or EFB 'feel' right. Safari on Apple and Chrome on Android allow you to add web-sites to the home-screen and by doing so, you will see no difference between running a native app (so an app that you install from the different Stores) and a so-called web-app (like in this case). The ReadMe documentation gives you details on how to do this.
    • Note: the Remote Overhead can be used in two different ways: either as a web app similar to the CDU or as a standalone application using the Overhead Client, which is also contained in the .zip file. Please take a look at the ReadMe.pdf for further details.

  • Where do I download it from?
  • Do I need to pay for it?
    • Depends! When you download the Remote Server, you will not have licenses for any of the add-ons. This will put Remote Server into 'view only' mode, meaning that you can see the content of the CDU/EFB on your mobile device but not make any inputs. Ie if you click on a button, you will get a warning stating that no license has been found.
    • If you decide to purchase a license for a specific add-on, the 'view-only' limitation is removed for that add-on and inputs will be forwarded to FlightSim.
    • The 'view-only' mode allows you to test the connection and make sure you are good to go before deciding to buy a license. This is in part to avoid any frustration people get when buying something that doesn't immediately work (been there, seen that).

  • How do I buy a license?
    • All purchases are done through the Remote Server application running on your Windows PC. When you start SimServer.exe, you will see a small icon in your task tray (the lower right corner of your desktop, where you have the clock). Right-clicking the icon opens a menu with different options, including sending a 'License Request'. If your PC is connected to the internet, you can send a license request directly. If not, you can save a license request file (.licreq) and send it to me via e-mail. Further details can be found in the ReadMe.pdf

  • How much does a license cost?
  • How many devices can I connect at the same time?
    • There is no limitation! You can connect different devices, running different operating systems, all at once.



Step by Step Guide

  1. Download the latest version of the SimServer App from https://www.flightsimapps.com/download

  2. Extract all files from the archive to a directory of your choice

  3. Make a shortcut to SimServer.exe and place it on the desktop

  4. Run the App (i.e. execute SimServer.exe)

  5. It will either show up in the taskbar at the bottom of the screen, or in the hidden icons accessible at the right extreme of the taskbar

  6. Right-click the icon

  7. A menu page opens

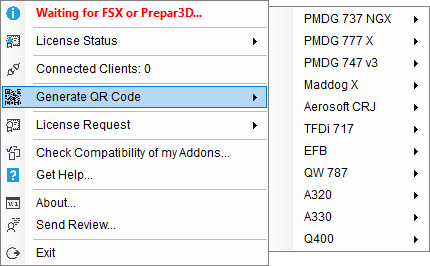

  8. Place mouse cursor on top of the line “Generate QR Code”

  9. A list of the products available through Sim Server, opens up

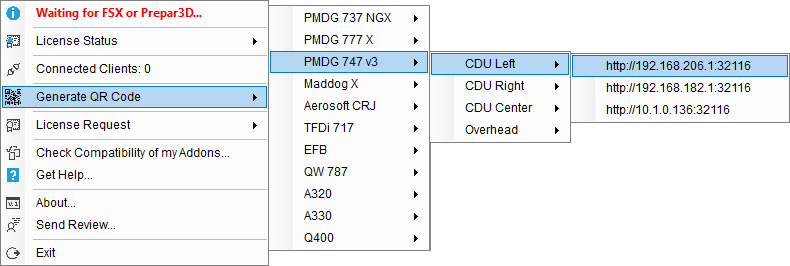

  10. Place the mouse cursor on the product you are interested in (for this example, I chose the PMDG B747 v3)

  11. The items available for this product open up


  12. Place the cursor on the item you are interested in (for this example, I chose the CDU left)

  13. A URL page opens up (in this example, it is:    http://192.168.2.53:32116

  14. Take your mobile device that you are going to use.

  15. Open a browser in the mobile device (ex Safari for IOS or Google Chrome for Android devices. Enter the URL above (type it in) in URL address line of the browser and “voila” you are done, the item (the device) that you chose, will appear on your device.

  16. You also have the option to have the mobile device read the QR Code directly using a QR scanning app, avoiding a couple of the steps above.

  17. Obviously you have to buy the license for the item/device you want to fully use.

  18. Make sure that your license(s) are copied into the same folder where SimServer.exe is located in
Edited by marcom

Mark Foti

Author of Remote CDU - https://www.flightsimapps.com

https://www.flightsimapps.com

Share this post


Link to post
Share on other sites

With your kind permission, let me add a small detail.





Your gaming computer (desktop or laptop) which is hosting the sim, and your smart device (tablet or phone) which is hosting this remote app, MUST be connected on the same wifi modem (or router).



If you connect your pc/laptop to your wifi modem, and if you connect your tablet/phone to its gsm network mobile internet, then you CANNOT use the app.


Proud AVSIM Supporter.

Donate via PayPal - Easy!

Share this post


Link to post
Share on other sites

Hey Mark, tks for the update.

All work, but; the image in my Tablet (samsung) are so little. How i can make most bigger, to fit in all screen?.

Tks in advance.


ATO VATMEX director, VATNA P1-P2 instructor (spanish), VATSIM 897455, more than 9000 hrs flight.








Share this post


Link to post
Share on other sites
15 minutes ago, ferangel2000 said:

Hey Mark, tks for the update.

All work, but; the image in my Tablet (samsung) are so little. How i can make most bigger, to fit in all screen?.

Tks in advance.

Hi,

maybe this will help:




Mark Foti

Author of Remote CDU - https://www.flightsimapps.com

https://www.flightsimapps.com

Share this post


Link to post
Share on other sites

I have the latest version downloaded.  There is no icon on my task bar or under the hidden icons either. I click the exe again, it states that it is already running.  Where is it?

Gnacino

Share this post


Link to post
Share on other sites
15 hours ago, Gnacino said:

I have the latest version downloaded.  There is no icon on my task bar or under the hidden icons either. I click the exe again, it states that it is already running.  Where is it?

Gnacino

It should be in the bottom right tray - a small CDU icon.


Mark Foti

Author of Remote CDU - https://www.flightsimapps.com

https://www.flightsimapps.com

Share this post


Link to post
Share on other sites

This is sooo confusing you need to have a great deal of computer knowledge to get this to work.  I purchased a license for the 787 and have previously tested it to take sure it works on an iPad, which it did.  Where I'm completely lost is, I have the email for the license but it only allows me to open it on Notepad, I don't see anywhere where I can "extract" the file. So I copied and pasted the file to Downloads where the simserver folder is located. Opened the client and it still said the 787 in view only, so I exited the client. Now the client is nowhere to be found. This is a complete joke!


Mark Nelson

Share this post


Link to post
Share on other sites
2 hours ago, marcom said:

It should be in the bottom right tray - a small CDU icon.

Its not.  Nowhere on my task bar nor in the hidden icons.   If I click the exe again it says its running.  Bottom line, I can't access the program.

Help, I'm very interested in the program.

Gnacino

Share this post


Link to post
Share on other sites

I got it all working and figured out. But my issue is how or can I get rid of the browser frame around the CDU or EFB on screen? I have a Samsung SM-T380 Android tablet I am using for this and chrome as the browser to view everything.



Thanks,

Jason


System: P3D v4.5, Ryzen 7 2700X locked @ 4.2Ghz, Cooler Master ML240L AIO, Cooler Master MB511 RGB Case, Nvidia RTX 2080, 500Mb Samsung 970 EVO M.2 SSD, 1Tb Samsung 860 EVO SSD, MSI B450 Tomahawk MoBo, 16Gb Corsair Vengeance DDR4 3200Mhz RAMCorsair RM850X PSUWin 10 Pro 64-bit, Samsung 32" 4K MonitorT-Flight Hotas 4.

Share this post


Link to post
Share on other sites
13 hours ago, Fresjay76 said:

I got it all working and figured out. But my issue is how or can I get rid of the browser frame around the CDU or EFB on screen? I have a Samsung SM-T380 Android tablet I am using for this and chrome as the browser to view everything.



Thanks,

Jason

Hi Jason,

please check the documentation. You can simply add the page to the homescreen, making it full screen.

Regards

Mark


Mark Foti

Author of Remote CDU - https://www.flightsimapps.com

https://www.flightsimapps.com

Share this post


Link to post
Share on other sites
12 hours ago, marcom said:

Hi Jason,

please check the documentation. You can simply add the page to the homescreen, making it full screen.

Regards

Mark

You are correct and found this out late last night. I should have come back and deleted the question. Used the Remote MFD and EFB all day today. Love this feature. Thank you for responding to my post.

Jason


System: P3D v4.5, Ryzen 7 2700X locked @ 4.2Ghz, Cooler Master ML240L AIO, Cooler Master MB511 RGB Case, Nvidia RTX 2080, 500Mb Samsung 970 EVO M.2 SSD, 1Tb Samsung 860 EVO SSD, MSI B450 Tomahawk MoBo, 16Gb Corsair Vengeance DDR4 3200Mhz RAMCorsair RM850X PSUWin 10 Pro 64-bit, Samsung 32" 4K MonitorT-Flight Hotas 4.

Share this post


Link to post
Share on other sites

If your program is not opening but says it's running, open Task manager, you will see the icon, expanded it and left click on the icon.

Tom Johnson

Share this post


Link to post
Share on other sites
12 hours ago, 0310 said:

If your program is not opening but says it's running, open Task manager, you will see the icon, expanded it and left click on the icon.

Tom Johnson

Doesn’t work for me....

Its running in task manager but can’t access it, left click does nothing...win 10.




Luke Pype

Share this post


Link to post
Share on other sites
26 minutes ago, MaDDogz said:

Doesn’t work for me....

Its running in task manager but can’t access it, left click does nothing...win 10.



Yes, you need to right click the icon - NOT left.


Mark Foti

Author of Remote CDU - https://www.flightsimapps.com

https://www.flightsimapps.com

Share this post


Link to post
Share on other sites
