twister1853

steps to repair fsx gold edition

Recommended Posts

Hello Jim,

Please could you permit me to return to this old post and, as I am no expert with going inside FSX, could you help me with a little more direction.

I have run FSX (Gold Edition with FSX Deluxe, SP1, SP2  and Acceleration) satisfactorily for years, with and without photo' scenery addons.  I also have addon aircraft and addon airports.  I recently tried the ORBX scenery addons and, whether or not this caused my current problems, I now have the default FSX scenery corrupted, even with ORBX completely un-installed.  The ORBX forum have been very helpful but I have now arrived at the stage where I have been advised to do a 'repair' of my FSX.

I have read your above step by step guide for repairing FSX.   I now ask, does a repair leave all my addons (photo' scenery, aircraft and airports) intact in FSX, or do I have do a comnplete re-install of these addons ?

By the way, I have 'cloned' drive D containing FSX to drive F so as to have a copy of everything on drive D.  I'm assuming this does not cause any problem when running FSX.  Is this correct ?

Thank you.

Ray







Share this post


Link to post
Share on other sites
Help AVSIM continue to serve you!
Please donate today!

I have split this into your own topic.  Doing the repair has no affect on your addons.  It will correct any default files and should restore your FSX.cfg to default.  Make a backup of that before you start.

Share this post


Link to post
Share on other sites
1 hour ago, twister1853 said:

I now have the default FSX scenery corrupted, even with ORBX completely un-installed.

Unfortunately, Orbx does not do a very good job of uninstalling.  They leave elevation files in the Scenery/World/Scenery and that makes your scenery look corrupted as Orbx continues to mess with the elevations.  As I recall you have to manually remove all of the Orbx files in Scenery/World/Scenery.  Look in that folder before you try any repair.

Charlie is correct with his response above but doubt it will remove any Orbx files leftover in Scenery/World/Scenery.

Share this post


Link to post
Share on other sites

If using FTX Central, it has a option when it flags up all its airports/sceneries  that you have installed, to Uninstall them via FTX Central, if that is any help, as I have done it a few times.

Share this post


Link to post
Share on other sites

Charlie,  Rick,  Jim  -  thanks a lot for the very prompt reply.

Charlie,  my photo' sceneries/aircraft/airports addons: are they indeed unaffected by a repair ?  I recently had the whole of drive C 'cloned' on to a drive F.  So, can I use this to extract a backup of fsx.CFG if required and why would I need such a backup ?

Jim,  I did not have the ORBX/FTX Global installed. So does this mean I should not have any Scenery/World/Scenery ?

Rick,  I also used FTX Central to un-install the UK ORBX Sceneries.

I'm nervous.  But here goes.  Wish me luck !!

Ray

Share this post


Link to post
Share on other sites

A repair only affects corrupted default files.  After a Repair, your FSX.cfg will be back to were it was at installation.  No tweaks will be saved.

Good luck on the Repair!

Share this post


Link to post
Share on other sites

Forgot to ask,  inserting disk 1, then disk 2 and finally disk 3 does this re-install SP1, SP2 and Acceleration ?

Ray

Share this post


Link to post
Share on other sites
19 minutes ago, twister1853 said:

Forgot to ask,  inserting disk 1, then disk 2 and finally disk 3 does this re-install SP1, SP2 and Acceleration ?

Ray

SP1 and 2 are integrated into Acceleration.  I really wonder if Acceleration needs repairing!

Share this post


Link to post
Share on other sites
1 hour ago, twister1853 said:

Jim,  I did not have the ORBX/FTX Global installed. So does this mean I should not have any Scenery/World/Scenery ?

I do not know what FTX Global is as I have never installed it before.  I was talking about areas such as Pacific Northwest, Northern and Southern California, Friday Harbor, Palm Springs, San Diego, Orcas Island, areas like that. If you do not see any files related to Orbx/FTX in the World/Scenery area then they were uninstalled.  For me I had to manually remove.

Share this post


Link to post
Share on other sites
19 hours ago, Jim Young said:

I do not know what FTX Global is as I have never installed it before.  I was talking about areas such as Pacific Northwest, Northern and Southern California, Friday Harbor, Palm Springs, San Diego, Orcas Island, areas like that....

FTX Global is similar to Ground Environment X by Flight 1. Essentially, FTX Global replaces the default set of land textures. As these then become the foundation & new 'default' textures for areas without any additional scenery addons, any more additional specific addon regions, such as PNW, Northern Callifornia, airports, etc. that are subsequently installed will take precedence and their respective region or airport textures will display instead of the FTX Global base textures which replaced the default set.

Share this post


Link to post
Share on other sites
24 minutes ago, RustyFlyer said:

FTX Global is similar to Ground Environment X by Flight 1. Essentially, FTX Global replaces the default set of land textures. As these then become the foundation & new 'default' textures for areas without any additional scenery addons, any more additional specific addon regions, such as PNW, Northern Callifornia, airports, etc. that are subsequently installed will take precedence and their respective region or airport textures will display instead of the FTX Global base textures which replaced the default set.

Okay but they do not enter any files into Scenery/World/Scenery if they are replacing the default textures.  If you have any Orbx area files like the Pacific Northwest then you need to check Scenery/World/Scenery as they put their elevation files there.  Everything in Scenery/World/Scenery loads even if you do not want it to.

Best regards,

Jim

  • Like 1

Share this post


Link to post
Share on other sites

Jim, thanks again for that.

I have in the past run Orbx Central Rockies, Northern Rockies and Pacific Fiords in FSX.  So I have checked as you have advised, FSX Scenery/World/Scenery looking for files with initials CRM, NRM and PFJ (Nick Cooper advised to look for these initials) and there lots of files but none with these initials.  So I hope this means there is no Orbx material there.

Ray



Share this post


Link to post
Share on other sites

Sounds like you have it cleared of Orbx/FTX.  I just brought it to your attention as you indicated you had Orbx Scenery installed and you uninstalled it and things were still corrupted.  You state there are a lot of files but none with those initials.  For a default install, it should look something like the following.  As you can see there are not many in there.


As I recall the files show the word elevation in the file names.  Note that default files are dated 2006 and any add-on files would be dated later.

Share this post


Link to post
Share on other sites

Hello Jim,

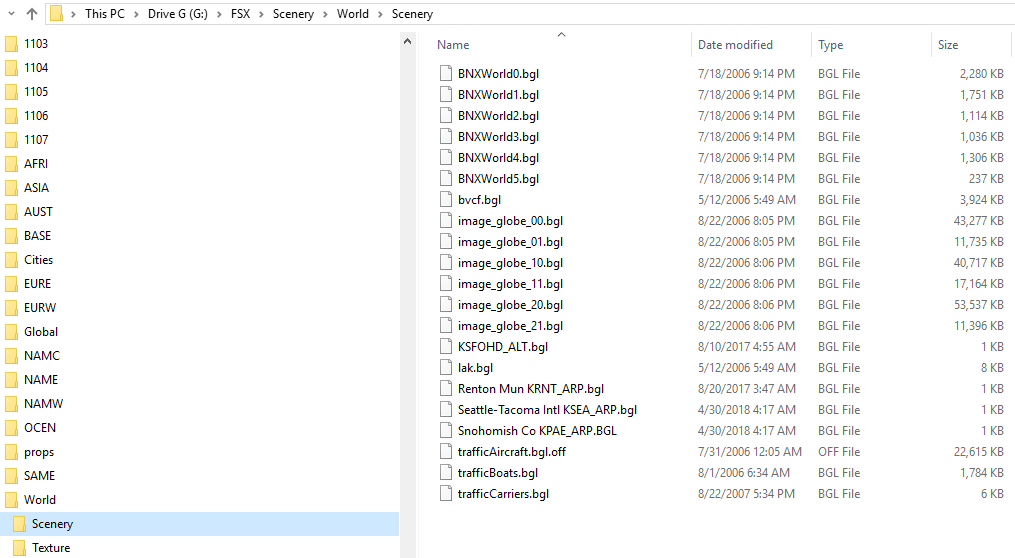

My Scenery/World/Scenery folder shows most of the files you've given here.

If these are default files, then should I leave them alone and not delete any of them before the FSX Repair ?

Thanks.

Ray

Share this post


Link to post
Share on other sites

Yes, leave them as they are default.

On 1/18/2019 at 8:27 AM, twister1853 said:

I have run FSX (Gold Edition with FSX Deluxe, SP1, SP2  and Acceleration) satisfactorily for years, with and without photo' scenery addons.

Just want to make sure you understand the Gold Edition includes FSX Deluxe, SP1, and Acceleration.  No SP2 as SP2 is the freeware version of Acceleration.  If you install SP2 with Acceleration you will have lots and lots of problems.

When you do a repair, like Charlie stated, you will replace the default files.  The dll.xml (located in the same folder as fsx.cfg), is NOT a default file so it will load with the new installation and, the dll.xml is known to be the cause of a lot of crashes and problems with FSX.  So, you might want to rename the dll.xml to dll.off and exe.off before restarting your sim after you have done the repair.  Whenever I have issues with FSX, I simply rename the fsx.cfg to fsx.off, dll.xml to dll.off, and scenery.cfg to scenery.off and restart the sim.  This usually fixes the issue as the problem is normally caused by one of these files.

Share this post


Link to post
Share on other sites

Jim, thank you for that.

A couple of points before starting the repair:

1.  Do I just run Disc 1 and Disc 2 during repair, and not run Disc 3 (acceleration expansion pack).

2.  Do I need SP2 ?

3.  What do you mean by "exe.off" ?

1 hour ago, Jim Young said:

dll.xml to dll.off and exe.off before restarting your sim after you have done the repair.  Whenever I have

I have "cloned" drive D (containing FSX) to drive F.  So I have a backup of FSX.

Ray

Share this post


Link to post
Share on other sites

Just in case it's Jim's nap time:rolleyes:

1.  I don't think Acceleration is the problem, in fact, I would recommend uninstalling Acceleration before starting the repair.  Reinstall after running disc 1 and 2.

2.  Acceleration contains the equivalent of SP1 and SP2.

3.  Renaming something like dll.xml to dll.xml_off will keep the file safe for further use as is.  Just change the name back to dll.xml.  Same goes for the .exe file.

  • Like 1

Share this post


Link to post
Share on other sites

Running a repair will default FSX to factory state. It does not know weather or not you have addons or not, Or what to save or not, make back-ups of your addons and reinstall them once the sim is working normally Again.

Berlopez

Share this post


Link to post
Share on other sites

Hello Charlie,

Many thanks for your interest and help.  A couple of points:

1.  How do I un-install "acceleration" ?

2.  Did Jim mean exe.xml when he said exe.off ?

3.  When I do a FSX Repair, will all my addons and photo' sceneries still be there in the repaired FSX ? This is important to me.

Regards.

Ray

Share this post


Link to post
Share on other sites

I would hope uninstalling Acceleration is as easy as going to Control Panel/Add/Remove Programs and scrolling down the items until you come to FSX Acceleration and click on "Remove".  I don't have Acceleration but that's where I uninstall my SP2 then SP1 before I try to Repair my version of FSX.

I think that's what Jim meant about the exe.off!

I have never lost any addon scenery or aircraft from doing a Repair.  They stay put.

Share this post


Link to post
Share on other sites

Yes, just click on Microsoft Flight Simulation X:  Acceleration.

Yes, I meant the exe.xml should be changed to exe.off to disable it.  It may not be in the directory as many developers no longer use it.

Share this post


Link to post
Share on other sites

In my set up in Control Panel I have Microsoft Flight Simulation: Acceleration. I do not have an acceleration entry by its self Maybe my set up is wrong. I have a running copy of FSX\Acc. In a external HD, Just in case. Maybe that's why I don't have both installations FSX and Acceleration in my Control Panel, I am not sure. I can only say my sim works fine.



berlopez

Edited by Berlopez
More info.

Share this post


Link to post
Share on other sites

Hello,

what you see is correct.


Edited by nolonger

Share this post


Link to post
Share on other sites
1 hour ago, Berlopez said:

In my set up in Control Panel I have Microsoft Flight Simulation: Acceleration. I do not have an acceleration entry by its self Maybe my set up is wrong. I have a running copy of FSX\Acc. In a external HD, Just in case. Maybe that's why I don't have both installations FSX and Acceleration in my Control Panel, I am not sure. I can only say my sim works fine.



berlopez

When you uninstall "Acceleration", the entry in the Add/Remove program will change to Microsoft Flight Simulator X.

In my case I have two separate entries using a commercial addon called IObit Uninstaller which does a lot more than the Add/Remove Program.

Share this post


Link to post
Share on other sites

Thanks for all the replies.

In my Windows 8.1, Microsoft Flight Simulator X : acceleration is found at Control Panel>all Control Panel Items>Programs and Features, from where acceleration can be un-installed.

Ray

Share this post


Link to post
Share on other sites
