Julean

Nozzles on a 737

Recommended Posts

Posted (edited)

Hi

Anyone have a suggest to Simon what these are?










All the best

Julean

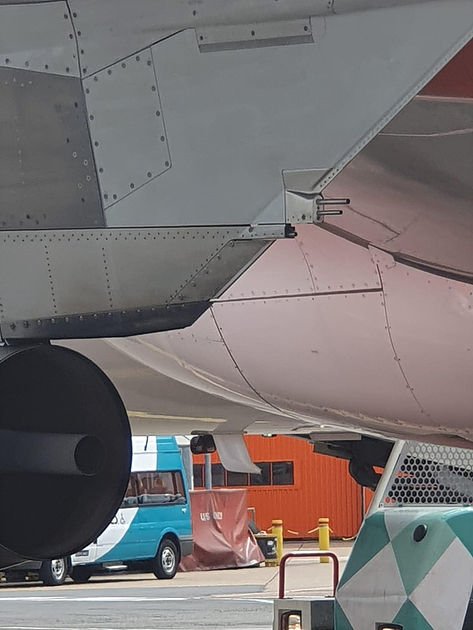

pylon drains.jpeg

Edited by charliearon
embed the screenshot

Share this post


Link to post
Help AVSIM continue to serve you!
Please donate today!

I think the are called Pylon Drains For the small quantity of fuel that may leak from the lines inside the engine pylons.

  • Like 1

Share this post


Link to post
2 hours ago, charliearon said:

I think the are called Pylon Drains For the small quantity of fuel that may leak from the lines inside the engine pylons.

I would agree. They may drain condensation also.

Share this post


Link to post

Thank you very much...

💓

Julean

Share this post


Link to post

Well that certainly doesn’t look like a B737. It does look like an A320F and yes those are pylon drains.

Share this post


Link to post
Posted (edited)

As others have noted, they are the pylon drains. That isn't a Boeing 737 incidentally, it looks to me like either an A320 or A321.

There are a number of fluids which could be trapped inside the pylon were it not for these pylon drains. Most likely the fluids would be bit of fuel, hydraulic fluid, or water. You want these to drain out so there is no risk of fire or possibly corrosion. There are three pipe outlets rather than just one, because they are routed to different parts of the pylon structure, passing through bulkhead sections inside the pylon to ensure that all areas inside the structure of the pylon (seven in total on an A320's pylon) are drained as best as can be. One of the fun things about these outlet pipes in particular, is that you sometimes get conspiracy theory nut jobs claiming that these are the 'spray nozzles' for 'chemtrails'.

Incidentally in case you are curious, in your picture there is another drain outlet (there are quite a few dotted around the fuselage in various locations). Aligned in front of the orange portacabin in the distance, there is a rearward facing streamlined outlet pipe on the underside of the fuselage. This is sometimes mistaken for being an avionics antenna, but it is the outlet for water removed from the air circulated in the air conditioning system. You have to watch out for that sometimes when working under an Airbus, as it can pour out and it occasionally can be fairly hot.

Edited by Chock
  • Like 1
  • Upvote 1

Share this post


Link to post

I learned something new, thanks Charlie & Alan, so best not to look up the nozzle's when working a recently landed plane, or wear goggles and a raincoat. A320 relaxing after a long flight.

Aaaaaah relief,. sweet relief.



  • Like 1

Share this post


Link to post
8 hours ago, Jethro said:

Aaaaaah relief,. sweet relief.

Many years ago (1929) there was a slogan for Coca-Cola that described the drink as the "pause that refreshes."

No I say! It is not the "pause" at all; it is merely the "cause of the pause!" :laugh:
