Rob Ainscough

7900X P3D V4.3 vs 9900K P3D V4.4 +60-95% FPS increase

Recommended Posts

Unfortunately not exactly an Apples to Apples compare.  I did do some basic informal testing with 9900K and P3D V4.3 and wasn't really impressed with it's performance.  But, an OS wipe and fresh install Win10 1803 and P3D V4.4 along with new nVidia drivers v417.01 and the experience seems to be considerably improved ... TSE is TEXTURE_SIZE_EXP which is the 9 (512) and 10 (1024) terrain tile resolution:




Graphics settings files (Medium, High, Very High) - TSE needs to be added manually: https://drive.google.com/open?id=1Fh4hwHmETc_vl0weMU7lNxugFsIKxPhs

Recorded flight files and location/weather:   https://drive.google.com/open?id=1cTRBQUVYynEi7uqmDIt7FoSWzgMVB1XJ

MSI Afterburner (v4.6.0 Beta 9 + Riva Server v7.2.0 Beta 5) converted CSV to XLS log files: https://drive.google.com/open?id=1QPMy_uNbA_4_dnjKvsRCjrJsy4vrtcHu

MSI Afterburner native CSV/HML log files: https://drive.google.com/open?id=1IcSdPI0deHlVOs2d2RCW-E5N-Z2Ez4st

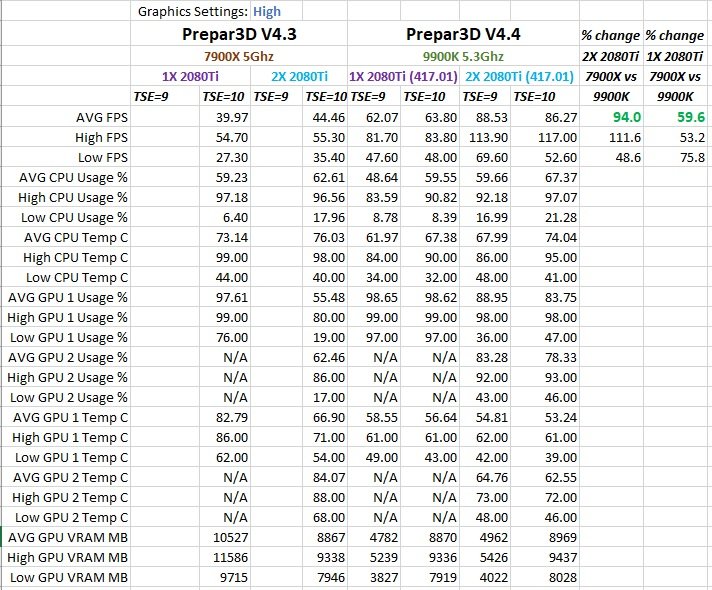

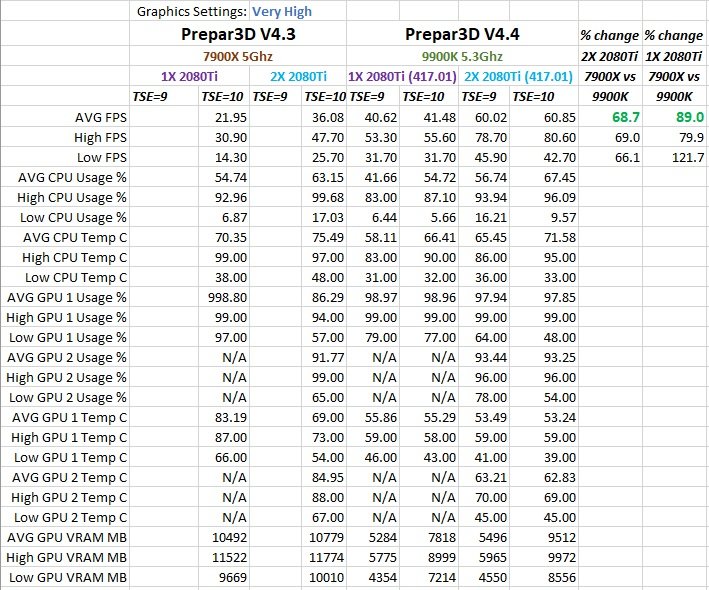

Summary Excel spreadsheet (above data) here: https://drive.google.com/open?id=144XBkYwMt_7TQF4XvaT47xm3BKI3Mih6

Add-Ons active:

  • Orbx ESNQ (with Dynamic Lighting)
  • Orbx FTX Global
  • Orbx Norway
  • Orbx OpenLC EU
  • Orbx HD Trees

Note: three add-ons used in the original 7900X P3D V4.3 were not installed, these are:

  • PILOT's FS Global Ultimate 2018 Mesh
  • TOGA Projects ENVTEX and ENVSHADE (set to Quality mode)
  • FSFX Packages (OldProp)

I doubt these products would be responsible for significant FPS reduction, at least I hope not.  FSFX packages will have zero impact as no effects were active in the test flight.  ENVSHADE might have a very slight impact but most of the options I used in the original test were ALL low performance settings.  PILOT's Mesh, maybe a little but I can't see it having much impact in the location I used Orbx ESNQ.

Related Threads:

and

Make  your own conclusions and be aware this is VERY specific testing, all hardware, OS, UEFI, drivers, MB's, etc. etc. are almost like unique fingerprints, no two users will be identical.  If you see any errors in my data please let me know, the purpose of presenting data is for others to go over it and report flaws, errors, etc.  What I've come away with in this testing round is:

  • TEXTURE_SIZE_EXP 9 (512) or 10 (1024) doesn't seem to have any significant impact to FPS provided you have the GPU VRAM available.
  • Cache frequency on my 9900K does seem to help with performance, in fact lower CPU frequency in order to increase cache frequency ... once again a balancing act, but Cache frequency at 4.6Ghz and CPU at 5.3Ghz with HT OFF provided the best P3D results.
  • A fresh Win10 1803 OS and P3D wipe and install appears to work well along with fresh set of nVidia drivers and re-install of Add-Ons.

Cheers, Rob.



  • Like 3

Share this post


Link to post
Help AVSIM continue to serve you!
Please donate today!

<insert awesome colorful adjective> OMG !!! this is awesome 😉😎😊🍻

Edited by Skywolf

Share this post


Link to post

Dude!?!

This means absolutely nothing to the 96% of us in the audience.  You have an 8700K .....test it!

Put me in coach, I'm ready to play; said the lil processor.

Share this post


Link to post

Thanks for the tests.

But like you have already stated : not exactly comparing apples to apples 🤗

Edited by GSalden

Share this post


Link to post

I just posted in another thread not less than an hour ago that I was wondering how important the higher bandwith of the HEDT motherboards was to P3D vs. the Z370/Z390 systems. You seemed to have answered it. Not at all. Thanks for doing this test and sharing the data. I really like the jump in the minimum FPS numbers.

Just to show that I really looked at the data, I believe you have a decimal off in the Avg GPU usages for the 7900X with single 2080ti at very high settings. :biggrin:

As Ken mentioned, being that I just purchased an 8086, I would be interested in hearing your thoughts on the 9900k vs. your 8700K. At your leisure of course.....

Thanks again,

Ted

Share this post


Link to post

Love your spreadsheets/tests Rob.

They are very useful data for those that take the time to analyze them.

I'll take some time to look over the spreadsheets.

Right off the bat, I would say this is a case for getting a new 9900k

Tks a million,

Cheers,

Pierre

Share this post


Link to post

Sorry the 8700K is already dedicated as Network PC that has HiFi AS4 on it, LittleNavMap, and also doubles as 4K capture devices for 4K output from my 9900K.  My 7900X is now my Video Editing workstation, music creation workstation, and P3D V5 test mule 😉

I'll admit, the Results were surprising, probably why I ran so many tests ... and yes I see a few typos I made.  I was pretty sure TSE=10/9 would perform about the same, other than extra VRAM usage.  Onward to loading some "heavies" and see how performance goes.

I am curious about existing products from REX, ENVTEX, ASCA and others that replace textures ... are they working on PBR replacements or just making sure what they have doesn't break in V4.4?  I know water textures were changed (to work with lights and reflections ... I believe that's in the Content installer) along with the overall water performance improvements ... but very curious to see if 3rd party content providers tackle making these PBR?

Cheers, Rob.

Share this post


Link to post
36 minutes ago, Rob Ainscough said:

 My 7900X is now my Video Editing workstation, music creation workstation, and P3D V5 test mule 😉



Cheers, Rob.




Thanks for post these test results! P3Dv5 test mule!!! That will be the one I'll pick up (v5). 😉

Edited by TuFun

Share this post


Link to post

I don't understand why it is worth doing all that wonderful work for the community when the results only apply to a tiny number of possible simmers that can afford extreme hardware like that. There is nothing I can take away from these tests as information for a mid-range hardware setup.

Share this post


Link to post
7 minutes ago, glider1 said:

There is nothing I can take away from these tests as information for a mid-range hardware setup

I did this testing on request from several other users here and elsewhere.  There is actually a lot of information there that can can extrapolated beyond the specific hardware listed.

Cheers, Rob

  • Like 1

Share this post


Link to post

Rob,

Thanks for all the effort here. I’m about to move from a 4770K @ 3.5 to a 9900K @ 5 (both with the single 1080Ti) so not identical but as you say, it will provide me with a wealth of data for comparison - hopefully it will allow me to spot any oddities for further investigation.

And I’m doing it all on a clean install though for others out there, don’t make the mistake I did and just wipe the drives and start afresh. I completed the setup and installed 4.4 on Friday evening only to have the activation bounce as I had failed to deactivate P3D first. And then the weekend began ..... have just had the email from LM resetting my activation so can, on Monday evening, give it a go at last 😳 Talk about self inflicted pain ..... (BZ to LM by the way - it must still have been Sunday evening where they are when they reset me - nice one chaps 😉)

Cheers,

R



Share this post


Link to post

Wondering if there will be any improvements when the i9-9900KF CPU without the iGPU are released? Maybe cheaper? Also looks like an RTX Titan in the works.

i9-9900KF





Edited by TuFun

Share this post


Link to post
6 hours ago, Rob Ainscough said:

 I know water textures were changed (to work with lights and reflections ... I believe that's in the Content installer) along with the overall water performance improvements ... but very curious to see if 3rd party content providers tackle making these PBR?

Cheers, Rob.

With this comment you make me replace Content too.

Question for everyone :

If I uninstall Content will it delete folders or will they remain with the 3rd party files only ? So with a new 4.4 Content install they will still exist and I do mot need to reinstall addons.

F.Y.I I have finished installing all addons a week ago after a 4.3 reinstall recently....

Share this post


Link to post

Gerard, in my case because I checked, the folders and third party contents remained. I thought if it failed and a full install was needed I am on vacation next week and have time to start from scratch. Was not necessary.

Cheers,

Msrk

Share this post


Link to post

Rob thanks, if you remember i did a  fast test with your High settings 7920X @5.1ghz  2X 1080TI SLI,(test not as deep as yours.)

run the same with P3D V4.4 difference clean W10 1809 and driver 398.36 had problems with SLI single card OK , tested 5 diff drivers the 398.36 worked fine with SLI, P3DV4.4 clean full install

compared to my 4.3 test,  low +87% high +75% avg +85% we can say i it is close to the differences you get, it clear that P3DV4.4 is a win win

Edited by westman

Share this post


Link to post
23 minutes ago, GSalden said:

With this comment you make me replace Content too.

Question for everyone :

If I uninstall Content will it delete folders or will they remain with the 3rd party files only ? So with a new 4.4 Content install they will still exist and I do mot need to reinstall addons.

F.Y.I I have finished installing all addons a week ago after a 4.3 reinstall recently....

I was actually surpriced not having to reinstall anything with ,client,content and scenery one at a time.

I even have scenerys in the internal /add-ons folder (alot from Dreweicki) , simmarket folder and ORBX.

Even the Effects folder was fully intact

I did reinstall FTX global and HD Treees as per the official guide



Michael Moe

Edited by Michael Moe

Share this post


Link to post

Hi Guys,

I have been on win7 for the last few years and just now, with the new rig, updating to win10.

I am getting a second 1080ti to make an SLI and would like to know if you recommend that I update to the latest build of win10 and latest drivers or if you think that there is a combination that is proven to work well? I heard people were having issues on one of the win10 builds.

@Rob Ainscough @westman

Share this post


Link to post
5 hours ago, glider1 said:

I don't understand why it is worth doing all that wonderful work for the community when the results only apply to a tiny number of possible simmers that can afford extreme hardware like that. There is nothing I can take away from these tests as information for a mid-range hardware setup.

Then don't take anything away from it. Rob has done fantastic work for the community in a whole range of areas and I for one am grateful he continues to provide such comparisons, regardless of their relevance to whomever...

Share this post


Link to post
11 minutes ago, radial360 said:

Hi Guys,

I have been on win7 for the last few years and just now, with the new rig, updating to win10.

I am getting a second 1080ti to make an SLI and would like to know if you recommend that I update to the latest build of win10 and latest drivers or if you think that there is a combination that is proven to work well? I heard people were having issues on one of the win10 builds.

@Rob Ainscough @westman

Had problem with 1809 and SLI struggle a lot before a get it to run as supposed , 1803 no problem at all, subjective think the 1809 is little faster in the sim but its my personal feeling no proof at all.

I should go for Win 10 1803 if you not experianced with setup SLI and test drivers,

Share this post


Link to post
7 hours ago, Rob Ainscough said:

...  I know water textures were changed (to work with lights and reflections ... I believe that's in the Content installer) along with the overall water performance improvements ...





1 hour ago, GSalden said:

With this comment you make me replace Content too.

Question for everyone :

If I uninstall Content will it delete folders or will they remain with the 3rd party files only ? So with a new 4.4 Content install they will still exist and I do mot need to reinstall addons.

F.Y.I I have finished installing all addons a week ago after a 4.3 reinstall recently....



According to the changelog all the water improvements are included in the Client:



Quote



Prepar3D Client

General Platform Updates

...

Fixes and Improvements

- Made optimizations to water rendering by removing unneeded emissive samples on water-only tiles.

...

- Fixed inconsistent specular and emissive values between land, water, and land+water shader variations.

...

- Improved water appearance in cube maps used for reflections.





So I wonder if it really would be necessary to install Content for any water improvements.



Edited by RALF9636

Share this post


Link to post

I pretty much agree with those figures.

I fly mainly VR and get 35-40 fps on medium-high on busy airports as aerosoft´s LEPA with 100% traffic.

I had a stutter feast in VR until I used the oculus tray tool, set the SS at 2.0 and disabled de ASW. From there not a single stutter which is amazing coming from an i7 4770k and a 980ti.

cheers

Carlos



Share this post


Link to post
5 hours ago, chass32 said:

I pretty much agree with those figures.

I fly mainly VR and get 35-40 fps on medium-high on busy airports as aerosoft´s LEPA with 100% traffic.

I had a stutter feast in VR until I used the oculus tray tool, set the SS at 2.0 and disabled de ASW. From there not a single stutter which is amazing coming from an i7 4770k and a 980ti.

cheers

Carlos



I also find the tray tool useful but don’t see much difference above 1.6 or 1.7 you may want to try a bit lower and save the processing power for a gain that might not be noticeable. BTW your signature indicates a much more powerful system then your post, also you might want to OC that CPU if your signature is your current system.

Joe

  • Upvote 1

Share this post


Link to post
7 hours ago, westman said:

Rob thanks, if you remember i did a  fast test with your High settings 7920X @5.1ghz  2X 1080TI SLI,(test not as deep as yours.)

run the same with P3D V4.4 difference clean W10 1809 and driver 398.36 had problems with SLI single card OK , tested 5 diff drivers the 398.36 worked fine with SLI, P3DV4.4 clean full install

compared to my 4.3 test,  low +87% high +75% avg +85% we can say i it is close to the differences you get, it clear that P3DV4.4 is a win win

At rw 25 at Schiphol Amsterdam with no clouds I am getting the same fps as before with V4.3....

Only updated the client.. Reinstalled W10 + P3Dv4.3 recently so still a very clean system.

Did not make a flight yet because of other busy things...

Edited by GSalden

Share this post


Link to post
3 hours ago, joepoway said:

I also find the tray tool useful but don’t see much difference above 1.6 or 1.7 you may want to try a bit lower and save the processing power for a gain that might not be noticeable. BTW your signature indicates a much more powerful system then your post, also you might want to OC that CPU if your signature is your current system.

Joe

Yep, I built it with OC in mind and I´ll do it in the next few days, I have no experience with OC so I need a bit of reading before that. Do you think that I could do better than 35-40fps in VR in a pretty big airport, 100% traffic, active sky and medium-high settings besides OC? Because in 4K I was having slightly worst fps than Rob but I assumed that no OC was the reason.

Thanks for the advice, Joe!

Carlos







Edited by chass32

Share this post


Link to post
22 minutes ago, chass32 said:

100% traffic

This will be a source of low FPS at big airports (AI traffic has a big impact on the CPU) ... as much as 50% drop in FPS, especially if you have SimObject shadows enabled and use higher quality shadows.

Cheers, Rob.

  • Upvote 1

Share this post


Link to post
