We are pleased to publish the 0.4.0 version, there's all sorts of goodies in this one that I think you will enjoy.

Discord link: https://discord.gg/xRXSSaH.  This will be used to publish any announcements, latest version checks, feature previews/sneak peeks, discussions, but we are going to keep the internal development channels private as they could easily get out of hand.

Demo Video: https://www.youtube.com/watch?v=MJDJRzbuFW4

Mod Download Link: https://github.com/Working-Title-MSFS-Mods/fspackages/releases/tag/cj4-v0.4.0
Scroll down to the bottom where it says assets, download the workingtitle-cj4-v0.4.0.zip

Installation

Installation is easy, simply copy the workingtitle-aircraft-cj4 folder inside the zip file to your MSFS Community folder.

Important: We recommend that you fully delete the previous workingtitle-aircraft-cj4 folder before copying this release.

Key Features

• New custom engine fuel consumption model code based on FJ44 curves and pilot input
• Overhauled LEGS page for more flexibility and real unit functions (WIP)
• Many FPLN page bug fixes
• A few quality of life and critical bug fixes
• Overhaul of DEP/ARR pages and working STAR approaches (thanks @tscharlii)
• Added functional options in the UPR MENU

Engine Model

• Engine fuel consumption model has been custom coded and replaces the sim fuel consumption. Fuel consumption, especially at cruise, should be much, much closer to published. Expect 1800-1850pph per side at ISA full power at sea level and 500-800pph per side at cruise, depending on altitude, mach, and power settings.
• Thrust now scales exponentially with N1 instead of linearly. Power settings should feel much more accurate.

Flight Model

• Added gear drag (Was non-existent before)
• Greatly reduced spoiler drag & pitch down moment (You shouldn't be losing airspeed in a 30 degree nose down dive with the speedbrakes out)
• Reduced flap drag

LEGS Page

• Added ability to insert a new fix
• Added ability to remove whole segments by pressing LSK of one fix and then LSK of another
• Added ability to to direct-to a leg by pressing LSK of the fix and then dropping onto the magenta line
• Added ability to delete individual fixes
• Magenta fix distance updates distance to go as aircraft moves
• Fixed issue where unable to delete with a departure active
• Made the WORKING prompt more consistent
• Added feature to show runway where possible
• Disabled the ability to adjust approach fixes due to simulator limitations
• Each waypoint now shows the distance to the next fix instead of the cumulative flight plan distance.
• Blue waypoint is the FROM waypoint
• Magenta waypoint is the current TO waypoint
• Only fixes with an altitude or speed restriction will populate on the right side in green. (It does not show cruise altitude anymore)

FPLN Page

• Fixed issue where adding via airway would not add all fixes along airway to flight plan
• Fixed issue where a blank line was not always provided to add a fix
• Condensed display to only show airway entry and exit as per the real unit
• Fixed issue where VIA was not displayed on page 2+
• Fixed issue where attempting to delete the first fix on page 1 would insert CLRIC
• Fixed issue where unable to delete with a departure active

DEP/ARR Pages

• Proper formatting and flow of DEP/ARR pages (thanks @tscharlii)
• Fixed scrolling through procedures and runways (thanks @tscharlii)
• STAR approaches should now work properly (thanks @tscharlii)

FUEL MGMT Page

• Total fuel used now initialized to its starting point when the FMC loads

TUNE Page

• Page now updates and syncs back radio changes made from other instruments or the simulator

PFD/MFD

• Fixed issue where ILS localizers reporting DME distance as strings would crash the displays
• Show animated radar bug
• MFD Checklists have been added
• Pax Brief Menu has been added (Unfortunately, no sounds for it yet, next release)
• Added FMS Text option (this essentially displays the PROG page on the MFD)
• Added functional PASS BRIEF, CHECKLIST, and SYS buttons on the CCP (Cursor Control Panel)

Audio

• Improved BELT button audio (Currently the chime is non-functional for this. Fix soon)
• Added SAFETY button chime and announcement and also chime when you turn the SAFETY and BELT buttons off.
• Increased volume of pilot and co-pilot fan air sounds

Known Issues

• Modifications of the flight plan can be slow at times. The cause for this is Asobo's FacilityLoader which they need to fix. When the FMC shows "Working..." it indicates an operation is in progress.
• Sometimes when entering an airway and the exit fix, the airway name will change to the shared airway, however the routing is still correct.
• You cannot currently select Direct-To of a fix on your approach that is not the initial approach fix. This is a limitation of the sim flightplan system at present. We are currently overhauling the flight plan management system to allow for much more flexibility and stability.
• After using Direct-To, the navigation will not always automatically sequence to the next fix and may enter ROL mode. You can re-activate NAV to navigate to the next fix if you encounter this issue.
• The aircraft is still using the built-in MSFS autopilot (for now). All the existing limitations of that still apply. It does behave a bit better with the various enhancements applied.
• Performance pages don't currently have input error handling for wind, temp or QNH. These values must be entered correctly and completly in the proper format for the page to work. Note that valid wind directions are 001 through 360 as of now.
• FLC stability appears to have regressed with the autopilot aircraft energy calculation changes in 1.9.3. We have attempted tuning the autopilot PIDs but as of right now the behavior of the underlying sim FLC PID itself seems to be at issue. We will continue to investigate.



Edited October 9, 20205 yr by FNAL

Great stuff.....thanks guys!!

Just tried it funny at night turning landing lights on bleeds thru the floor... This is really well done guys kudos!  Since having issues let the AI fly it and does a decent job surprisingly. Flight model is SO much improved.

Wish could could figure my trim issue out (requires full UP and barely gets off the ground with all planes). A/P clicks off immediately after turning it on with all planes also. AI overspeeds constantly in cruise with throttles @ 100% won't back them off until below 10k... Wish I knew what was causing all this?!

Tried deleting the community folder but windows won't allow it? Weird.



Does anyone have problems downloading from the link?



Edited October 10, 20205 yr by tangerine

Thank you

Awesome, I love the FMS text progress info!!!

One issue I have found is the elevator trim display on the MFD is backwards (moving trim up shows it moving towards "dn" in the display).

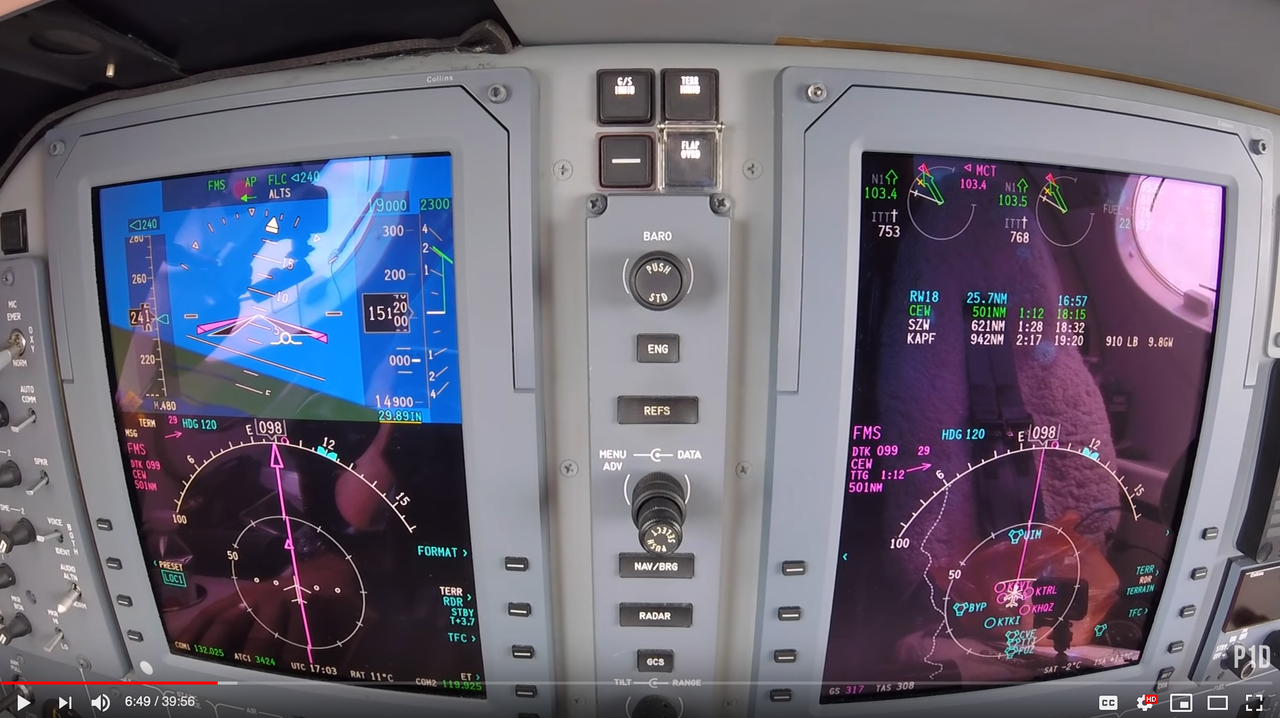

The Collins Proline in this CJ4 is almost identical to the one in Premier1 Driver's (youtube channel) Premier 1A.  He uses a "LOC1" preset view on the PFD which is nice in that it shows a very close view of how close you are on course.  I haven't been able to find that, is it hidden in there somewhere or is that something that could be added?



3 hours ago, FNAL said:

• Added gear drag (Was non-existent before)

Just a little bug... 😆

Greetings. Great job on this. Really enjoying it.

You guys have probably noticed this but with anti-icing selected on the aircraft still picks up ice. Just wondering if down the road that might be on the list to address......

Also, I am so far unable to get the display bearing pointers to work for navaids. Has anyone figured that out yet. When I turn them on in the menu nothing appears. Thanks.

Icing in MSFS is so over the top that it is ridiculous.  We haven't changed anything in that regard but it'll be on our list.  Bearing Pointers are also on our list but not implemented yet.

34 minutes ago, N7470 said:

One issue I have found is the elevator trim display on the MFD is backwards (moving trim up shows it moving towards "dn" in the display).

The Collins Proline in this CJ4 is almost identical to the one in Premier1 Driver's (youtube channel) Premier 1A.  He uses a "LOC1" preset view on the PFD which is nice in that it shows a very close view of how close you are on course.  I haven't been able to find that, is it hidden in there somewhere or is that something that could be added?



I will look into the trim issue.  As far as that P1D pic, we don't have the course needle present for the ROSE or ARC pages yet, it's on our list.

Thank you!. I have downloaded mod and took it for a spin I don't see ITT temperature move at all. Also no fuel flow (I did not programmed FMC route just initi and take off pages)

17 minutes ago, sd_flyer said:

Thank you!. I have downloaded mod and took it for a spin I don't see ITT temperature move at all. Also no fuel flow (I did not programmed FMC route just initi and take off pages)

Hmm, I think that is a bug.  I wouldn't trust the fuel readout from the SYS page buttons at this time.  The SYS readout on the UPR MENU should be correct.



I think ITT is bugged, I'd like to fix it in the future.

Edited October 10, 20205 yr by FNAL

1 minute ago, FNAL said:

Hmm, I think that is a bug.  I wouldn't trust the fuel readout from the SYS page buttons at this time.  The SYS readout on the UPR MENU should be correct

Yes thank you! Also ITT does move a little  bit when I reduce N1

18 hours ago, sd_flyer said:

Yes thank you! Also ITT does move a little  bit when I reduce N1

Asobo bug.  Jet engine simulation is ...

Edited October 10, 20205 yr by n4gix
Removed masked profanity. Don't do this again!

Great mod thank you, took it for a quick spin in sunset KGJT-KASE-KHDN.  Any good RW pitch/power gouge for the CJ4? Pitch/power for a normal 3deg descent path w/ flaps full/GD?

Thanks,

Marc
