What SSAA does is render the 3D image at a higher resolution and then downscale it to your output resolution. Resolution scaling and DSR from the NVIDIA Control Panel are effectively the same thing, but you get finer control with the resolution scaling slider.

It is important to mention though that all these methods are the same as OGSSAA, which is a brute-force approach. The older RGSSAA and SGSSAA yielded much higher image quality, but stopped working since DirectX 10.

So to be clear what res is +200 making a 4K screen?

1 minute ago, Nyxx said:

So to be clear what res is +200 making a 4K screen?

What do you mean?

Just now, Nyxx said:

So to be clear what res is +200 making a 4K screen?

If your output resolution is 3840x2160, setting the resolution scaling to 200 means that the image is rendered at 7680x4320.

It make the GPU scale the resolution up, so like DRS, I could scale my screen to 4k

I really hope Asobo will implement DLSS into MSFS in the future.

So +200 on 4K is up scaling to 8K like I said?

So to run P3D at 8k you would have to use DRS?

4 minutes ago, captain420 said:

I really hope Asobo will implement DLSS into MSFS in the future.

It is coming with the DirectX 12 update according to the latest developer Q&A.

3 minutes ago, Nyxx said:

So +200 on 4K is up scaling to 8K like I said?

So to run P3D at 8k you would have to use DRS?

If Prepar3D goes up to 8x SSAA and there's no resolution scaling slider, then DSR is the only way, with the 4.00x setting.

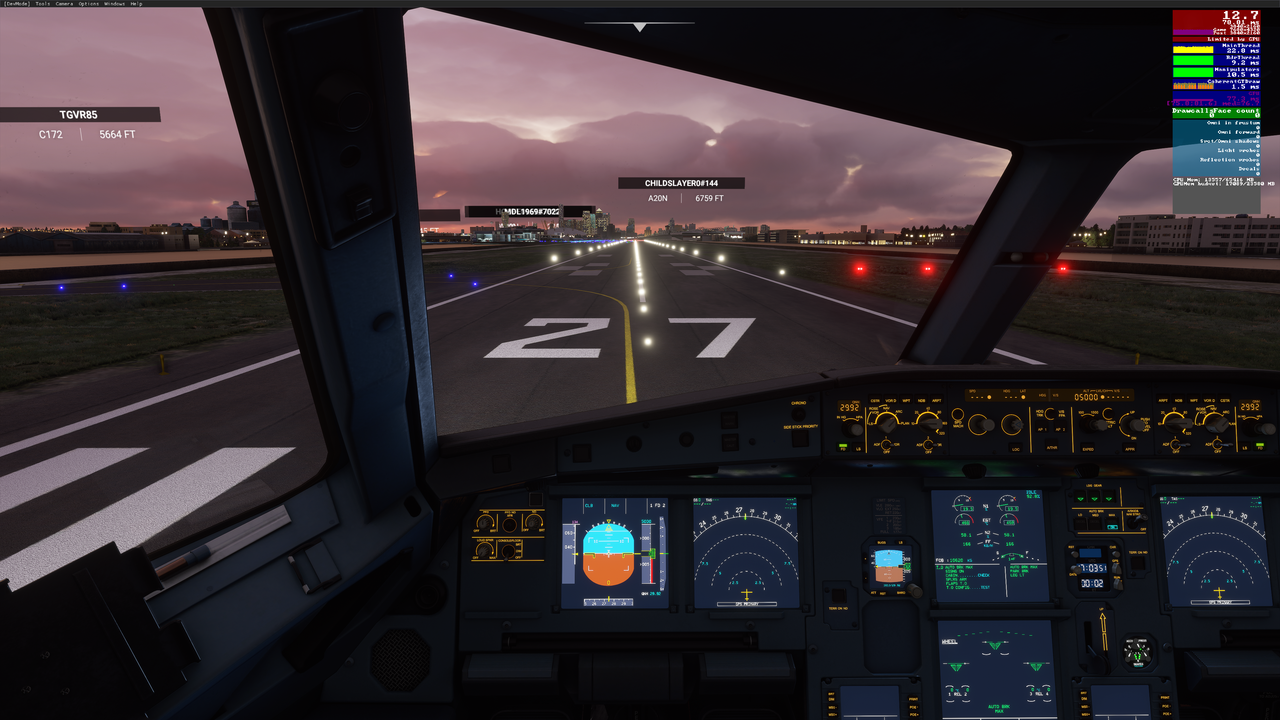

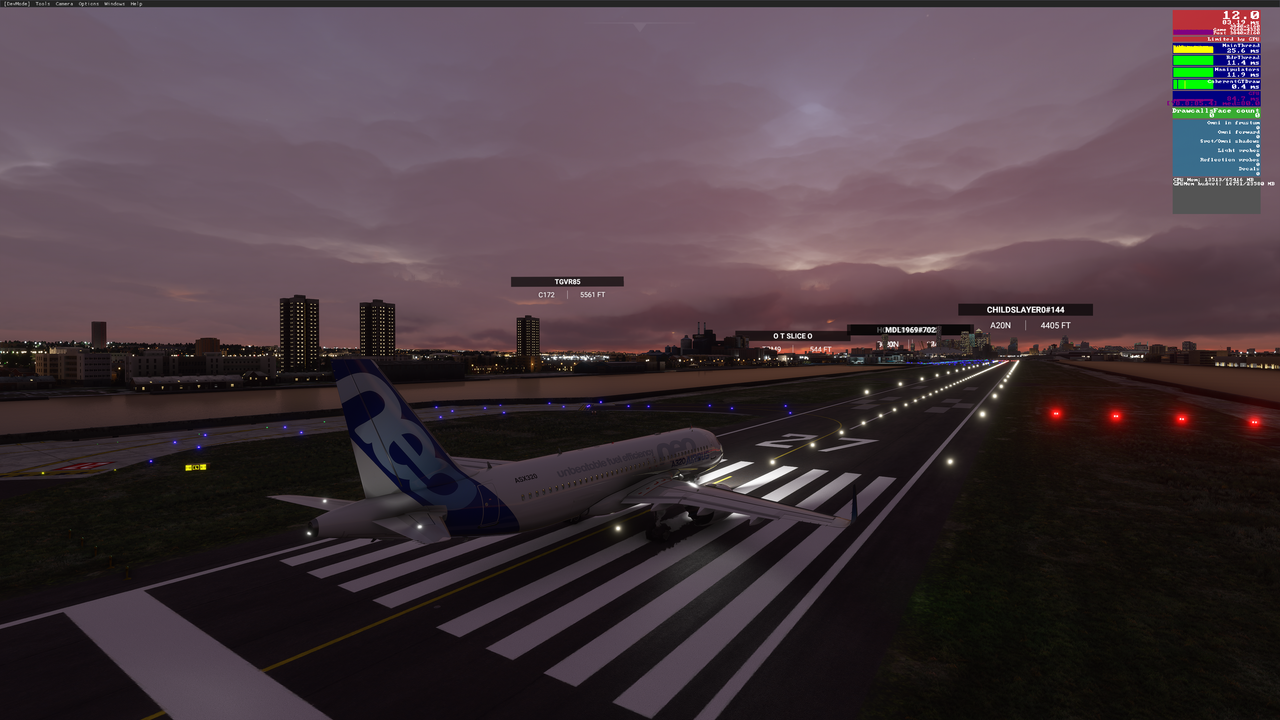

Here's what 4k Ultra Preset with Render Scaling set to 200 looks like. Performance drop is significant. Brought me down to about 12fps, but looks amazing. This is with the Flybywire A320 mod at night with OrbX EGLC, OrbX London City Landmarks. Although it looks very nice, I think I'll just leave mines at 100-130 depending where I fly. I'd like to have my fps at 30 fps at least.

Edited October 17, 20205 yr by captain420

P3D does have 8xSSAA put no scaling slider.

So as you point out, 4K set to +200 render scale might add SSAA but up scaling it up to 8k also at the same time.
No wonder it kills FPS and VRAM.

12 minutes ago, captain420 said:

Here's what 4k Ultra Preset with Render Scaling set to 200 looks like. Performance drop is significant. Brought me down to about 12fps, but looks amazing.

17GB VRAM, no surprise, what’s that same seen like at 4K?

With you amazing PC, it shows imo that on a 4K screen +200 is pointless at this current level of hardware.

Edited October 17, 20205 yr by Nyxx

It would be interesting to see Rob’s test he did but with P3D on 8XSSAA and DRS scaling to make it run at 8k.

1 hour ago, captain420 said:

Here's what 4k Ultra Preset with Render Scaling set to 200 looks like. Performance drop is significant. Brought me down to about 12fps, but looks amazing.

Thanks for the screens. Since you're rendering at 8K the performance drop was only to be expected, but just as I guessed, the output is very sharp and it brings out some aliasing that should be avoided if you look closely. However, this could also be caused by the sharpening filter which was boosted with the 1.9.3.0 patch, evident by some of the halo ringing. If you could try again by turning the filter off from the UserCfg.opt file, the output would likely be smoother but retain enough clarity due to the sheer amount of pixels.

19 minutes ago, ChaoticBeauty said:

If you could try again by turning the filter off from the UserCfg.opt file, the output would likely be smoother but retain enough clarity due to the sheer amount of pixels.

What filter are you referring to? I will give it a try. I have lowered my rendering scale back to 100% because I get better performance this way.

Glad I waited





https://www.tweaktown.com/news/75679/nvidia-will-shift-over-to-tsmc-for-new-7nm-ampere-gpus-in-2021/index.html?utm_source=dlvr.it&utm_medium=facebook

Edited October 18, 20205 yr by hanhamreds
